Product Description

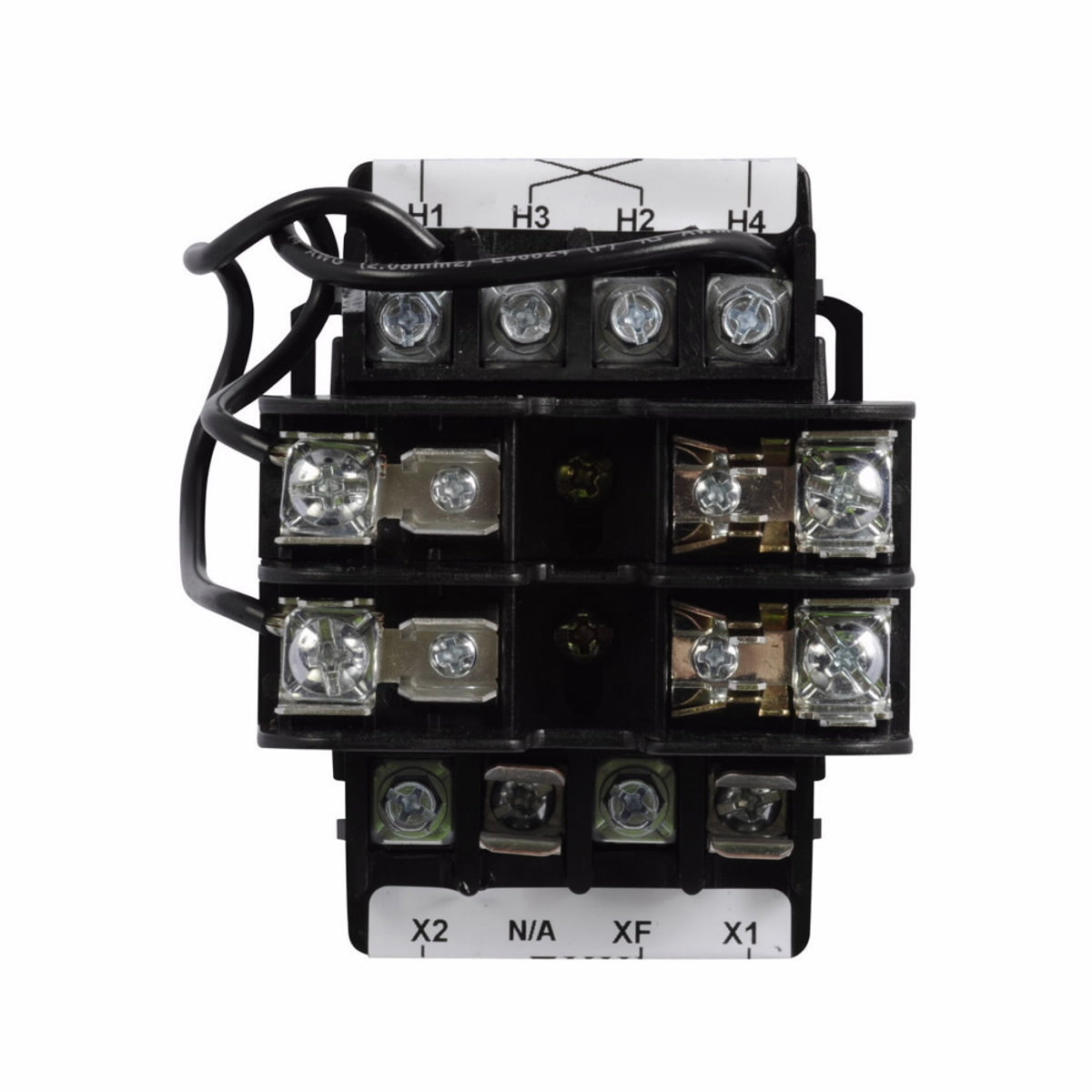

The Eaton industrial control transformer, model C0100E2AFB, provides reliable power for your control applications. Designed for both primary and secondary voltage configurations, it works efficiently across various voltage ratings including 240 x 480 volts and a secondary output of 120 volts. This transformer is ideal for machines and control devices that require consistent voltage control.
- Type MTE for industrial use
- 100 VA rating for dependable performance
- Includes copper windings for enhanced conductivity
Product Highlights
This transformer is designed to meet strict electrical standards, ensuring safe and reliable operation. It features encapsulated coils for protection against moisture and contaminants. The absence of primary taps simplifies installation while maintaining efficiency.
Product Information
Standard Information
-
Manufacturer: Eaton
-
Catalog Number: C0100E2AFB
-
Country of Origin: United States
Technical Specifications
-
Primary Voltage: 240 x 480V, 230 x 460V, 220 x 440V
-
Secondary Voltage: 120/115/110V
-
Power Rating: 100 VA
-
Temperature Rating: 55 degrees C
-
Weight: 7.9 lb
-
Dimensions: 3.386 in Length x 3.386 in Width x 4.35 in Height
-
Coil Material: Copper Windings
-
Phase: 1 ph
-
Insulation System: Class 105
-
Standards: CSA, UL Listed, RoHS Compliant
