Product Description

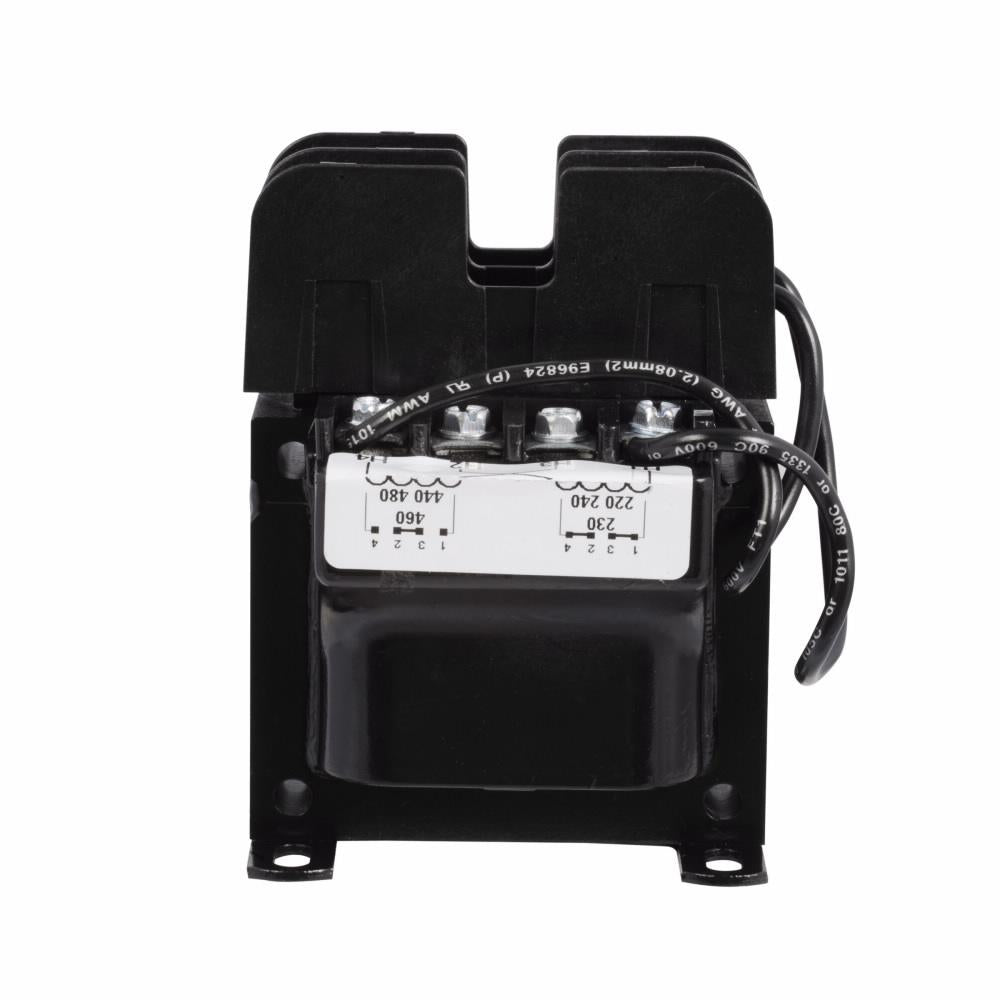

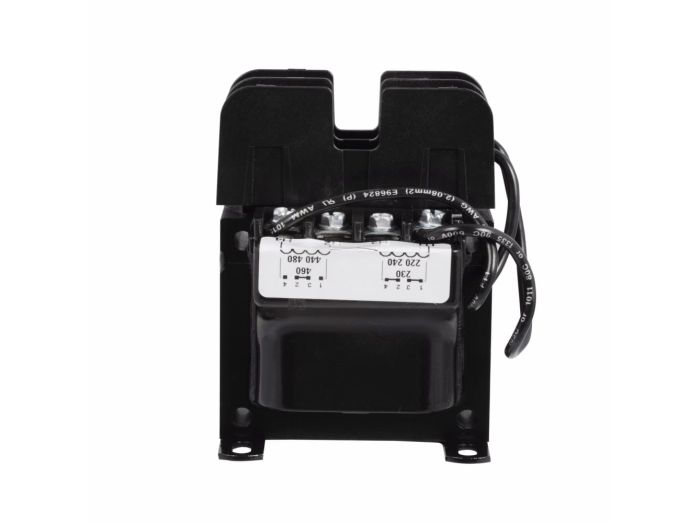

The EATON C0075E2AFB is an industrial control transformer that provides stepped-down voltages to machine tool control devices. Each unit passes rigid tests for turns ratio, insulation, continuity, and over potential. It is designed for loads requiring good regulation and meets ANSI/NEMA ST-1 requirements. Operates at 50/60 Hz.
- Molded-in terminals allow for maximum durability
- Copper magnet wire provides for high quality, efficient operation
- Epoxy encapsulated coils provide protection from moisture and contaminants
Product Highlights
This industrial control transformer is ideal for machine tool control and provides reliable, efficient power conversion in industrial settings.
Product Information
Standard Information
-
Brand: EATON
-
Manufacturer Part Number: C0075E2AFB
-
Country of Origin: USA
Technical Specifications
-
Connection Type: Copper Magnet Wire
-
Housing Material: Silicon Steel
-
Temperature Rating: 55 deg C
-
Type: Type MTE
-
Primary Voltage: 240/480/230/460/220/440 V
-
Secondary Voltage: 120/115/110 V
-
Power Rating: 75
-
Frequency Rating: 50/60 Hz
-
Phase: 1 ph
-
Product Name: Eaton Type MTE industrial control transformer
-
Catalog Number: C0075E2AFB
-
UPC: 786680420825
-
Product Length/Depth: 3.86 in
-
Product Height: 4.04 in
-
Product Width: 3 in
-
Compliances: RoHS Compliant
-
Certifications: UL Listed
-
CSA Certified: CSA Certified
-
cUL Certified: cUL Certified
-
Catalog Notes: Epoxy encapsulated, Laminations of high quality silicon steel to minimize core losses and optimize performance, 50/60Hz operation, 130
C insulation system standard, Molded-in terminals for maximum durability
-
Product Type: Industrial control transformer
-
Coil material: Copper windings
-
Design: MTE
-
Tap size: None
-
Temperature rise: 55 deg C
-
Special features: Primary fuse block
-
Volt Amps: 75
-
Insulation Class: Class A
-
Terminal Type: Screw, Standard
-
Fusing: 2-Pole Primary Rejection Type Fuse Block, Secondary Fuse Clips
-
Manufacturer: Eaton
-
Product Series: MTE
-
Family Series: Eaton Transformers, MTE Series
-
Description: Eaton Type MTE industrial control transformer, pv: 240 x 480v, 230 x 460v, 220 x 440v, taps: none, sv: 120/115/110v, cu magnet wire, 55
c, 75 va
-
Enclosed: No
-
Primary Fuseholder: Included
-
Secondary Fuseholder: Included
-

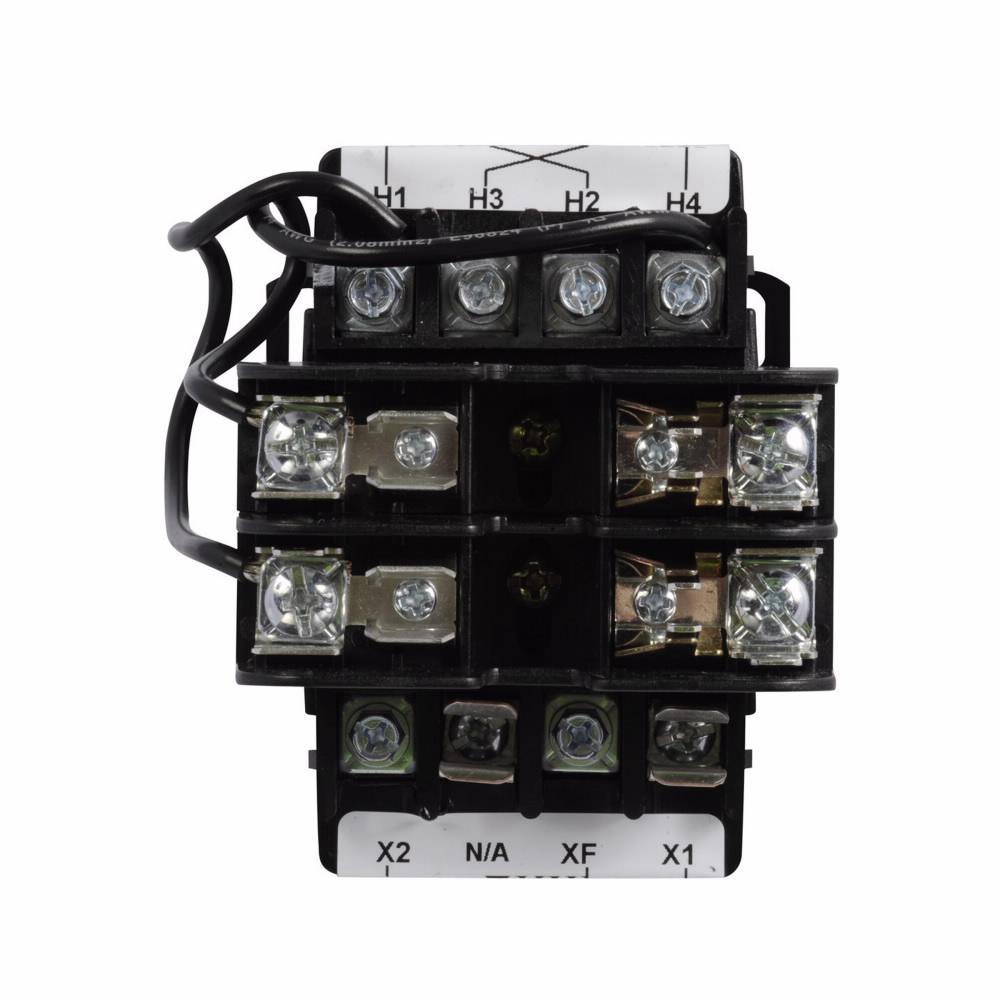

Termination: Integrally Molded Terminal Blocks
-
Cover Included: No
-
Temperature Rise (F): 131
F
-
Approvals: CSA, UL
-
Net Weight: 3.5 lbs
-
Gross Weight: 3.5 lbs
-
UNSPSC: 39121026
-
Application: Industrial, Motor and Power Control Equipment Applications
