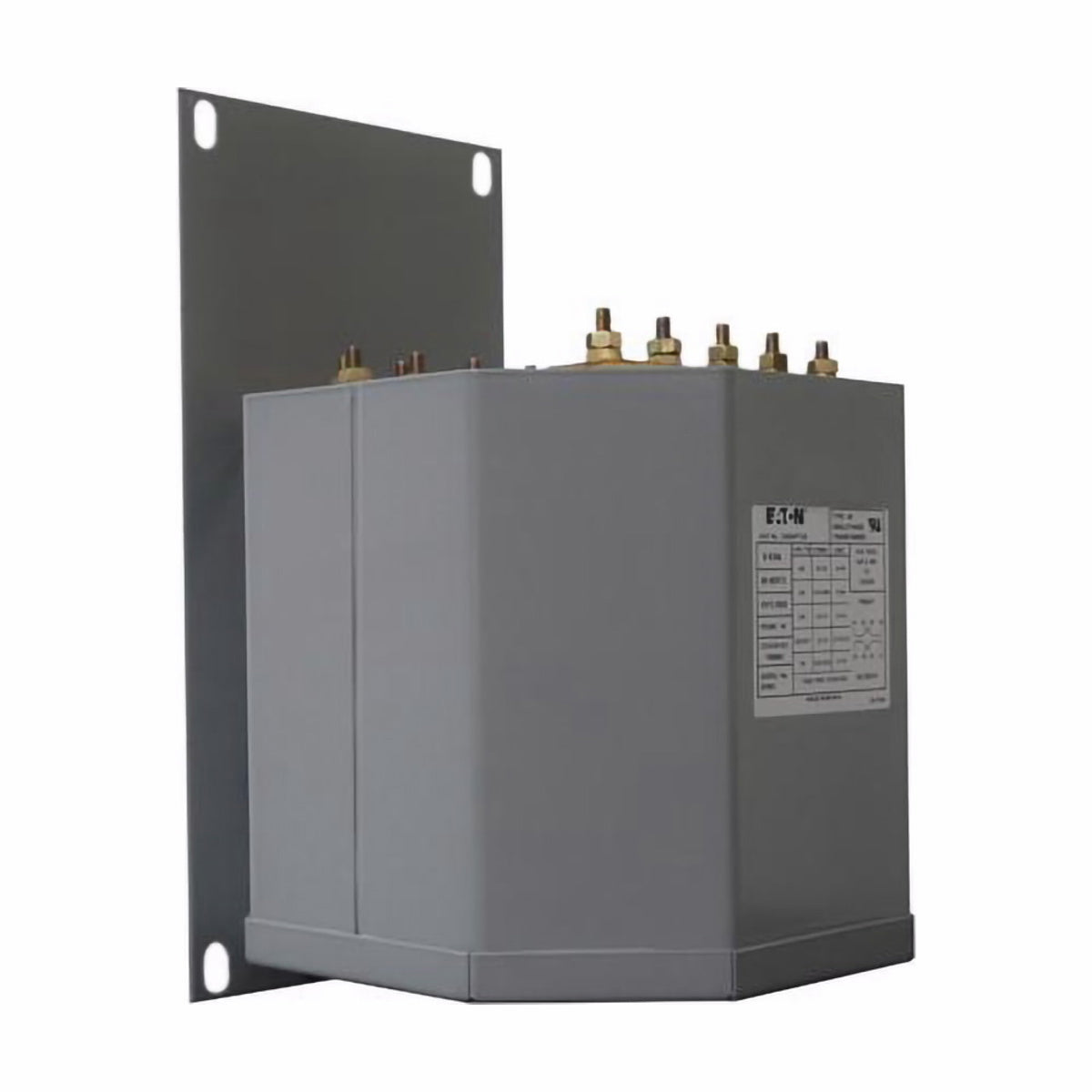

Eaton C0075E2A Type MTE Control Transformer 240/480 75 VA

Product Description

The Eaton C0075E2A is a type MTE industrial control transformer designed to provide reliable voltage reduction for machine tool control applications. This transformer operates with a primary voltage of 240 x 480 volts and offers a secondary voltage of 120 volts. The device supports a power rating of seventy-five VA and is built with copper windings, ensuring efficient and high-quality performance.

• Primary Voltage: 240/480, 230/460, 220/440 V
• Secondary Voltage: 120/115/110 V
• Temperature Rating: 55 degrees C

Product Highlights

This transformer is suitable for industrial settings where voltage stepping down is required, isolating control circuits from power circuits for enhanced safety.

Product Information

Standard Information

• Manufacturer: Eaton
• Catalog Number: C0075E2A

Technical Specifications

• Power Rating: 75 VA
• Frequency Rating: 50/60 Hz
• Connection Type: Copper Magnet Wire
• Dimensions: 3.504 in L x 2.992 in W x 2.559 in H
• UPC: 786680422546
• GTIN: 00786680422546
• Standards/Approvals: UL Listed, CSA Certified, RoHS Compliant
• Application: Used to provide stepped-down voltages to machine tool control devices
• Made in USA: Yes
