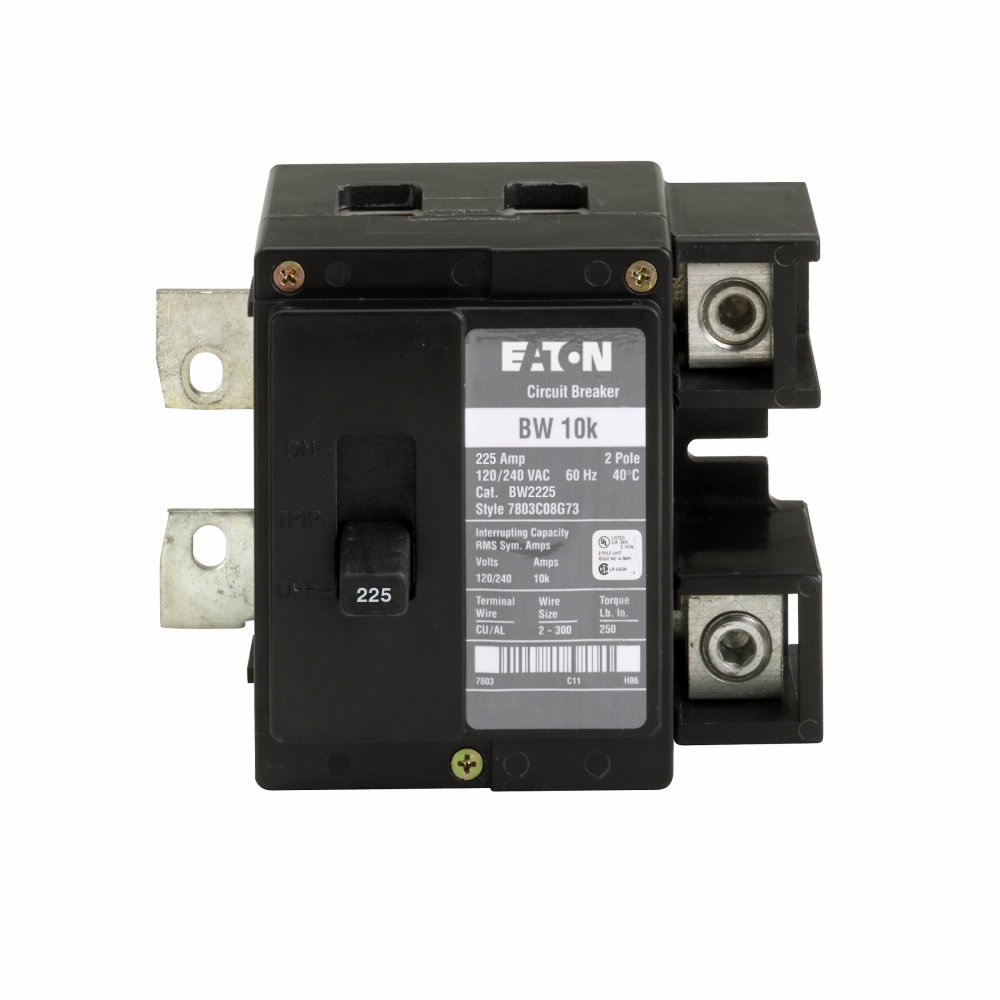

Eaton BW2225 Type BW Circuit Breaker 225 A 10 kAIC 2 Pole 120/240 V

Product Description

The Eaton BW2225 Type BW Circuit Breaker is a plug-on circuit breaker designed to manage electrical load safely. This model is rated at two hundred twenty-five amps and operates at a voltage of one hundred twenty to two hundred forty volts. With a ten kiloamp interrupt capacity, it is suited for residential and light commercial applications.

• Plug-on circuit breaker with easy installation
• Amperage rating: 225 A
• Two-pole design for efficient power distribution

Product Highlights

This circuit breaker is ideal for main service panels, making it suitable for use as a disconnect on residences or commercial buildings.

Product Information

Standard Information

• Manufacturer: Eaton
• Catalog Number: BW2225

Technical Specifications

• Voltage Rating: 120/240 V
• Number of Poles: 2
• Interrupt Rating: 10 kAIC
• Connection Type: Plug-on
• Wire Size: 2 AWG to 300 kcmil
• Dimensions: 5.25 in W x 6.25 in H x 5 in D
• Weight: 2.75 lb
• Standards: UL 489
