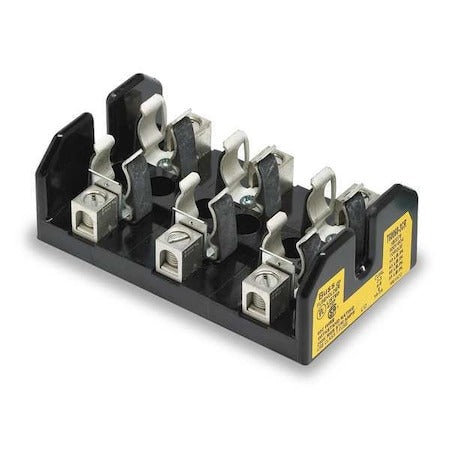

Eaton Bussmann T60060-3CR Industrial Fuse Block 60A (3 Pole)

Product Description

Eaton Bussmann T60060-3CR is an industrial three-pole Class T fuse block rated 31 to 60 A and 600 V AC/DC. It accepts 1 9/16 in L x 13/16 in dia Class T fuses and features a nonindicating, nonrejection open design with bolt-down mounting. The glass polyester body and box lug connector accommodate wire sizes 14 to 2 AWG and provide a 200 kA short-circuit interrupt rating; CSA and UL listed.

• Electrical rating: 31–60 A, 600 V AC/DC with 200 kA short-circuit rating
• Fits Class T fuses 1 9/16 in L x 13/16 in dia; compatible with A6T, JJS, JLLS, LPT, Series T
• Three-pole open-design, bolt-down mounting with box lug connector; wire range 14 to 2 AWG

Product Highlights

Three-pole Class T fuse block, 31–60 A, 600 V AC/DC, 200 kA interrupt

Product Information

Standard Information

• Brand: EATON BUSSMANN
• Manufacturer Part Number: T60060-3CR
• Country of Origin: Mexico

Technical Specifications

• Brand: Eaton Bussmann
• Manufacturer Part Number: T60060-3CR
• Model: T60060-3CR
• Product Type: Industrial fuse block / Modular fuse block
• Fuse Type: Class T
• Ampere Rating: 31 to 60 A
• Voltage Rating: 600 V AC/DC
• Number of Poles: 3
• For Fuse Size: 1 9/16 in L x 13/16 in dia
• Compatible Fuse Series: A6T, JJS, JLLS, LPT, Series T
• Wire Range: 14 to 2 AWG
• Acceptable Conductor Type: Copper or aluminum conductors
• Mounting Type: Bolt-down
• Body Material: Glass polyester
• Connector Type: Box lug
• Fuse Block Design: Open, nonrejection
• Visual Indication: Nonindicating
• Short-Circuit Rating: 200 kA
• Standards / Certifications: CSA certified; UL listed; RoHS compliant; CE marked
• Features: Space saver; CR special feature
• Dimensions (L x W x H): 2.94 in x 4.86 in x 1.75 in
• Weight: 0.55 lb
• Country of Origin: Mexico
• UPC: 051712148139
