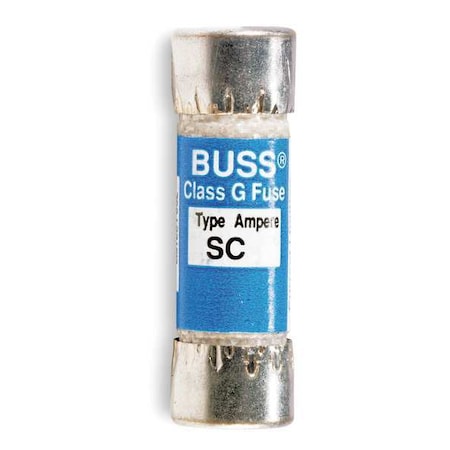

Eaton Bussmann SC-3 Fuse PRP GENL 3A 600VAC 170VDC G CRTG

Product Description

The Eaton Bussmann SC-3 is a current limiting, fast acting, time delay general purpose fuse. Rated at 3 A, 600 VAC, and 170 VDC with a 10/100 kA interrupt rating and a G Class cartridge body. This fuse provides reliable protection for a variety of applications.

• Current Limiting
• Fast Acting
• Time Delay
• General Purpose

Product Highlights

The Eaton Bussmann SC-3 fuse offers current limiting, fast acting, and time delay functionality in a general purpose design.

Product Information

Standard Information

• Brand: EATON BUSSMANN
• Manufacturer Part Number: SC-3
• Country of Origin: Mexico

Technical Specifications

• Amperage: 3 A
• Voltage AC: 600 VAC
• Voltage DC: 170 VDC
• Interrupt Rating: 10/100 kA
• Class: G Class
• Body Style: Cartridge
• Speed: Fast Acting
• Length: 1-5/16"
• Series: SC
• Element: Single
• Diameter: 7/16"
• Standards: CE, CSA Guide 1422-01, UL 248-5 Guide JDDZ
• Body Material: Melamine
• Fuse Holder Code: AG
• Fuse Voltage Rating: 600VAC/170VDC
• Fits Fuse Block Style: Rejection
• Functionally Equal To: Littelfuse SLC, Mersen/Ferraz Shawmut AG
• Fuse Interrupt Rating: 100kA at 600VAC, 10kA at 170VDC
• Rejection / Nonrejection: Rejection
• Indicating / Nonindicating: Nonindicating
• Equivalent Brand and Series: Bussmann SC, Littelfuse SLC, Mersen AG
• Compatible Fuse Block Series: BG, G, HPS
• Green Environmental Attribute: RoHS 2011/65/EU Compliant
• Product Type: Fuse
• Amperage Rating: 3 A
• Voltage rating: 600 Vac, 170 Vdc
• Packaging type: Standard
• Connection: Ferrule end x ferrule end
• Fuse indicator: Non-indicating
• Special features: Ferrule design, Type P
