EATON BUSSMANN S505-5-R Eaton Bussmann Series S505-5-R 5A 250 VAC

Product Description

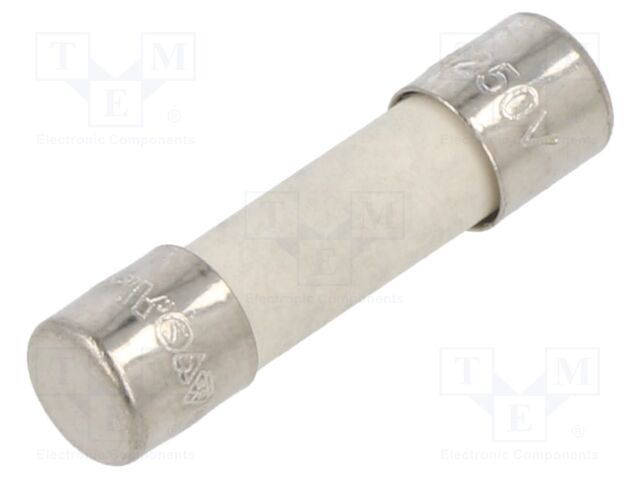

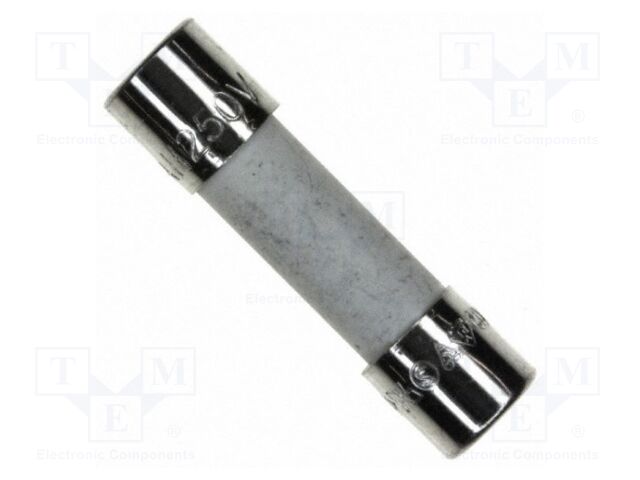

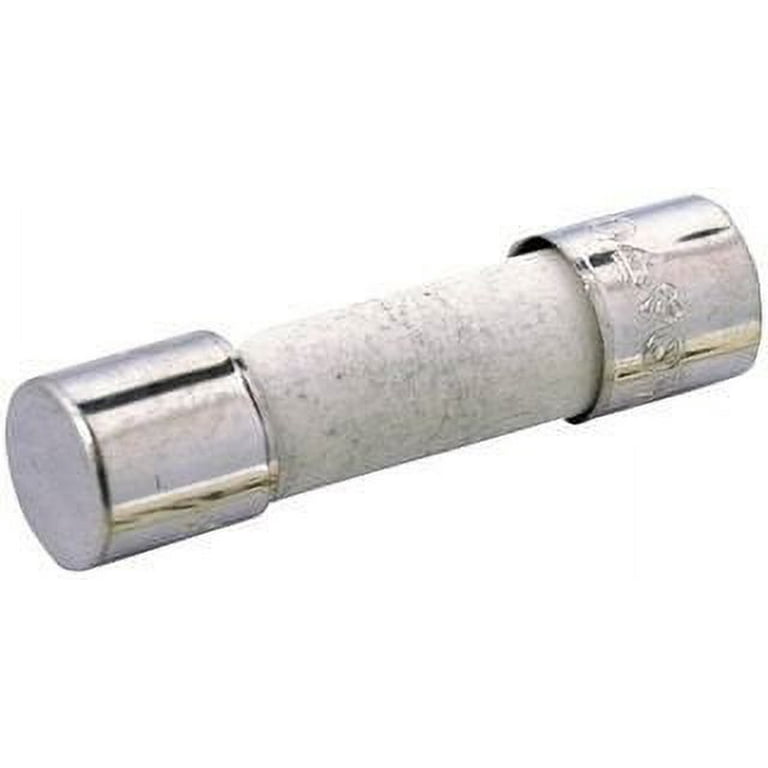

The Eaton Bussmann Series S505-5-R is a cylindrical ceramic fuse designed for electronic circuits, with a high-breaking capacity and a time-delay feature. This fuse is crucial for protecting electronic components from overcurrent situations. The dimensions of the fuse are five point two millimeters in diameter and twenty millimeters in length. It is a non-indicating and non-rejection type fuse, equipped with ferrule end connections, making it easy to install in compatible holders.

• Amperage Rating: 5A
• Voltage Rating: 250 VAC
• Interrupt Rating: 1.5 kA at 250 VAC

Product Highlights

This fuse is RoHS compliant and meets multiple international standards including IEC. It is ideal for applications that require reliable overcurrent protection, ensuring the safety and longevity of electronic devices.

Product Information

Standard Information

• Brand: Eaton Bussmann Series
• Type: High Breaking, Time Delay

Technical Specifications

• Amperage Rating: 5 A
• Voltage Rating: 250 VAC
• Interrupt Rating: 1.5 kA
• Frequency Rating: 50 Hz
• Terminal Type: Ferrule
• Mounting Type: Holder
• Body Type: Cylindrical
• Material: Ceramic
