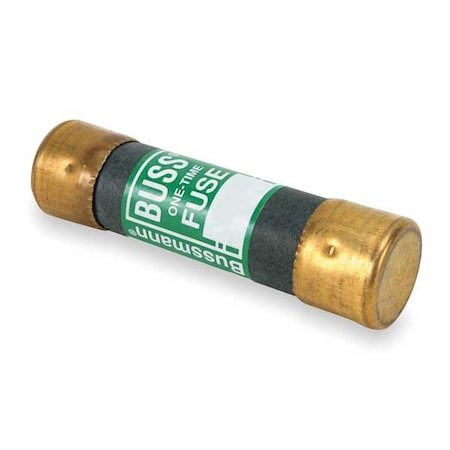

Eaton Bussmann NON-45 Fuse One Time Non-Indicating 45A 50KA

Product Description

The Eaton Bussmann NON-45 is a non-current limiting, one-time fuse with a cylindrical body. This non-indicating fuse is rated for 45A, 250 VAC, and 125 VDC with a 50kA interrupt rating. It is suitable for protecting motors and branch circuits in commercial, industrial, and residential applications.

• Non-Current Limiting
• One Time Fuse
• Cylindrical Body

Product Highlights

The Eaton Bussmann NON-45 fuse provides reliable, one-time overcurrent protection for a variety of applications.

Product Information

Standard Information

• Brand: EATON BUSSMANN
• Manufacturer Part Number: NON-45
• Country of Origin: Mexico

Technical Specifications

• Amperage: 45 A
• Voltage AC: 250 VAC
• Voltage DC: 125 VDC
• Interrupt Rating: 50 kA
• Class: H/K5
• Body Style: Cylindrical Body
• Fuse Type: One Time
• Indicating/Non-Indicating: Non-Indicating
• Current Limiting/Non-Current Limiting: Non-Current Limiting
• Speed: Non-Current Limiting
• Length: 0.81 in
• Fuse Size: 0.81 in L x 3 in W x 3 in H
• Standards: CE Marked
• AC Voltage Rating: 250V AC
• DC Voltage Rating: 125V DC
• Visual Indication: Non Indicating
• Series: NON
• Element: Single
• Diameter: 13/16"
• Fuse Amps: 45A
• Renewable: No
• Body Material: Melamine
• Equivalent Series: NLN, NON, OT
• Fuse Voltage Rating: 250VAC/125VDC
• Fits Fuse Block Style: Nonrejection
• Functionally Equal To: Mersen/Ferraz Shawmut OT
• Rejection / Nonrejection: Nonrejection
• Renewable / Nonrenewable: Nonrenewable
• Equivalent Brand and Series: Bussmann NON, Littelfuse NLN, Mersen OT
• Compatible Fuse Block Series: 2HKRFB, H250, HM250, HM600
• Voltage: 250V
• Application: General Purpose
• Product Name: Eaton Bussmann series NON fuse
• Catalog Number: NON-45
• UPC: 051712101622
• Product Length/Depth: 0.81 in
• Product Height: 3 in
• Product Width: 3 in
• Amperage Rating: 45 A
• Interrupt rating: 50 kAIC at 125 Vdc 50 kAIC at 250 Vac
• Voltage rating: 250 Vac, 125 Vdc
• Packaging type: Standard
• Connection: Ferrule end x ferrule end
• Fuse indicator: Non-indicating
• Special features: Non current limiting
• Material: Cartridge
• Specification met: CSA, UL, iec
• Mounting type: Surface Mount
• Global Trade Identification Number: 00051712111072
• Part Number: BP/NON-45
• Product Dimensions: 9.65 x 5.08 x 16.51 cm
• Item model number: BP/NON-45
• Size: Pack of 1
• Amperage Capacity: 45 Amps
• Item Package Quantity: 1
• Certification: CSA, UL, iec
• Usage: electrical
• Included Components: Fuse cartridge
• Terminal Type: FERRULE
• Interrupting Rating: 50000 AMPERE (SYMMETRICAL), 10000 AMPERE (DC)
• Additional Information: NON CURRENT LIMITING
• Current Rating: 45 AMPERE
• Mfr Fullname: COOPER BUSSMANN
• Characteristics: ONE TIME
• Type: CLASS K5
• Mfrcode: BUSS
• Mfr UNSPSC: 39121627
• Approval: UL 248-9, CE
