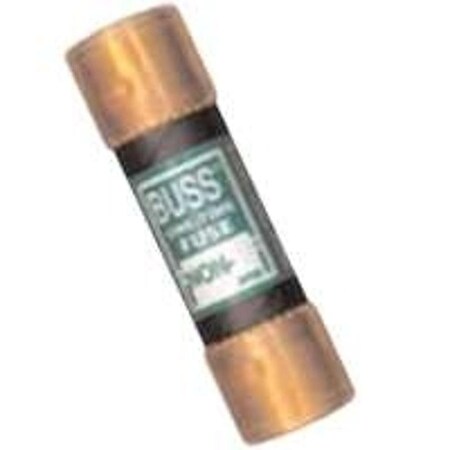

Eaton Bussmann NON-35 Fuse One Time Non-Indicating 35A 50KA

Product Description

The EATON BUSSMANN NON-35 is a non-current limiting, one-time fuse with a 35A amperage rating and a 50kA interrupt rating. This fuse is designed for 250 VAC and 125 VDC applications and features a cylindrical body style. It protects motors and branch circuits where higher amps or volt ratings are required.

• Non-Current Limiting
• One Time Fuse
• Non-Indicating

Product Highlights

The EATON BUSSMANN NON-35 fuse provides reliable, one-time overcurrent protection for a variety of applications. It is suitable for use in fuse panels, appliances, and branch circuits.

Product Information

Standard Information

• Brand: EATON BUSSMANN
• Manufacturer Part Number: NON-35
• Country of Origin: Mexico

Technical Specifications

• Amperage: 35 A
• Voltage AC: 250 VAC
• Voltage DC: 125 VDC
• Interrupt Rating: 50 kA
• Class: H/K5
• Body Style: Cylindrical
• Body Material: Melamine
• Fuse Type: Cartridge Fuse
• Speed: Fast Acting
• Length: 3"
• Series: NON
• Element: Single
• Diameter: 13/16"
• Renewable: No
• Standards: CE, UL Listed, Guide JDDZ, File E4274, STD 248-9, CSA Certified Class 1421-01, File 53787
• Equivalent Series: NLN, NON, OT
• Visual Indication: Non Indicating
• Fuse Voltage Rating: 250VAC/125VDC
• Fits Fuse Block Style: Nonrejection
• Functionally Equal To: Mersen/Ferraz Shawmut OT
• Fuse Interrupt Rating: 50kA at 250VAC, 50kA at 125VDC
• Rejection / Nonrejection: Nonrejection
• Renewable / Nonrenewable: Nonrenewable
• Indicating / Nonindicating: Nonindicating
• Equivalent Brand and Series: Bussmann NON, Littelfuse NLN, Mersen OT
• Compatible Fuse Block Series: 2HKRFB, H250, HM250, HM600
• Connection Type: Ferrule End x Ferrule End
• Amperage Rating: 35 A
• Voltage rating: 250 Vac, 125 Vdc
• Connection: Ferrule end x ferrule end
• Fuse indicator: Non-indicating
• Special Features: Non current limiting
• Manufacturer Part Number: NON-35
• Type: Fuse
• Application: Light duty circuit locations
