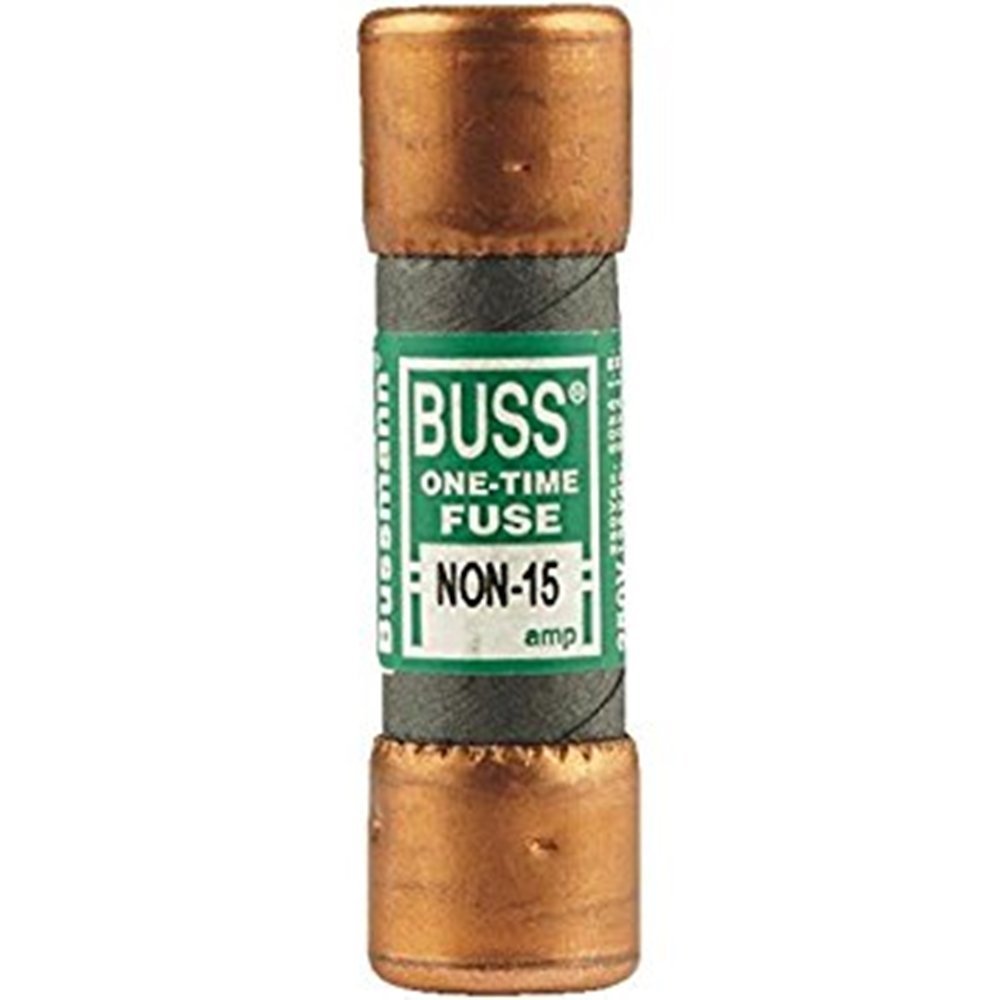

Eaton Bussmann NON-15 Fuse 15A 250 VAC/125 VDC 50KAIC H CYL

Product Description

The Eaton Bussmann NON-15 is a one-time general purpose, fast-acting, non-current limiting fuse. This 15A fuse is designed for 250 VAC/125 VDC applications with a 50 kAIC interrupt rating and a cylindrical body. It is suitable for protecting motors and branch circuits where higher amps or volt ratings are required.

• One-Time Fuse
• General Purpose
• Fast Acting

Product Highlights

The Eaton Bussmann NON-15 fuse provides reliable, fast-acting protection for a variety of general purpose applications.

Product Information

Standard Information

• Brand: EATON BUSSMANN
• Manufacturer Part Number: NON-15
• Country of Origin: Mexico

Technical Specifications

• Amperage: 15 A
• Voltage: 250 VAC/125 VDC
• Interrupt Rating: 50 kAIC
• Class: H
• Body Style: Cylindrical
• Product Range: NON Series
• Fuse Current: 15A
• Fuse Size Metric: 14.3mm x 50.8mm
• Fuse Size Imperial: 0.56" x 2"
• Blow Characteristic: One Time
• Length: 50.8mm
• RoHS Compliant: No
• Speed: Fast Acting
• Series: NON
• Element: Single
• Diameter: 9/16"
• Fuse Amps: 15A
• Renewable: No
• Standards: CE, UL Listed, Guide JDDZ, File E4274, STD 248-9, CSA Certified Class 1421-01, File 53787
• Fuse Speed: Fast Acting
• Body Material: Melamine
• AC Voltage Rating: 250V AC
• DC Voltage Rating: 125V DC
• Equivalent Series: NLN, NON, OT
• Visual Indication: Non Indicating
• Fuse Voltage Rating: 250VAC/125VDC
• Fits Fuse Block Style: Nonrejection
• Functionally Equal To: Mersen/Ferraz Shawmut OT
• Fuse Interrupt Rating: 50kA at 250VAC, 50kA at 125VDC
• Rejection / Nonrejection: Nonrejection
• Renewable / Nonrenewable: Nonrenewable
• Indicating / Nonindicating: Nonindicating
• Equivalent Brand and Series: Bussmann NON, Littelfuse NLN, Mersen OT
• Compatible Fuse Block Series: 2HKRFB, H250, HM250, HM600
• Connection Type: Ferrule End x Ferrule End
• Amperage Rating: 15 A
• Product Length/Depth: 2 in
• Product Height: 0.56 in
• Product Width: 0.56 in
• Compliances: CE Marked
• Product Type: Fuse
• Packaging type: Standard
• Connection: Ferrule end x ferrule end
• Fuse indicator: Non-indicating
• Quantity: 10
• Special features: Non current limiting
• Body Size: 0.56 in Dia x 2 in L
• Body Type: Cylindrical
• Material: Melamine
• Mounting Type: Holder
• Rejection/Non-Rejection: Rejection
• Terminal Type: Ferrule End
• Type: One-Time General Purpose Fast Acting Non-Current Limiting
• Voltage Rating: 250 VAC/125 VDC
• Application: Light duty circuit locations
• Brand: Bussmann by Eaton
• Current Rating: 15 A
• Dimensions: 0.56 in H X 0.56 in W X 2.00 in L
• Indicator: Non-indicating
• Manufacturer Part Number: NON-15
• Numeric ID: 2510416
• Primary Type: Single Use Fuses
• Shape: RECTANGULAR
• Termination: Cartridge
• UPC Code: 051712101561
