EATON BUSSMANN MDL-5-R Time Delay Fuse, 5A, 250V

Product Description

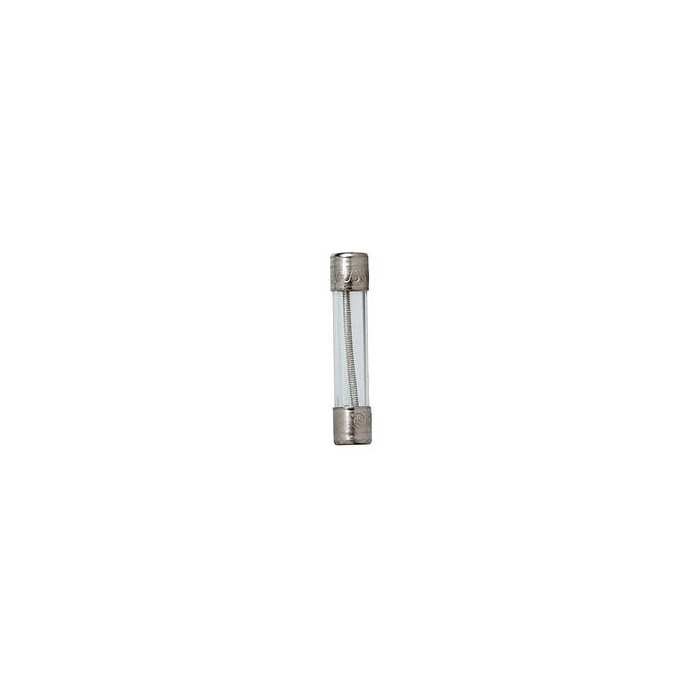

The Eaton Bussmann MDL-5-R is a time-delay fuse suitable for use in electronic circuits and applications such as distribution switchboards, power panelboards, and machinery disconnects. This fuse is rated for five amperes with a voltage capacity of two hundred fifty volts AC. It features a glass tube construction with nickel-plated bronze end caps, ensuring durability. The fuse meets both UL and CSA standards for safety and reliability.

• Time-delay fuse designed for various electronic applications
• Interrupting rating of two hundred AIC at two hundred fifty VAC
• Physical dimensions: one-fourth inch by one and a quarter inches

Product Highlights

This fuse is ideal for protecting circuits from overloads and short circuits, allowing for a delay in the response to temporarily high currents.

Product Information

Standard Information

• Brand: Eaton Bussmann
• MPN: MDL-5-R

Technical Specifications

• Series: MDL
• UPC: 05171265311
• GTIN: 00051712652308
• Amperage Rating: 5A
• Voltage Rating: 250V AC, 32V DC
• Fuse Interrupt Rating: 10 kAIC at 125V AC
• Interrupting Rating @ 250 VAC: 200 AIC
• Physical Size: 1/4 x 1 1/4
• Length: 1.25 inches
• Width: 0.25 inches
• Height: 0.25 inches
• Material: Glass Tube
• Application: Electronic circuits
• Response Time: 60 min at 135%, 120 sec at 200%, 5 sec at 200%
• Shape: Rectangular
• ECCN: EAR99
• Country of Origin: TW - Taiwan
• UNSPSC: 39121607
• Use With: Out axial leads
