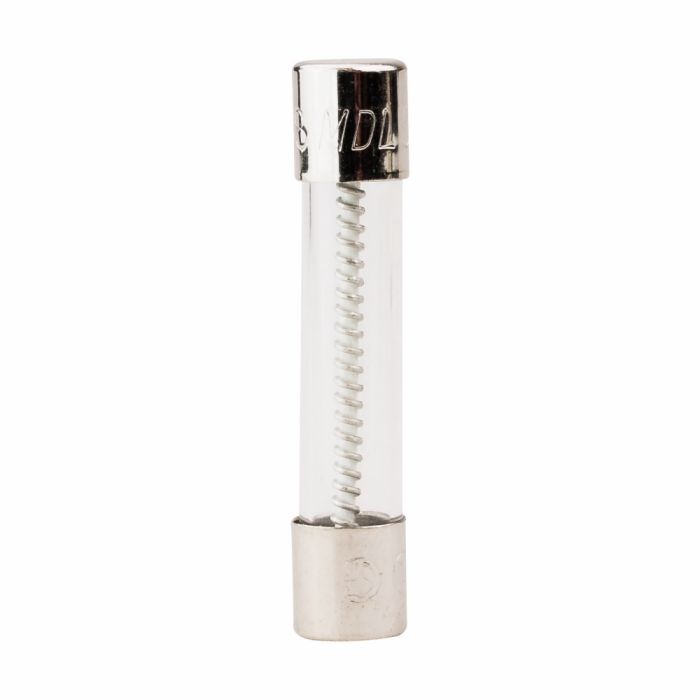

Eaton Bussmann MDL-5-R Fuse TD Non-Indicating Non-Rejection 5A

Product Description

The Eaton Bussmann MDL-5-R is a time delay fuse with nickel-plated brass end caps. This 5A, 250 VAC fuse features a 200 A/10 kA interrupt rating and a cylindrical body. It is non-indicating and non-rejection. The time delay allows close sizing on inductive circuits.

• Time Delay
• Non-Indicating
• Non-Rejection

Product Highlights

The Eaton Bussmann MDL-5-R fuse is ideal for electronic circuits. It has a cylindrical body and is time delay.

Product Information

Standard Information

• Brand: EATON BUSSMANN
• Manufacturer Part Number: MDL-5-R
• Country of Origin: Taiwan, Province of China

Technical Specifications

• Amperage: 5 A
• Voltage: 250 VAC
• Interrupt Rating: 200 A/10 kA
• End Caps: Nickel Plated Brass
• Body Style: Cylindrical
• MPN: MDL-5-R
• Brand: EATON BUSSMANN
• Length: 1-1/4"
• Series: MDL
• Diameter: 1/4"
• Standards: CE, CSA Certification Class 1422-01, UL 248-14 Guide JDYX
• Fuse Speed: Time Delay
• Body Material: Glass
• Connection Type: Ferrule End x Ferrule End
• Fuse Holder Code: G
• AC Voltage Rating: 250V AC
• DC Voltage Rating: Not Rated
• Fuse Voltage Rating: 250VAC
• Compatible Fuse Block Series: 3823, HFA, HHN, HK, HKP, HPF, HRK, HTB, S-8000
• Green Environmental Attribute: RoHS 2011/65/EU Compliant
• Product Length/Depth: 1.25 in
• Product Height: 0.25 in
• Product Width: 0.25 in
• Compliances: CE Marked RoHS Compliant
• Product Type: Time-delay glass tube fuse
• Used with: Axial leads
• Amperage Rating: 5 A
• Fuse indicator: Non-indicating
• Response time: 60 min at 135%, 120 sec at 200%, 5 sec at 200%
• Material: Glass tube Nickel-plated brass end cap construction
• Voltage rating: 250 Vac, 32 Vdc (self certified)
• Type: Electronic
• Application: Electronic circuits
• Body Type: Cylindrical
• Indicating/Non-Indicating: Non-Indicating
• Rejection/Non-Rejection: Non-Rejection
• Response Time: 60 min, 120 s, 12 s
• Terminal Type: Ferrule
• Mounting Type: Holder
• Element: Single
• Body Size: 1/4 in Dia x 1-1/4 in L
