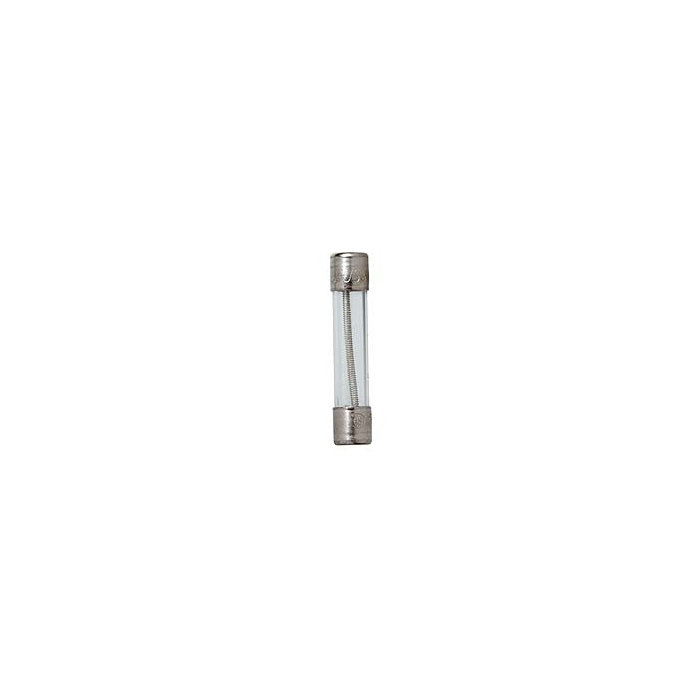

EATON BUSSMANN MDL-3-1/2-R Time Delay Fuse

Product Description

The Eaton Bussmann MDL-3-1/2-R is a time delay fuse designed for reliable performance. This fuse features a glass tube construction and nickel-plated bronze endcaps, ensuring durability. It is rated for a maximum voltage of 250VAC and a current rating of 3.5 Amps. The time delay characteristics allow for temporary overloads without tripping, which is useful in various electrical applications.

• Rated for 250VAC and 3.5 Amps
• Glass tube with nickel-plated bronze endcaps
• Interrupting rating of 10,000 AIC at 125VAC

Product Highlights

This fuse is ideal for protecting circuits from overloads and surges. It is often used in residential and commercial electrical systems, ensuring safety and reliability in operation.

Product Information

Standard Information

• Brand: Eaton Bussmann
• MPN: MDL-3-1/2-R

Technical Specifications

• Voltage Rating: 250 VAC
• Current Rating: 3.5 Amperes
• Interrupting Rating: 10,000 AIC @ 125 VAC
• Fuse Element: Time Delay
• Body Material: Glass tube
• Terminal Style: Ferrule
• Diameter: 1/4 Inch
• Length: 1 1/4 Inch
