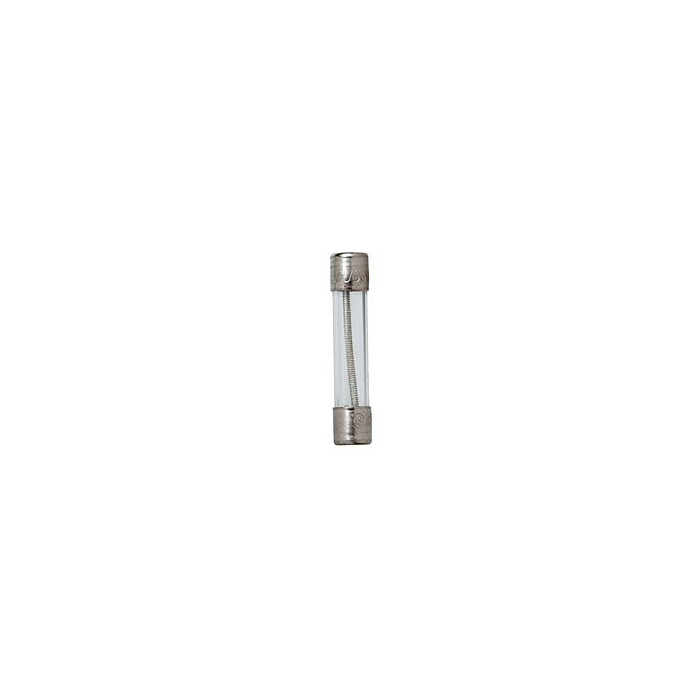

EATON BUSSMANN MDL-1/2-R Time Delay Fuse 250V AC

Product Description

The Eaton Bussmann MDL-1/2-R is a time-delay fuse designed for electronic circuits. This fuse features a glass tube construction and nickel-plated bronze endcaps.

• Time Delay fuse for circuit protection
• Interrupting Rating: 35 AIC @ 250 VAC, 10,000 AIC @ 125 VAC
• UL Listed and CSA Certified

Product Highlights

The Eaton Bussmann MDL-1/2-R provides reliable protection for electronic devices. Ideal for various applications, ensuring that your circuits remain safe.

Product Information

Standard Information

• Brand: Eaton Bussmann
• MPN: MDL-1/2-R

Technical Specifications

• Amperage: 0.50A
• Voltage Rating: 250V AC / 32V DC
• Fuse Type: Glass Tube
• Fuse Speed: Time Delay
• Endcap Material: Nickel-plated bronze
• Dimensions: 1.25 x 0.25 inches
• Interrupting Rating @ 250 VAC: 35 AIC
• Interrupting Rating @ 125 VAC: 10,000 AIC
• Application: Electronic circuits
• Response Time: 60 min at 135%, 120 sec at 200%, 5 sec at 200%
• Country of Origin: Taiwan
• UPC: 05171265209
• UNSPSC: 39121607
