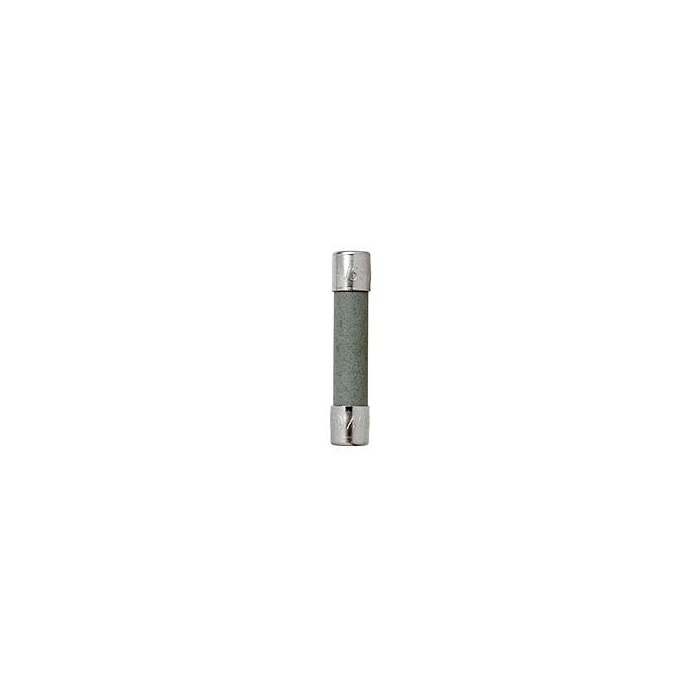

EATON BUSSMANN MDA-5-R Time Delay Fuse

Product Description

The EATON BUSSMANN MDA-5-R is a time-delay fuse suitable for circuit protection applications. It operates at five amps and supports a voltage rating of 250 volts AC. The fuse is constructed from a ceramic tube and features nickel-plated bronze endcaps for durability.

• Amperage: 5 A
• Voltage Rating: 250 V AC
• Fuse Element: Time Delay

Product Highlights

This fuse is efficient for applications requiring time delay characteristics, providing protection against overloads and short circuits.

Product Information

Standard Information

• Brand: EATON BUSSMANN
• MPN: MDA-5-R

Technical Specifications

• Amperage: 5 A
• Voltage Rating: 250 V AC
• Fuse Element: Time Delay
• Body Material: Ceramic
• End Cap Material: Nickel-plated bronze
• Size: 1/4 x 1 1/4 inches
• Interrupting Rating: 10,000 AIC @ 125 VAC
• UL Listed Card: MDA 2/10 - 20A (Guide JDYX, File E19180)
