EATON BUSSMANN MDA-15-R Time Delay Fuse

Product Description

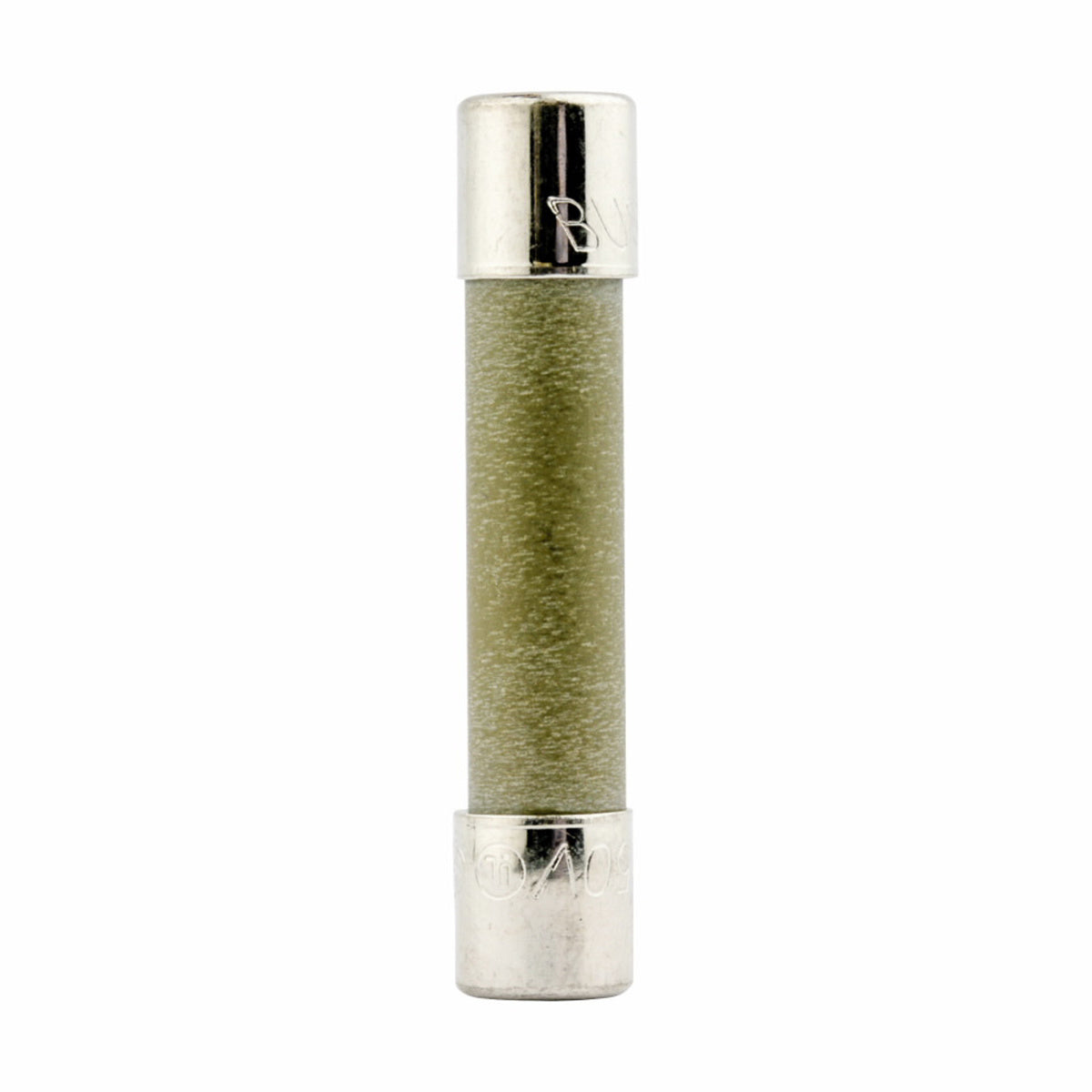

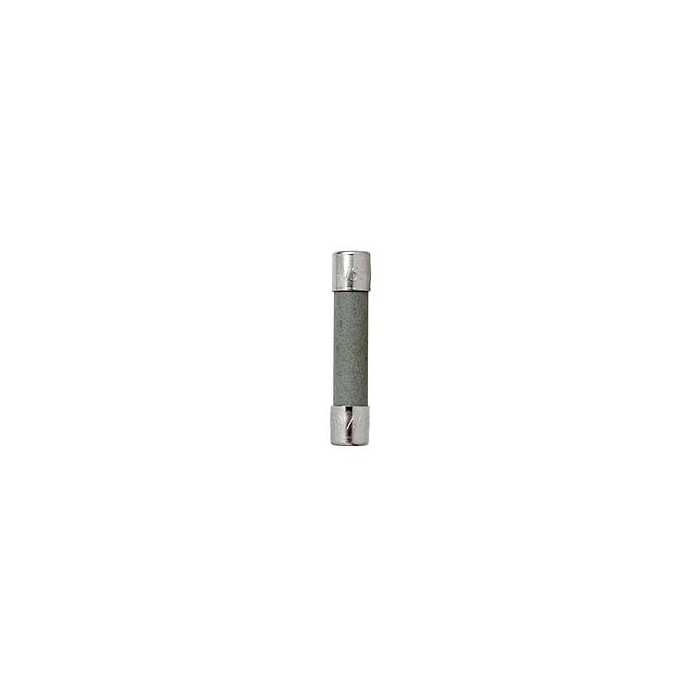

The EATON BUSSMANN MDA-15-R is a time-delay fuse for electronic circuit protection. This fuse has a ceramic tube construction that ensures durability and reliable operation. The nickel-plated bronze or brass endcaps provide secure contact for effective electrical performance. It is rated for two hundred fifty volts AC and features an interrupting rating of seven hundred fifty AIC at two hundred fifty volts AC, and ten thousand AIC at one hundred twenty-five volts AC. This fuse is ideal for various applications that require time-delay characteristics.

• Time delay fuse for electronic circuits.
• Ceramic tube construction with nickel-plated endcaps.
• Interrupting ratings: 750 AIC at 250 VAC, 10,000 AIC at 125 VAC.

Product Highlights

Reliable time-delay fuse suitable for electronic circuit protection.

Product Information

Standard Information

• Brand: Eaton Bussmann
• MPN: MDA-15-R

Technical Specifications

• Amperage: 15 A
• Voltage: 250 V
• Fuse Type: Time Delay
• Fuse Element: Ceramic Tube
• Body Material: Ceramic
• Endcaps: Nickel-plated bronze
• Size: 1/4 x 1 1/4 inches
• AC Voltage Rating: 250
• Interrupting Rating @ 250 VAC: 750 AIC
• Interrupting Rating @ 125 VAC: 10,000 AIC
• Interrupting Rating: 0.75/10 kA
• Length: 1-1/4 inches
• Diameter: 1/4 inches
• Terminal Type: Ferrule
• Mounting Type: Clip
• Rejecting: Non-rejection
• Fuse Speed: Time Delay
• Indicator Type: Non-indicating
