EATON BUSSMANN MDA-1-R Time Delay Fuse

Product Description

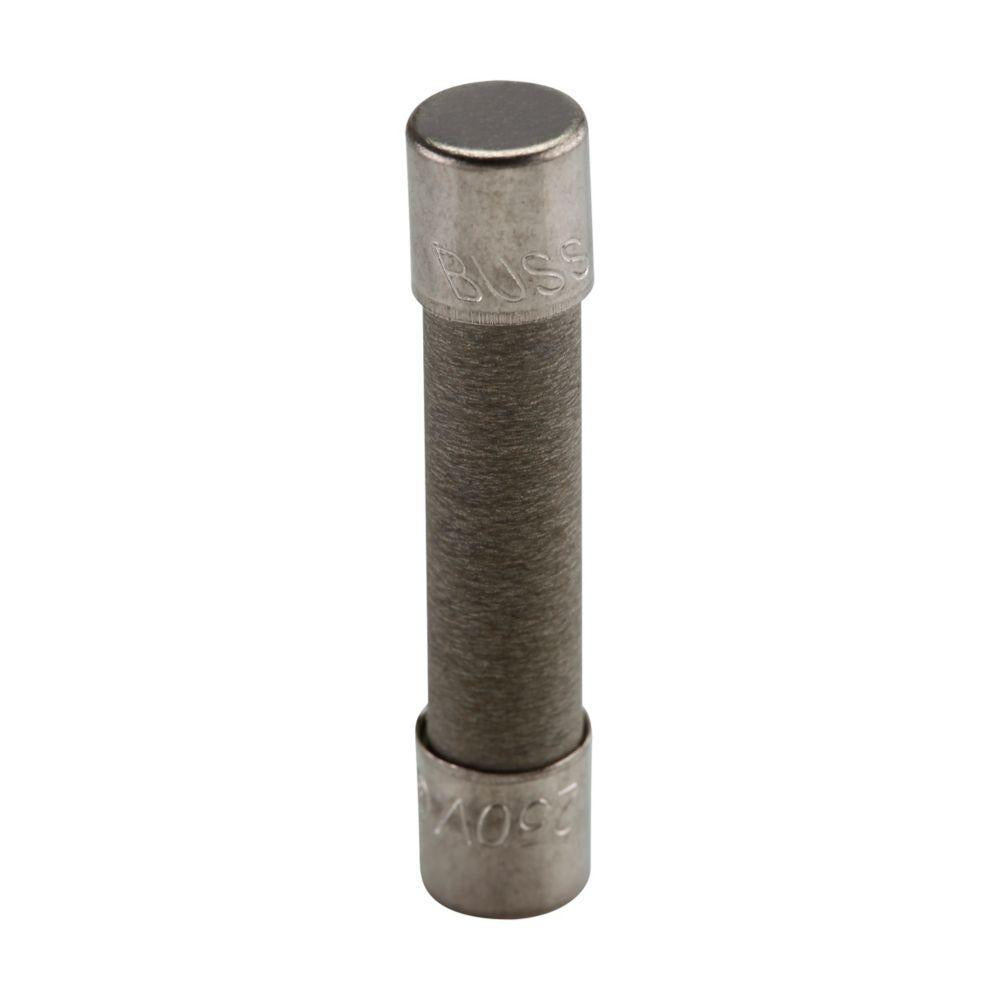

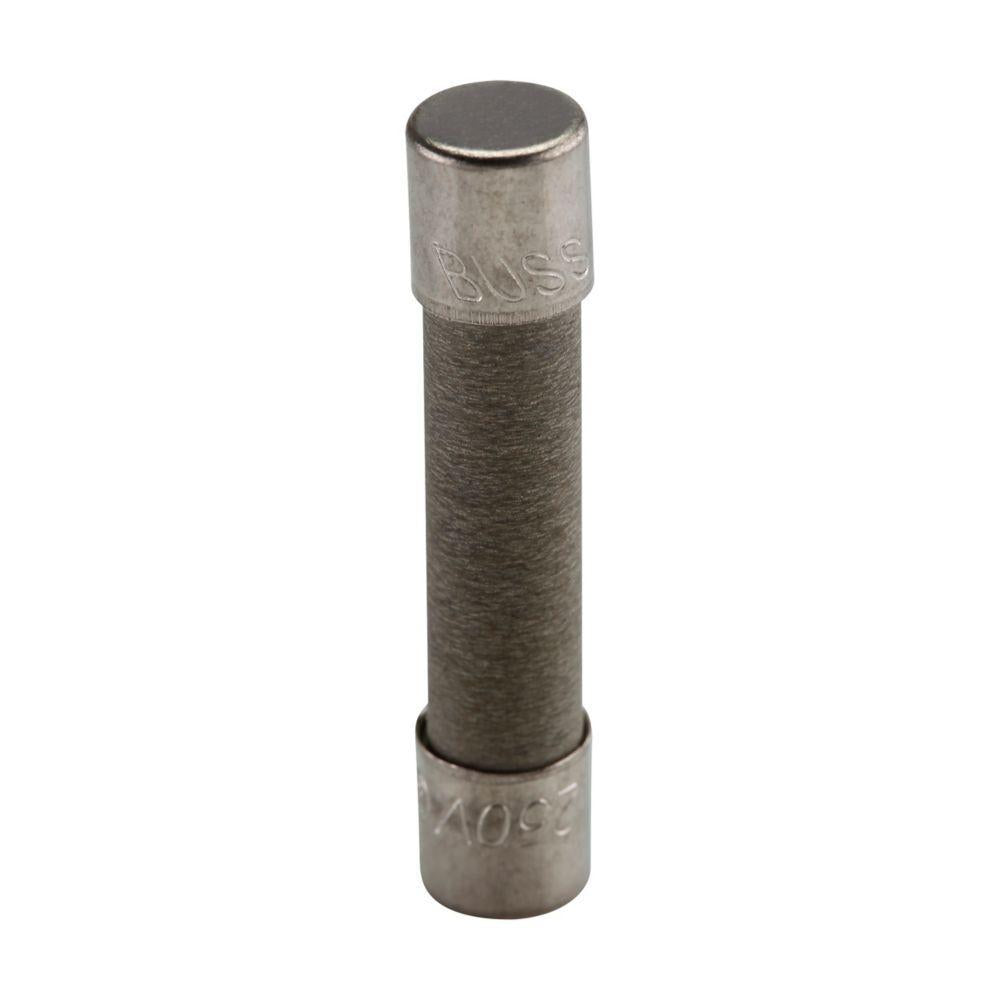

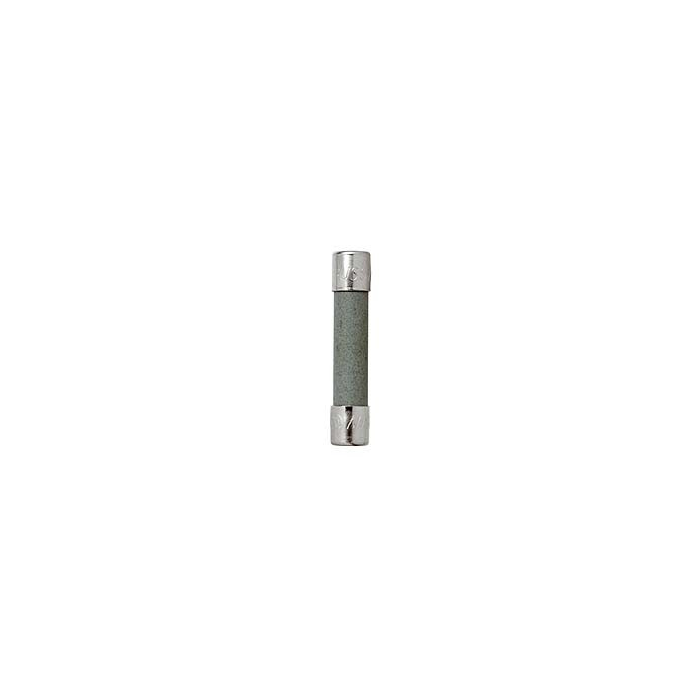

The EATON BUSSMANN MDA-1-R is a time-delay fuse designed for reliable circuit protection. It has a ceramic body that ensures durability and nickel-plated bronze endcaps for improved conductivity. Rated for 1 Amp at 250 Volts AC, this fuse is suitable for various applications requiring a time delay function.

• 1 Amp, 250 Volts AC
• Interrupting Rating: 35 AIC at 250 VAC
• Small cylindrical design with ferrule terminals

Product Highlights

This fuse features a compact design for holder mounting and is ideal for use in electrical circuits where current regulation is necessary.

Product Information

Standard Information

• Brand: Eaton
• MPN: MDA-1-R

Technical Specifications

• Current Rating: 1 A
• Voltage Rating: 250 VAC
• Interrupting Rating: 35 AIC @ 250 VAC
• Body Type: Cylindrical
• Fuse Size: 1/4 x 1 1/4
• Terminal Type: Ferrule
• Mounting Type: Holder
• Fuse Element: Single Element
• Fuse Material: Ceramic
• Response Time: 60 min, 120 s
• Series: MDA
• Indicating: Non-Indicating
• Rejection: Non-Rejection
