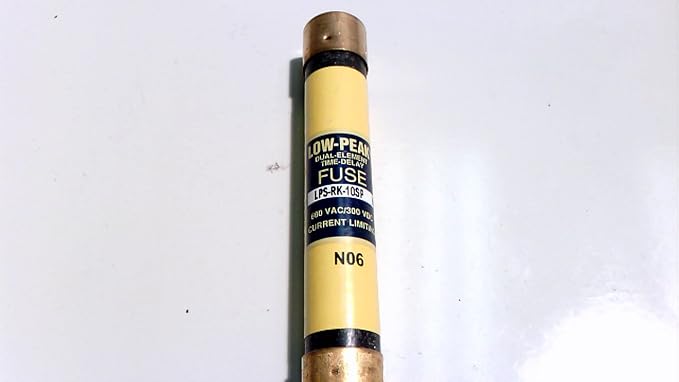

Eaton Bussmann LPS-RK-10SP Fuse 10 A replacement mpn

Product Description

The Eaton Bussmann Series LPS-RK-10SP is a Class RK1, time-delay, dual-element, current limiting fuse with an amperage rating of 10 A. It has an interrupting rating of 300 kA at 600 Vac and 100 kA at 300 Vdc. This fuse provides current limiting for maximum short circuit protection and high inrush current motor protection.

• Time Delay (Minimum 10 Seconds)
• Dual Element
• Current Limiting for Maximum Short Circuit Protection

Product Highlights

The LPS-RK-10SP fuse offers reliable protection for various electrical systems, with a time-delay feature to prevent nuisance tripping.

Product Information

Standard Information

• Brand: EATON BUSSMANN
• Manufacturer Part Number: LPS-RK-10SP
• Country of Origin: Mexico

Technical Specifications

• Product Name: Eaton Bussmann series LPS-RK fuse
• Catalog Number: LPS-RK-10SP
• UPC: 051712548304
• Product Length/Depth: 5 in
• Product Height: 0.81 in
• Product Width: 0.81 in
• Product Type: Fuse
• Amperage Rating: 10 A
• Interrupt rating: 100 kAIC at 300 Vdc
• Response time: 10 sec at 500%
• Voltage rating: 600 Vac, 300 Vdc
• Fuse type: Time Delay Current-limiting
• Number of elements: Dual
• Packaging type: Standard
• Class: Class RK1
• Connection: Ferrule end x ferrule end
• Fuse indicator: Non-indicating
• Amperage: 10
• Voltage: 600
• Element: Dual
• Physical Size: 0.81" x 5"
• AC Voltage Rating: 600
• DC Voltage Rating: 300
• Interrupting Rating: 300,000 AIC RMS @ 600VAC
• DC Interrupting Rating: 100,000 AIC
• UL Listed: Special Purpose, Guide JFHR, File E56412
• CSA Certified: Class 1422-02, File 53787
• Brand: lowpeak
• Series: LPS
• Mpn: LPS-RK-10SP
• Gtin: 51712548304
• Description: Industrial & Electrical Fuses 600V 10A Dual Element Time Delay
• Current Rating: 10 Amps
• AC Adapter Current: 10 Amps
