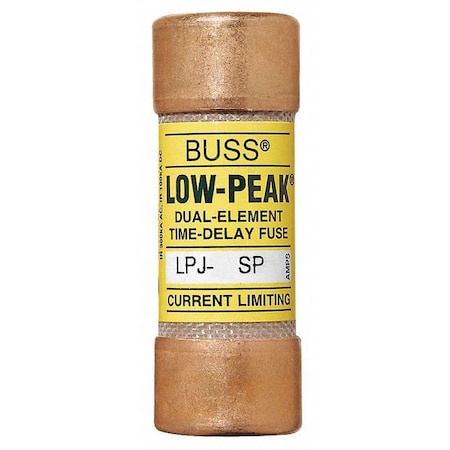

Eaton Bussmann LPJ-60SP Fuse, Time Delay, 60A, LPJ Series, 600V AC, 300V DC, 2-3/8 inches L x 1-1/16 inches dia

Product Description

The EATON BUSSMANN LPJ-60SP is a time delay fuse with a 60A rating, designed for 600V AC and 300V DC applications. This Class J fuse from the LPJ series features a cylindrical body and nonindicating design. It has an interrupt rating of 100kA at 300V DC and 300kA at 600V AC. The fuse size is 2-3/8" L x 1-1/16" dia.

• Time delay functionality
• Interrupt Rating: 100kA at 300V DC, 300kA at 600V AC
• Dual element

Product Highlights

The LPJ-60SP fuse provides reliable overcurrent protection with time delay characteristics for various applications. It is CE/UL/CSA standards compliant.

Product Information

Standard Information

• Brand: EATON BUSSMANN
• Manufacturer Part Number: LPJ-60SP
• Country of Origin: Mexico

Technical Specifications

• Amps: 60A
• Item: Fuse
• Class: J
• Speed: Time Delay
• Length: 2-3/8"
• Series: LPJ
• Element: Dual
• Diameter: 1-1/16"
• Fuse Amps: 60A
• Fuse Size: 2-3/8" L x 1-1/16" dia
• Standards: CE/UL-Special Purpose Guide JFHR/CSA Class 1422-02
• Body Style: Cylindrical
• Fuse Speed: Time Delay
• Body Material: Melamine
• Connection Type: Ferrule End x Ferrule End
• Fuse Holder Code: AA
• Interrupt Rating: 100kA at 300V DC, 300kA at 600V AC
• AC Voltage Rating: 600V AC
• DC Voltage Rating: 300V DC
• Equivalent Series: AJT, JTD, LPJ
• Visual Indication: Nonindicating
• Fuse Voltage Rating: 600VAC/300VDC
• Fits Fuse Block Style: Nonrejection
• Functionally Equal To: Littelfuse JTD
• Fuse Interrupt Rating: 300kA at 600VAC, 100kA at 300VDC
• Rejection / Nonrejection: Nonrejection
• Length (Straight Wireway): 2 3/8 in
• Indicating / Nonindicating: Nonindicating
• Equivalent Brand and Series: Bussmann LPJ, Littelfuse JTD, Mersen AJT
• Compatible Fuse Block Series: CH30J, CH60J, J600, JM600, JM601, JM602, JM604, JM606, JP600, JT600, JTN600
• Green Environmental Attribute: RoHS 2011/65/EU Compliant
• Product Name: Eaton Bussmann series LPJ fuse
• Catalog Number: LPJ-60SP
• UPC: 051712523363
• Product Length/Depth: 2.38 in
• Product Height: 1.06 in
• Product Width: 1.06 in
• Compliances: CE Marked RoHS Compliant
• Product Type: Fuse
• Amperage Rating: 60 A
• Response time: 10 sec at 500%
• Voltage rating: 600 Vac, 300 Vdc
• Fuse type: Time delay Current-limiting
• Number of elements: Dual
• Packaging type: Standard
• Connection: Ferrule end x ferrule end
• Fuse indicator: Non-indicating
• Special features: Non-indicating, High in-rush current motor protection
• Body Size: 1.06 in Dia x 2.38 in L
• Body Type: Cylindrical
• Material: Melamine
• Mounting Type: Holder
• Terminal Type: Ferrule
