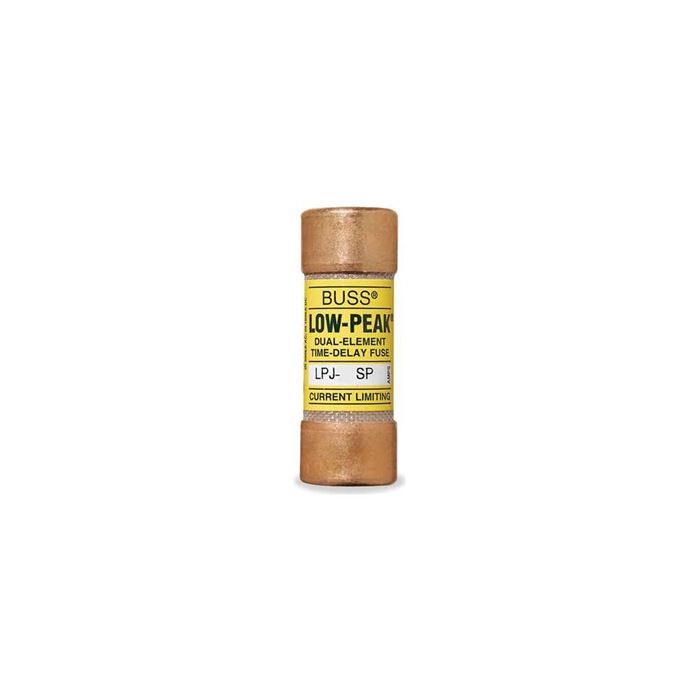

EATON BUSSMANN LPJ-30SP Eaton Bussmann LPJ-30SP Class J Time-Delay Fuse

Product Description

The Eaton Bussmann LPJ-30SP is a Class J time-delay fuse with a rating of thirty Amps and suitable for voltage applications up to six hundred Vac. This fuse is built with a dual-element design for enhanced circuit protection. It is capable of handling high fault currents, with an interrupting rating of three hundred thousand AIC RMS at six hundred Vac and one hundred thousand AIC at three hundred Vdc.

• Rated for thirty Amps and designed for up to six hundred Vac.
• Offers a time-delay characteristic with a minimum delay of ten seconds at five hundred percent of its rating.
• UL Listed and CSA Certified for safety and reliability.

Product Highlights

This fuse is ideal for applications requiring reliable circuit protection and current limiting.

Product Information

Standard Information

• Brand: Eaton Bussmann
• MPN: LPJ-30SP

Technical Specifications

• Current Rating: 30 A
• Voltage Rating AC: 600 V
• Voltage Rating DC: 300 V
• Fuse Class: J
• Time Delay: 10 Seconds (Minimum) at 500% Rating
• Element: Dual
• Physical Size: 0.81 x 2.25 inches
• Interrupting Rating AC: 300,000 AIC RMS @ 600VAC
• Interrupting Rating DC: 100,000 AIC
• UL Listing: Special Purpose, Guide JFHR, File E56412
• CSA Certification: 200,000 AIR, Class J per CSA 22.2 No. 248.8 Class 1422-02, File 53787
