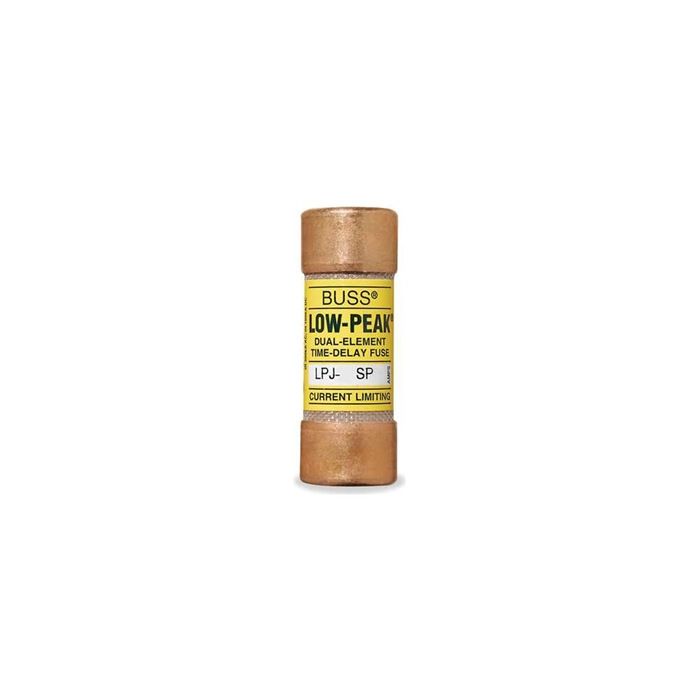

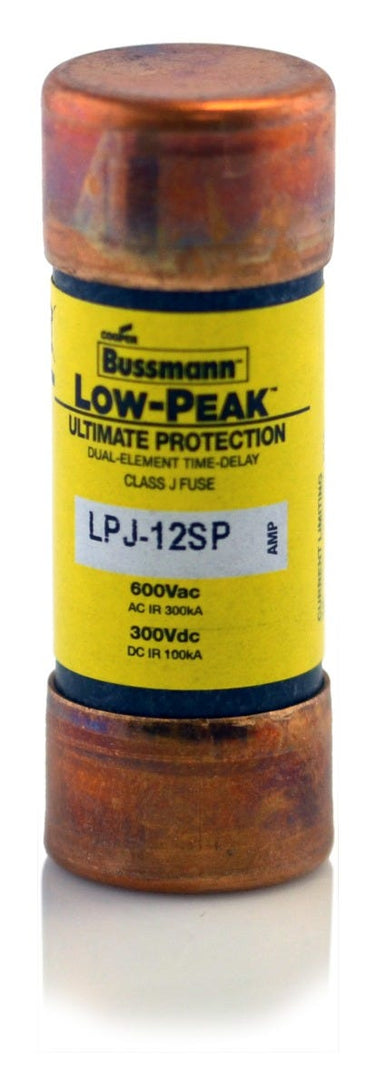

Eaton Bussmann LPJ-12SP Class J Time-Delay Fuse

Product Description

The Eaton Bussmann LPJ-12SP is a Class J time-delay fuse that provides effective circuit protection. This fuse has a current rating of twelve Amps and a voltage rating of six hundred VAC. The dual-element construction ensures a high degree of current limitation, making it a reliable choice for electrical systems.

• Current rating of twelve Amps
• Voltage rating of six hundred VAC
• Minimum time delay of ten seconds at five hundred percent of rated current

Product Highlights

This fuse is UL Listed and CSA Certified, achieving a high interrupting rating of three hundred thousand AIC RMS at six hundred VAC. The LPJ-12SP is ideal for applications requiring reliable protection against overloads and short circuits.

Product Information

Standard Information

• Brand: Eaton
• MPN: LPJ-12SP

Technical Specifications

• Series: LPJ
• UPC: 051712522748
• GTIN: 00051712522748
• Current Rating: 12 Amps
• Voltage Rating: 600 Volts AC
• Fuse Class: UL Class J
• Time Delay: 10 Seconds (Minimum) at 500% Rating
• Element: Dual Element
• Size: 0.81 x 2.25 inches
• Current Limitation: High Degree of Current Limitation
• Interrupting Rating: 300,000 AIC RMS @ 600VAC
• DC Interrupting Rating: 100,000 AIC
• AC Voltage Rating: 600
• DC Voltage Rating: 300
• UL Listing: UL Listed Special Purpose, Guide JFHR, File E56412
• CSA Certification: CSA Certified, 200,000 AIR, Class J per CSA 22.2 No. 248.8 Class 1422-02, File 53787
