Eaton Bussmann LPJ-10SP Low-Pe, Current-Limiting Time-Delay Fuse, 10A 600VAC 300VDC

Product Description

Introducing the Eaton Bussmann LPJ-10SP, a high-performance, current-limiting time-delay fuse designed for enhanced circuit protection. Ideal for professionals in electrical and power distribution fields, this fuse incorporates advanced technology to protect equipment.

• Robust 300/100 kA interrupt rating ensures reliable operation under high fault conditions.
• Dual-element design provides optimal time delay to safeguard sensitive components.
• Compatible with a variety of fuse block series, enhancing versatility across applications.

Product Highlights

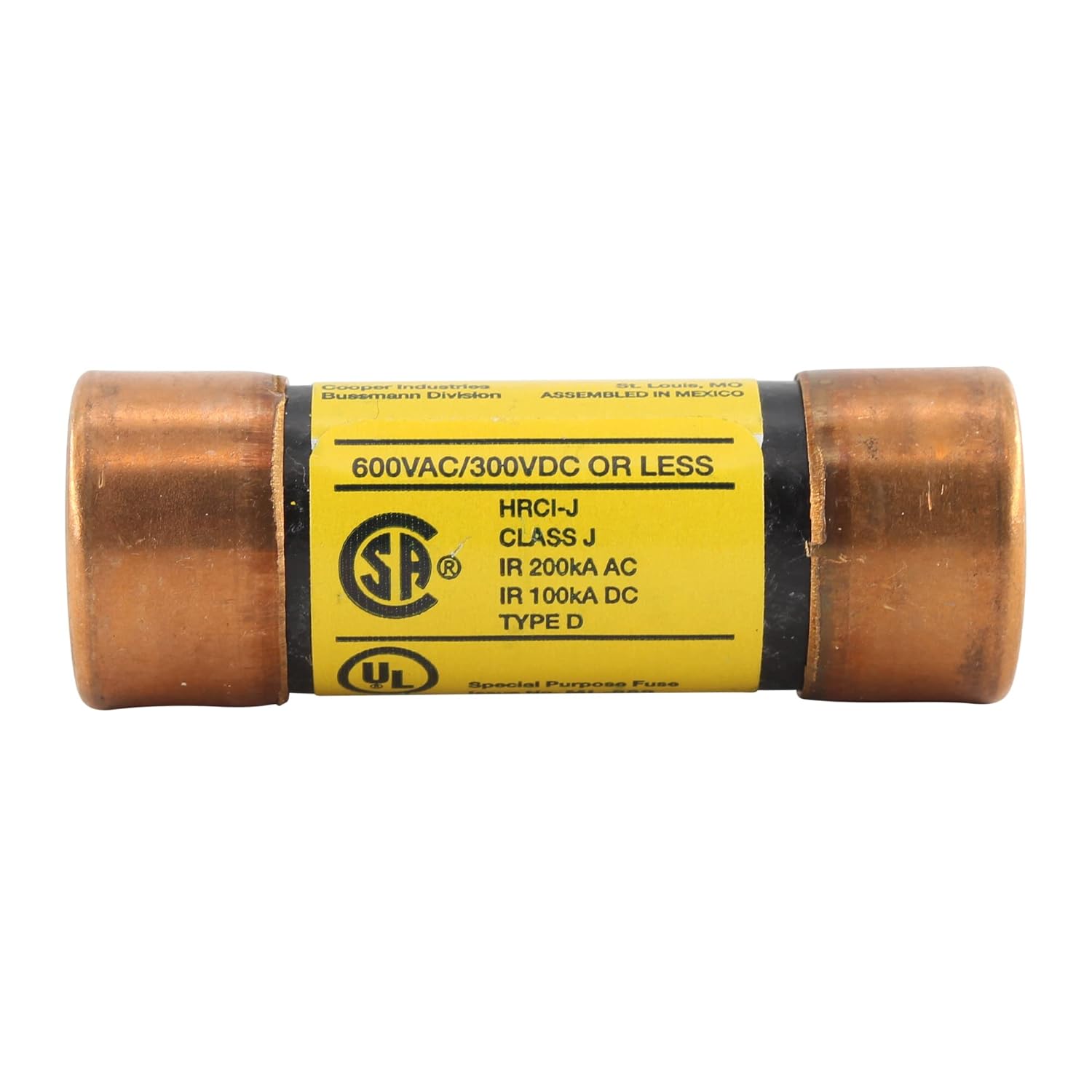

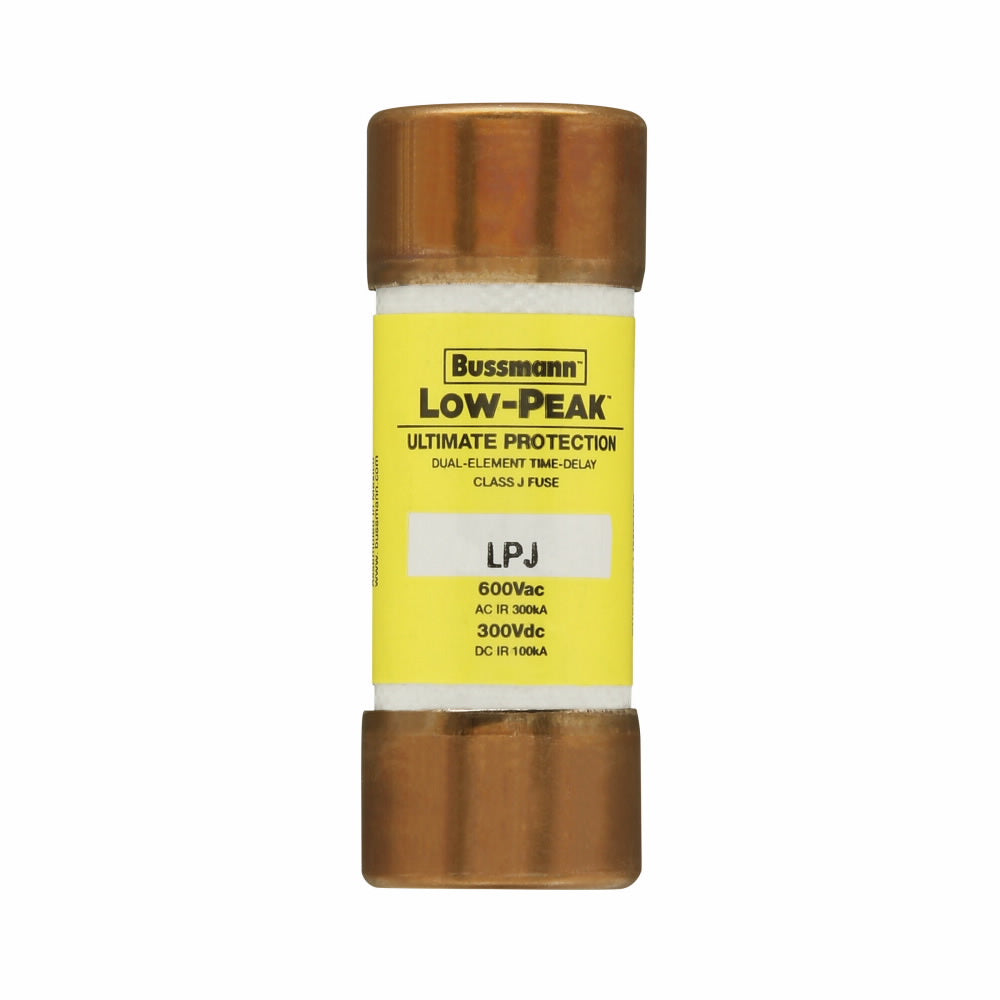

The LPJ-10SP features a cylindrical body made of durable melamine and measures 2.25 inches in length with a diameter of 0.81 inches. Its design minimizes unnecessary fuse operations due to transient surges or temporary overloads.

Technical Specifications

• Voltage rating: 600VAC/300VDC
• Amperage rating: 10A
• Interrupt rating: 300kA at 600VAC, 100kA at 300VDC
• Body material: Melamine
• Dimensions: 2.25 inches length x 0.81 inches diameter
• Mounting type: Holder
• Response time: 10s
• Terminal type: Ferrule
