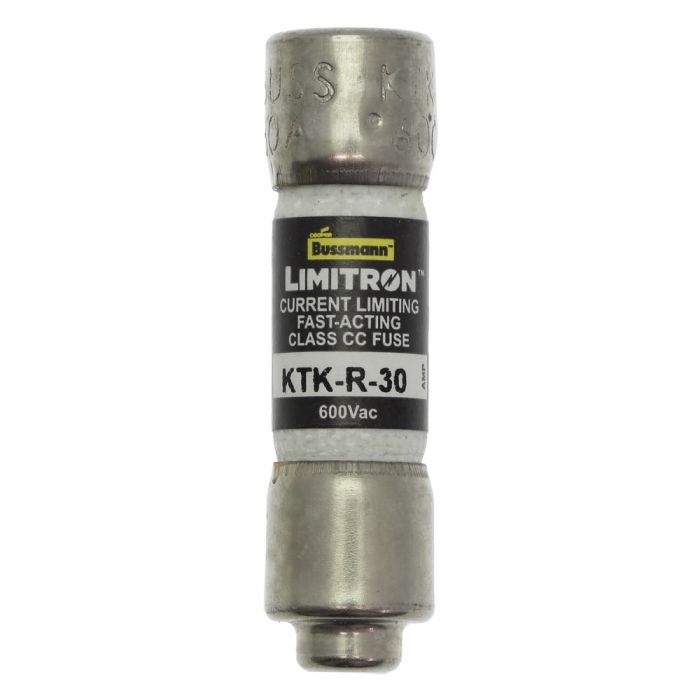

Eaton Bussmann KTK-R-30 Fuse 30A 600VAC

Product Description

The EATON BUSSMANN KTK-R-30 is a cylindrical, fast-acting, UL Class CC fuse designed for circuit protection. Rated at 30A and 600VAC, it offers a 200kA interrupt rating. The melamine body construction ensures durability. This fuse is suitable for industrial control panels, machinery, and lighting applications where fast response to overcurrents is crucial.

• Current Limiting
• Fast Acting
• Rejection style

Product Highlights

Fast-acting fuse with a 200kA interrupt rating at 600VAC, ideal for industrial and commercial applications requiring current limitation.

Product Information

Standard Information

• Brand: EATON BUSSMANN
• Manufacturer Part Number: KTK-R-30
• Country of Origin: Mexico

Technical Specifications

• Manufacturer: EATON BUSSMANN
• Brand: Eaton Bussmann
• Item Model Number: KTK-R-30
• Amperage: 30 A
• Voltage: 600 V
• Interrupt Rating: 200 kAIC
• Class: CC
• Body Style: Cylindrical
• Amps [Specifications]: 30A
• Item [Specifications]: UL Class CC Fuse
• Speed [Specifications]: Fast Acting
• Length [Specifications]: 1-1/2"
• Series [Specifications]: KTK-R
• Element [Specifications]: Single
• Diameter [Specifications]: 13/32"
• Fuse Amps [Specifications]: 30A
• Fuse Size [Specifications]: 1-1/2" L x 13/32" dia
• Standards [Specifications]: CE/UL-248-4 Guide JDDZ/CSA Class 1422-02
• Body Material [Specifications]: Melamine
• AC Voltage Rating [Specifications]: 600V AC
• DC Voltage Rating [Specifications]: Not Rated
• Equivalent Series [Specifications]: ATMR, KLKR, KTK-R
• Visual Indication [Specifications]: Nonindicating
• Fuse Voltage Rating [Specifications]: 600VAC
• Fuse Size (Lg x Dia) [Specifications]: 1 1/2 in x 13/32 in
• Fits Fuse Block Style [Specifications]: Rejection
• Functionally Equal To [Specifications]: Mersen/Ferraz Shawmut ATMR, Littelfuse KLKR
• Fuse Interrupt Rating [Specifications]: 200kA at 600VAC
• Rejection / Nonrejection [Specifications]: Rejection
• Length (Straight Wireway) [Specifications]: 1 1/2 in
• Indicating / Nonindicating [Specifications]: Nonindicating
• Equivalent Brand and Series [Specifications]: Bussmann KTK-R, Littelfuse KLKR, Mersen ATMR
• Compatible Fuse Block Series [Specifications]: BC, BCM, C2617, C5268, CHCC, HPF, OPM-1038, OPM-NG
• Green Environmental Attribute [Specifications]: RoHS 2011/65/EU Compliant
• Product Name: Eaton Bussmann series KTK-R fuse
• Catalog Number: KTK-R-30
• UPC: 051712420747
• Product Length/Depth: 1.5 in
• Product Height: 0.41 in
• Product Width: 0.41 in
• Product Weight: 0.18 lb
• Compliances: CE Marked RoHS Compliant
• Certifications: UL Listed CSA Certified
• Product Type: Fuse
• Amperage Rating: 30 A
• Voltage Rating: 600 V
• Fuse indicator: Non-indicating
• Connection: Ferrule end x ferrule end Ferrule
• Response time: See time current curve
• Material: Melamine tube
• Packaging type: Standard
• Quantity: 10
• Type: Current-limiting fast-acting fuse
• Special features: Rejection style
• Application: Industrial controls panels and machinery, street lighting, general lighting, capacitors and distribution
• AC Adapter Current: 30 Amps
• Mounting Type: Holder
• Current Rating: 30 Amps
• Unit Count: 10 Count
• Part Number: KTKR30
• Body Type: Cylindrical
• Terminal Type: Ferrule End
• Element: Single
• Body Size: 13/32 in Dia x 1-1/2 in L
