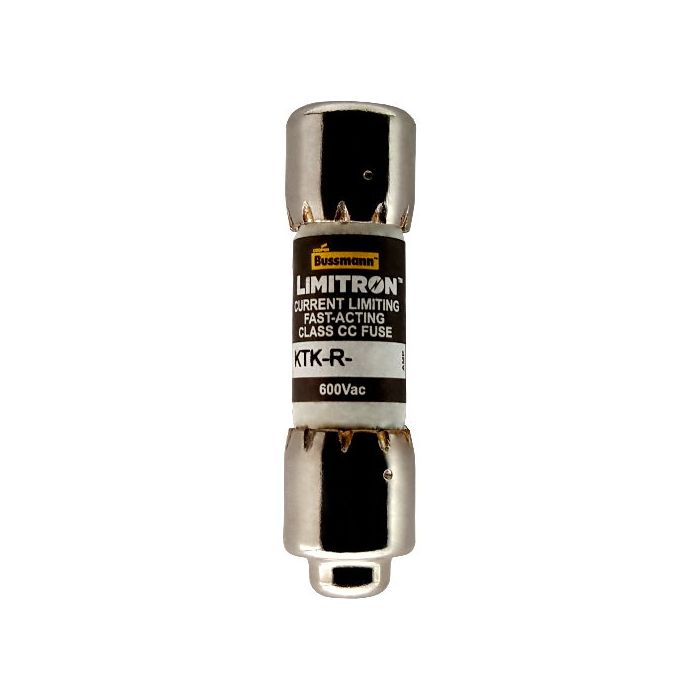

EATON BUSSMANN KTK-R-2 Class CC Fast Acting Fuse

Product Description

The EATON BUSSMANN KTK-R-2 is a Class CC fast acting fuse for branch circuit protection. Rated for 600 Volts AC, it has an interrupting capacity of two hundred thousand AIC RMS at six hundred volts AC. The fuse is built with a melamine tube and features nickel-plated bronze end caps. It meets UL standards and CSA certification.

• Class CC rejection type fuse
• Fast acting with melamine tube
• UL Listed and CSA Certified

Product Highlights

This fuse is essential for protecting electrical circuits and preventing overloads.

Product Information

Standard Information

• Current Rating: 2 Amps
• Voltage Rating: 600 Volts AC

Technical Specifications

• Fuse Class: UL Class CC
• Speed: Fast Acting
• Type: Rejection
• Size: 0.41 inches x 1.5 inches
• Tube Material: Melamine
• End Cap Material: Nickel Plated Bronze
• Interrupting Rating: 200,000 AIC RMS @ 600VAC
• UL Certification: STD. 248-14
• CSA Certification: C22.2 NO. 248.14
