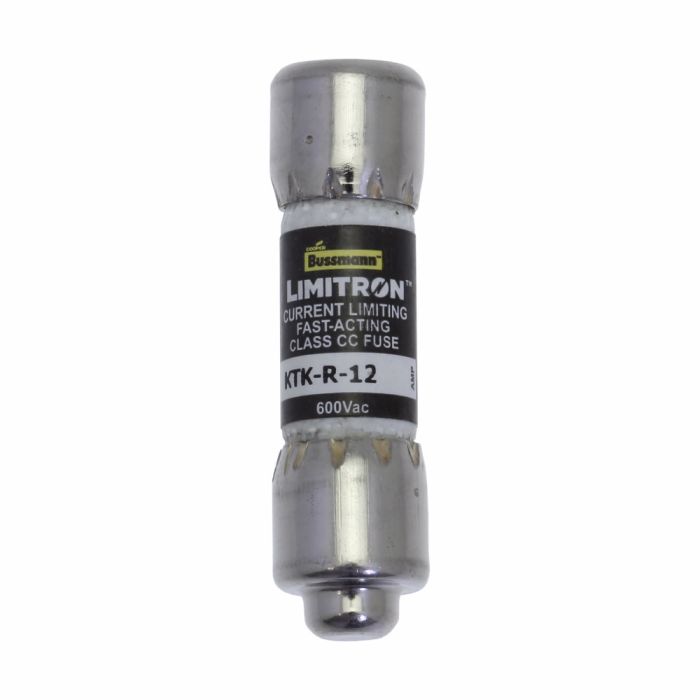

Eaton Bussmann KTK-R-12 Fuse 12A 600V 200KAIC CC Cylindrical Rejection

Product Description

The Eaton Bussmann KTK-R-12 is a Limitron™ current limiting fast-acting fuse. Rated at 12A and 600V with a 200kAIC interrupt rating, this Class CC fuse features a cylindrical body. It is suitable for industrial control panels, machinery, street lighting, general lighting, capacitors, and distribution applications.

• Current Limiting
• Fast Acting
• Rejection style

Product Highlights

The Eaton Bussmann KTK-R-12 fuse provides exceptional protection in a compact size. It is ideal for applications requiring specific current limitation.

Product Information

Standard Information

• Brand: EATON BUSSMANN
• Manufacturer Part Number: KTK-R-12
• Country of Origin: Mexico

Technical Specifications

• Amperage: 12 A
• Voltage: 600 V
• Interrupt Rating: 200 kAIC
• Class: CC
• Body Style: Cylindrical
• Speed: Fast Acting
• Length: 1-1/2"
• Series: KTK-R
• Element: Single
• Diameter: 13/32"
• Standards: CE/UL-248-4 Guide JDDZ/CSA Class 1422-02
• Body Material: Melamine
• AC Voltage Rating: 600V AC
• DC Voltage Rating: Not Rated
• Equivalent Series: ATMR, KLKR, KTK-R
• Visual Indication: Nonindicating
• Fuse Voltage Rating: 600VAC
• Fits Fuse Block Style: Rejection
• Indicating / Nonindicating: Non-Indicating
• Rejection / Nonrejection: Rejection
• Product Length/Depth: 1.5 in
• Product Height: 0.41 in
• Product Width: 0.41 in
• Compliances: RoHS Compliant CE Marked
• Certifications: UL Listed CSA Certified
• Product Type: Fuse
• Amperage Rating: 12 A
• Connection: Ferrule end x ferrule end Ferrule
• Response time: See time current curve
• Material: Melamine tube
• Voltage rating: 600 V
• Type: Current-limiting fast-acting fuse
• Special features: Rejection style
• Application: Industrial controls panels and machinery, street lighting, general lighting, capacitors and distribution
• Terminal Type: Ferrule End
• Mounting Type: Holder
• Body Size: 13/32 in Dia x 1-1/2 in L
