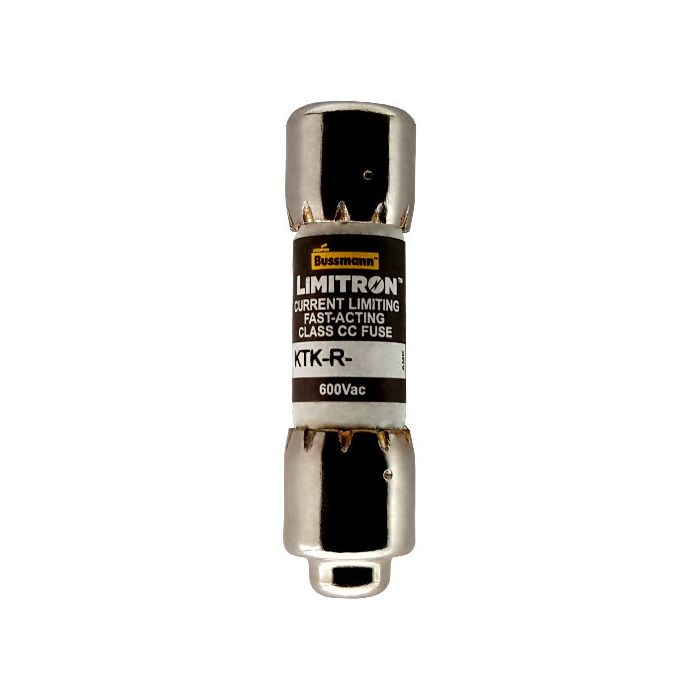

EATON BUSSMANN KTK-R-10 Class CC Fast Acting Fuse

Product Description

The EATON BUSSMANN KTK-R-10 is a Class CC fast-acting fuse designed for branch circuit protection. This rejection-type fuse is built with a melamine tube and nickel-plated bronze end caps ensuring durability and effectiveness. It has a current rating of ten amps and a voltage rating of six hundred volts AC. The fuse meets stringent industry standards and is UL Listed and CSA Certified.

• Class CC rejection type fuse.
• Fast acting with a current rating of 10A.
• Rated for 600VAC with a 200,000 AIC RMS interrupting rating.

Product Highlights

This fuse is utilized in various applications including industrial control panels, street lighting, and general lighting systems. It is essential for ensuring safety and reliability in electrical systems.

Product Information

Standard Information

• Brand: EATON BUSSMANN
• MPN: KTK-R-10

Technical Specifications

• Current Rating: 10A
• Voltage Rating: 600V
• Fuse Class: Class CC
• Speed: Fast Acting
• Fuse Type: Rejection
• Dimensions: one point five inches length x zero point four one inches diameter
• Tube Material: Melamine
• End Material: Nickel Plated Bronze
• Interrupting Rating: 200kAIC
• UL Listing: Branch Circuit Protection
• UL Standard: STD. 248-14
• CSA Certification: C22.2 No. 248.14
• Application: Industrial control panels, street lighting, general lighting
• Connection Type: Ferrule end x ferrule end
• ECCN: EAR99
• Country of Origin: Mexico
• UPC: 05171242068
• UNSPSC: 39121606
