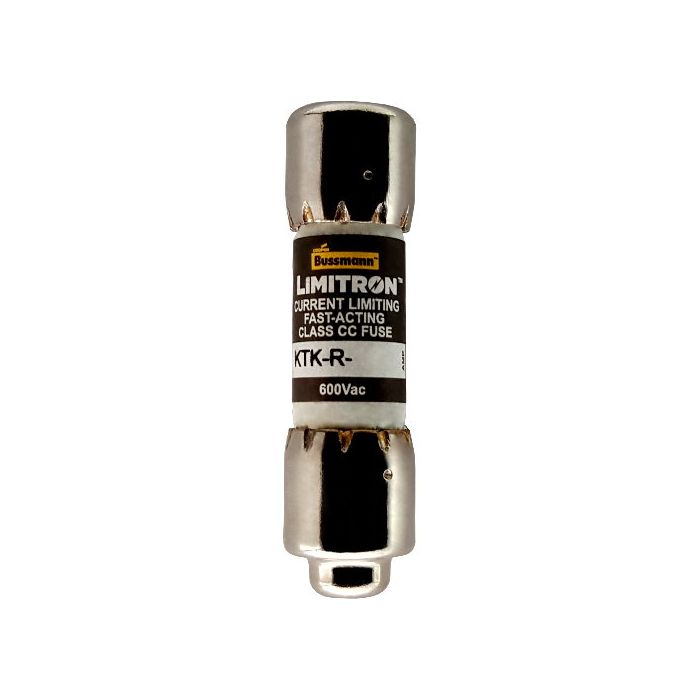

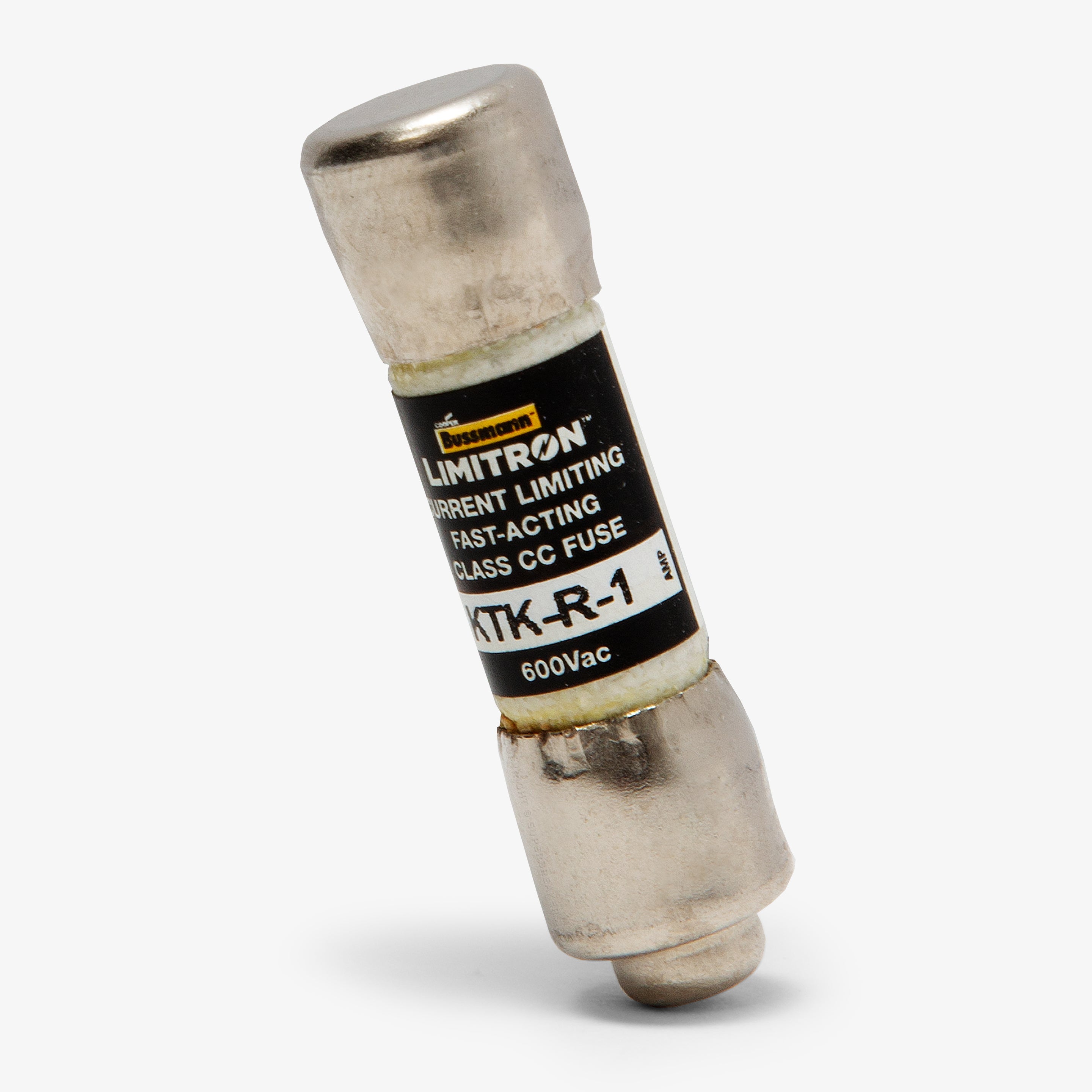

Eaton Bussmann KTK-R-1 Class CC Fast Acting Fuse

Product Description

The Eaton Bussmann KTK-R-1 is a Class CC fast-acting fuse designed for branch circuit protection. This fuse operates with a voltage rating of six hundred volts AC and has an interrupting rating of two hundred thousand amps RMS at six hundred volts AC. The fuse is constructed with a melamine tube and nickel-plated bronze end caps for durability and reliability.

• Fast acting response
• Rejection type fuse for enhanced safety
• Compact size of 0.41 inches by 1.5 inches

Product Highlights

This fast-acting fuse is ideal for protecting against overloads and short circuits in electrical systems.

Product Information

Standard Information

• Brand: Eaton Bussmann
• Series: KTK-R

Technical Specifications

• MPN: KTK-R-1
• UPC: 051712420587
• GTIN: 51712420587
• Current Rating: 1 Amp
• Voltage Rating: 600 Volts AC
• Fuse Class: CC
• Acting Type: Fast Acting
• Rejection Type: Rejection
• Body Size: 0.41 x 1.5 inches
• Tube Material: Melamine
• End Cap Material: Nickel Plated Bronze
• UL Listing: Branch Circuit Protection
• Interrupting Rating: 200,000 AIC RMS @ 600VAC
• UL Standard: STD. 248-14, (Guide #JDYX, File #E19180)
• CSA Certification: C22.2 NO. 248.14 (File #53787?Class #1422-01)
