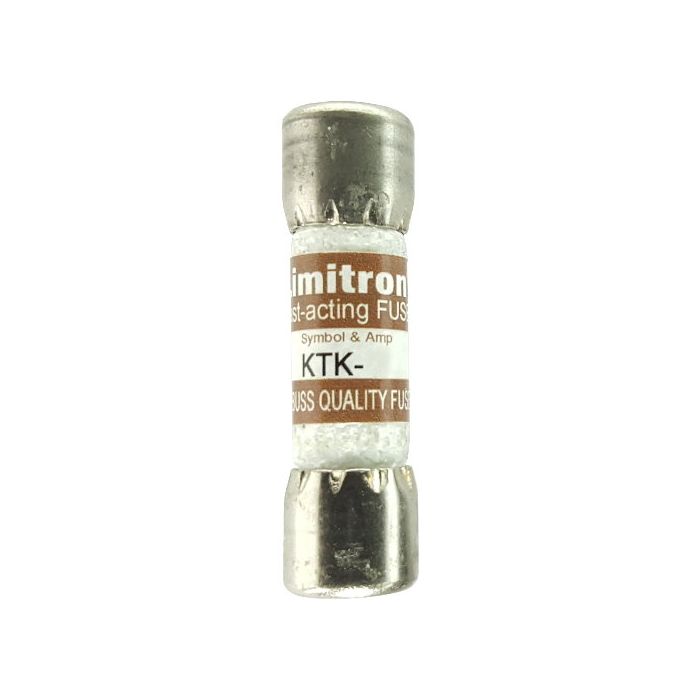

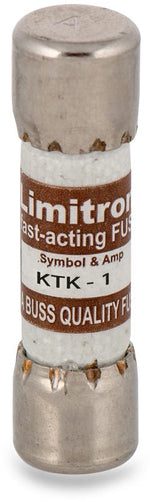

EATON BUSSMANN KTK-1 Fast Acting Midget Fuse

Product Description

The EATON BUSSMANN KTK-1 is a fast-acting midget fuse suitable for circuit protection. It is built with a melamine tube and includes nickel-plated bronze endcaps. This fuse can handle an interrupting rating of one hundred thousand AIC RMS at six hundred VAC. It is UL Listed and CSA Certified, ensuring adherence to safety standards. Applications that require quick response to overcurrent conditions can benefit from the KTK-1 fuse.

• Fast Acting Fuse
• Melamine Tube Construction
• Nickel-Plated Bronze Endcaps

Product Highlights

This fuse is essential for effective circuit protection in various electrical systems.

Product Information

Standard Information

• Brand: EATON BUSSMANN
• Series: KTK

Technical Specifications

• MPN: KTK-1
• UPC: 051712420105
• GTIN: 51712420105
• Current Rating: 1 Amp
• Voltage Rating: 600 VAC
• Fuse Type: Fast Acting
• Tube Material: Melamine
• Endcaps: Nickel-Plated Bronze
• Dimensions: 0.41 inches x 1.5 inches
• Interrupting Rating: 100,000 AIC RMS @ 600 VAC
• UL Listed: STD. 248-14, (Guide #JDYX, File #E19180)
• CSA Certified: C22.2 NO. 248.14 (File #53787?Class #1422-01)
