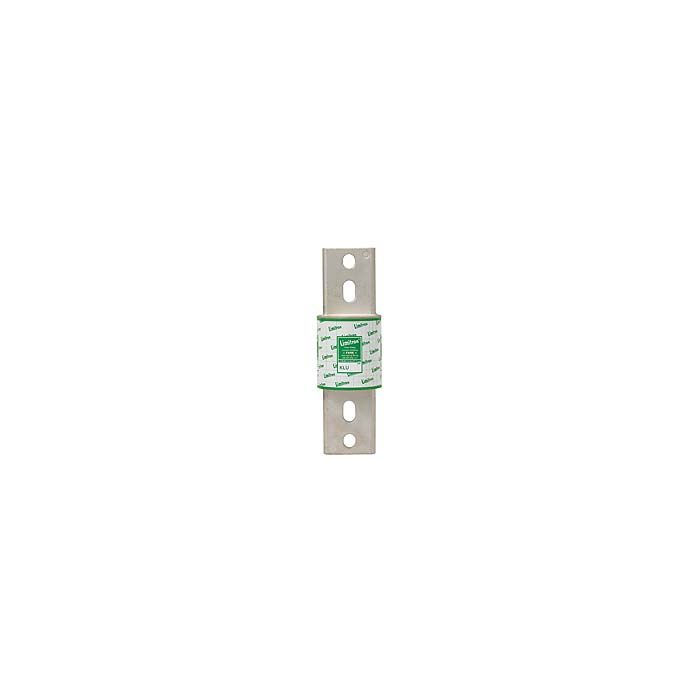

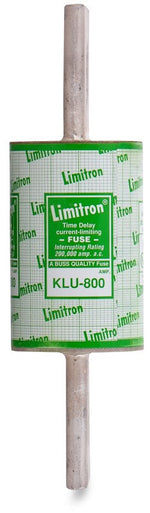

Eaton Bussmann KLU-800 Class L Time-Delay Fuse

Product Description

The Eaton Bussmann KLU-800 is a Class L time-delay fuse that provides essential circuit protection. It is designed for a voltage of 600VAC and features a minimum time delay of five seconds at five hundred percent of its rated current. This fuse is current-limiting and includes a bolt-mount design for easy installation.

• Class L time-delay with minimum five seconds delay at five hundred percent rated current
• Current-limiting functionality for enhanced safety
• Robust bolt mount design

Product Highlights

This fuse is essential for protecting circuits against overloads and short circuits, offering high interrupting ratings suitable for various applications.

Product Information

Standard Information

• Brand: Eaton Bussmann
• MPN: KLU-800
• UPC: 051712135054
• GTIN: 51712135054

Technical Specifications

• Amps: 800
• Voltage AC: 600
• Fuse Class: L
• Time Delay: Minimum 5 seconds
• Physical Size: 2.5 inches x 8.63 inches
• Interrupting Rating (VAC): 200,000 AIC RMS at 600VAC
• Interrupting Rating (VDC): 50,000 AIC at 340VDC
• Mounting Type: Bolt On
