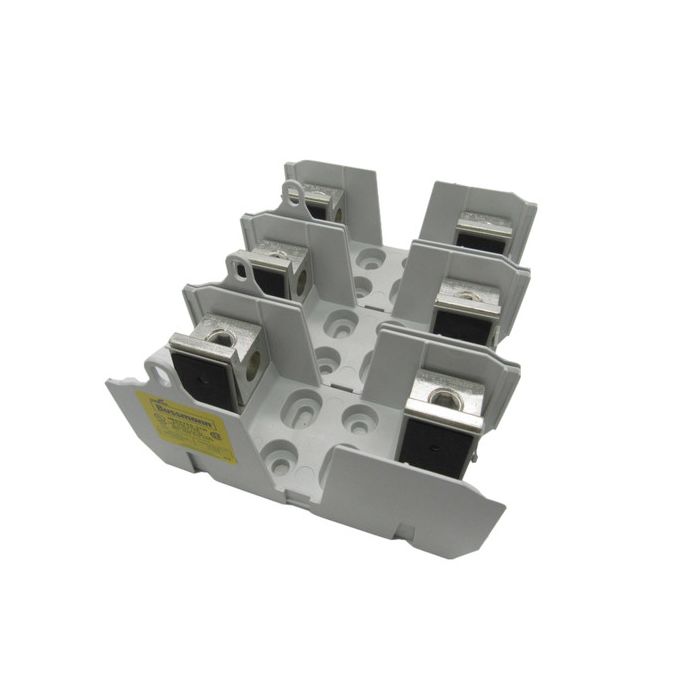

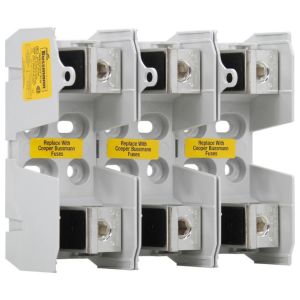

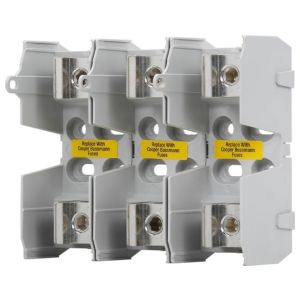

Eaton Bussmann JM60200-3CR Fuse Block

Product Description

The Eaton Bussmann JM60200-3CR is a three-pole modular fuse block built for UL Class J fuses. This product operates effectively at a voltage of six hundred volts AC and can handle a current of two hundred amps. It includes a box side clip connector, which accommodates aluminum or copper wire sizes ranging from three hundred fifty kcmil to number six. This product is spring reinforced and is part of the Bussmann JM Series, commonly used in power distribution applications.

• Three-pole configuration for versatile applications.
• Supports UL Class J fuses for reliable power management.
• Features box side clip connector for secure wiring.

Product Highlights

The fuse block is designed for safety and efficiency in electrical installations.

Product Information

Standard Information

• Amps: 200
• Volts AC: 600

Technical Specifications

• Poles: 3
• Fuse Class: UL Class J
• Connector Type: Box Side Clip
• Wire Size: Al/Cu 350kcmil - #6
• Fuse Interrupt Rating: 200 kAIC
• Rated Voltage: 600V
• Shape: Rectangular
• Fuse Amps: 110-200A
• Length: 7.25 inches
• Height: 3.76 inches
• Width: 6.25 inches
