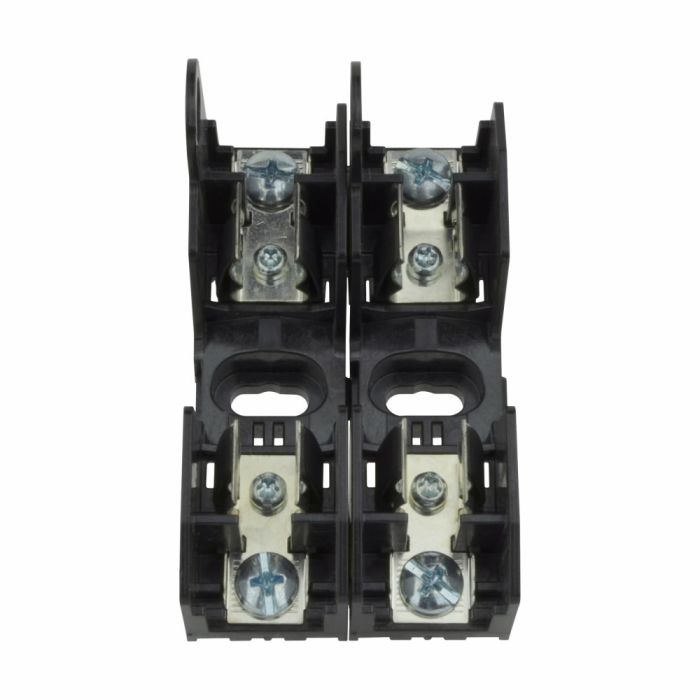

Eaton Bussmann HM25030-2SR Block Fuse 250V 0 to 30A H/K 18 to 10AWG

Product Description

The Eaton Bussmann HM25030-2SR is a modular fuse block with a voltage of 250V and amperage from 0 to 30A. Designed for Class H/K fuses and 18 to 10 AWG wire, this 2-pole block enhances safety in panel and electrical system designs. It features a fuse clip reinforcing spring to minimize temperature rise and maintain reliable surface contact.

• Modular Fuse Block
• Suitable for Class H/K fuses
• Accommodates 18 to 10 AWG wire

Product Highlights

This modular fuse block offers tool-less assembly, DIN rail and panel mount versatility, and easy circuit identification.

Product Information

Standard Information

• Brand: EATON BUSSMANN
• Manufacturer Part Number: HM25030-2SR
• Country of Origin: Mexico

Technical Specifications

• Voltage: 250 V
• Amperage: 0 to 30 A
• Class: Class K Class H
• Wire Gauge: 18 to 10 AWG
• Poles: 2
• Width: 2 in
• Height: 2 in
• Length: 3.2 in
• Series: HM Series
• Fuse Type: Cartridge
• Standards: CE, CSA Certified, REACH, RoHS, UL Listed
• Wire Size: 18 to 10 AWG
• Wire Range: 18 to 10 AWG
• Body Material: Thermoplastic
• For Fuse Size: 2 in L x 9/16 in dia
• Fuse UL Class: H, K5
• Connector Type: Screw
• Fits Fuse Type: Industrial
• Mounting Style: Bolt-Down; DIN Rail
• Voltage Rating: 250V AC/125V DC
• Number of Poles: 2
• Fuse Block Style: Nonrejection
• Fuse Holder Code: H
• Fuse Block Design: Open
• Visual Indication: Nonindicating
• Spring Reinforced Clip: Yes
• Length (Straight Wireway): 3.2 in
• Short Circuit Current (KA): 10kA
• Green Environmental Attribute: RoHS 2011/65/EU Compliant
• Fuse Block or Fuse Holder Type: Fuse Block
• Amp Range of Fuse Block or Holder: 0 to 30A
• Fuse Block or Holder AC Voltage Rating: 250VAC
• Fuse Block or Holder DC Voltage Rating: 125VDC
• Product Name: Eaton Bussmann series HM modular fuse block
• Catalog Number: HM25030-2SR
• UPC: 051712512725
• Product Length/Depth: 3.188 in
• Product Height: 2 in
• Product Width: 2 in
• Product Type: Modular fuse block
• Amperage Rating: 0-30A
• Short-circuit rating: 10 kA
• Number of poles: Two-pole
• Special features: SR
• Connection Type: Phillips® Slot Screw
• Mounting Type: DIN Rail/Panel
• Fuse Length: 2 in
• Fuse Diameter: 0.56 in
• Temperature Rating: -40 to 120 deg C
• Suitable For Use With: NON Class H Ferrule Fuse
• Material: Thermoplastic
• Application: For electrical assemblies/panels/EOEMs
• Standard & Approvals: ARRA, Buy American Act Compliant, UL Listed, E14853, Guide IZLT and IXLT2, CSA Certified, Class 6225-01, File 47235, RoHS Compliant
• Fuse Holder Type: Modular Fuse Holder
• Fuse Current: 30A
• Fuse Size Held: Class H
• Holder Terminals: Screw
• No. of Fuses: 2Fuses
• Product Range: HM Series
• Voltage Rating VAC: 250V
• Voltage Rating VDC: -
• Category: Circuit Protection
• Fuseholders: Fuseholders
• Mfr: Eaton - Bussmann Electrical Division
• Packaging: Bulk
• Part Status: Active
• Current Rating (Amps): 30 A
• For Use With/Related Products: Class H
• Fuseholder Type: Block
• Number of Circuits: 2
• Orientation: Horizontal
• Termination Style: Screw Terminal
• Contact Material: Copper
• Contact Finish: Tin
