EATON BUSSMANN GMC-3-R 3A 250VAC Low Breaking Medium Time Delay Fuse

Product Description

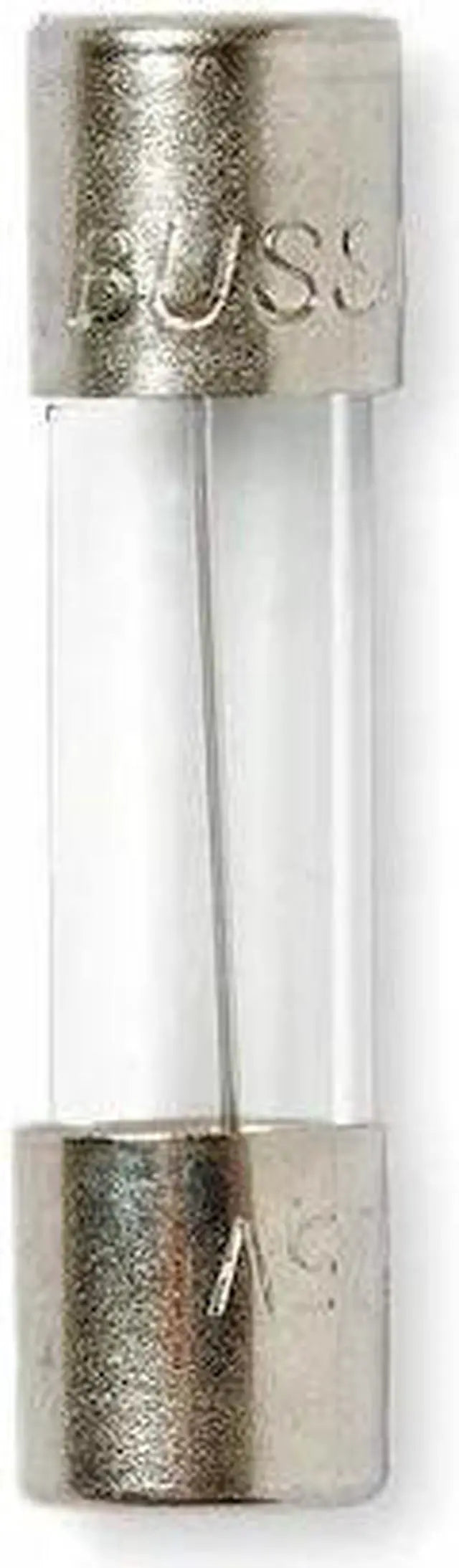

The EATON BUSSMANN GMC-3-R is a low breaking medium time-delay fuse designed specifically for electronic circuits. This fuse provides essential overcurrent protection in various settings, including automotive systems and industrial control panels. With a cylindrical glass body and nickel-plated brass end caps, it meets UL/CSA 248-14 standards ensuring reliable performance for sensitive electronic equipment.

• Amperage rating of three Amperes
• Voltage rating of two hundred fifty Volts AC
• Medium time-delay to avoid unnecessary interruptions

Product Highlights

This fuse safeguards electronic systems by managing current flow effectively and preventing damage from overcurrent.

Product Information

Standard Information

• Brand: Eaton Bussmann series
• Series: GMC

Technical Specifications

• Type: Low Breaking Medium Time Delay
• Amperage Rating: 3 A
• Voltage Rating: 250 VAC
• Interrupt Rating: 100 A/10 kA
• Response Time: 60 min, 2 min
• Terminal Type: Ferrule
• Body Type: Cylindrical
• Body Size: 5.2 mm Dia x 20 mm L
• Fuse Size: 5 x 20 mm
• Fuse Material: Glass
