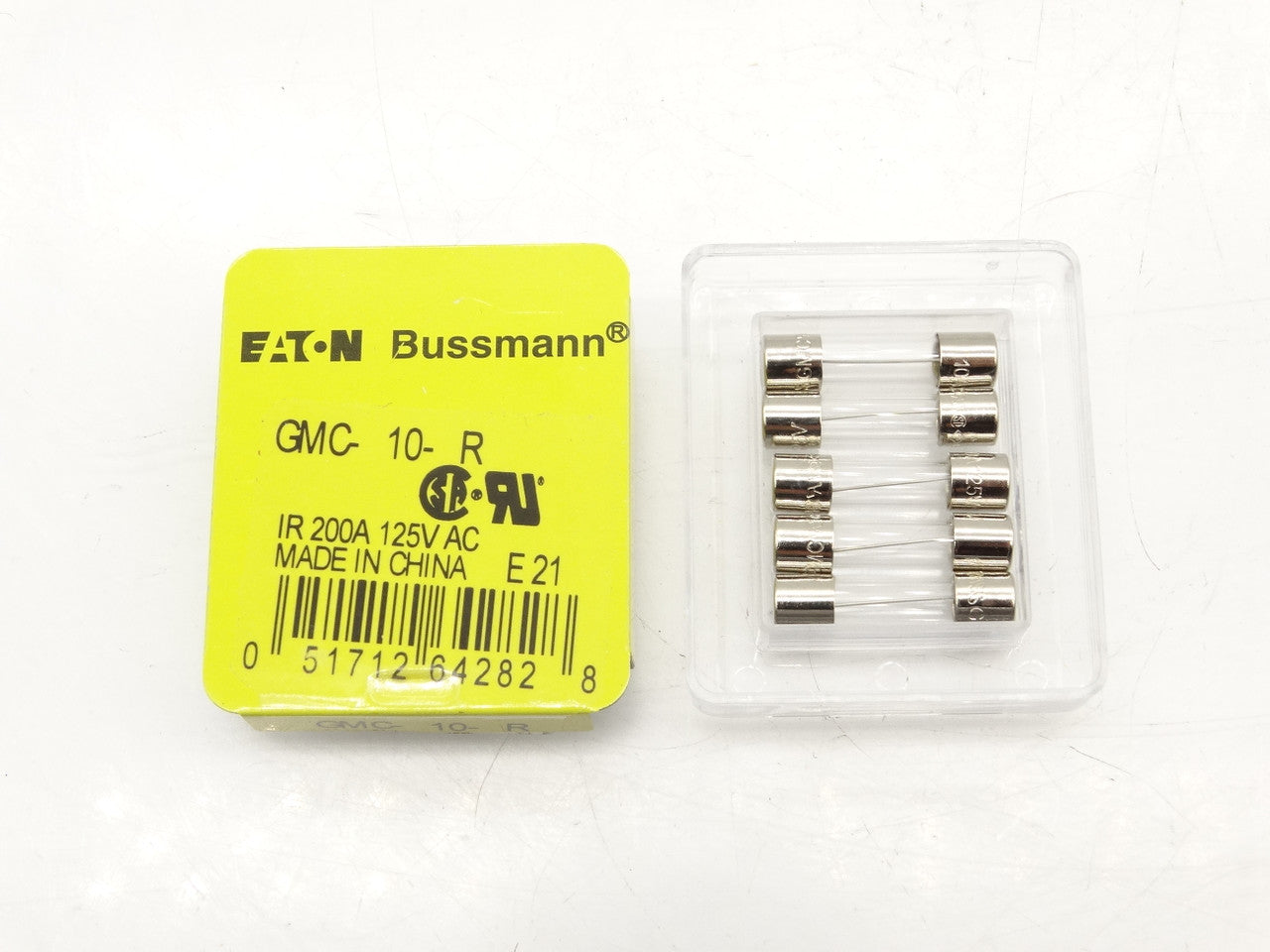

EATON BUSSMANN GMC-10-R Medium Time-Delay Fuse 10A 125VAC

Product Description

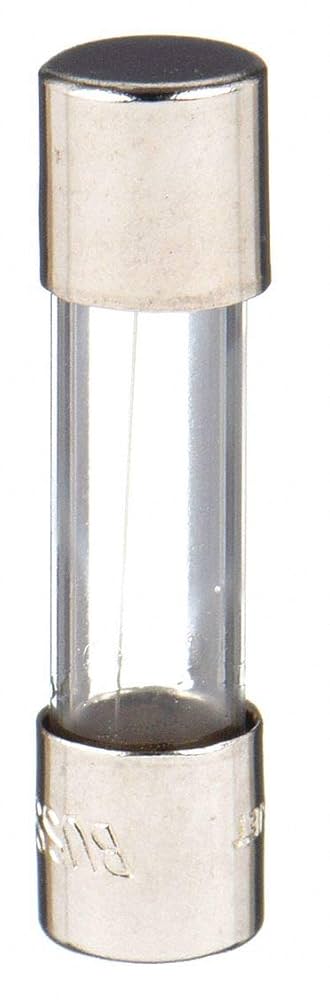

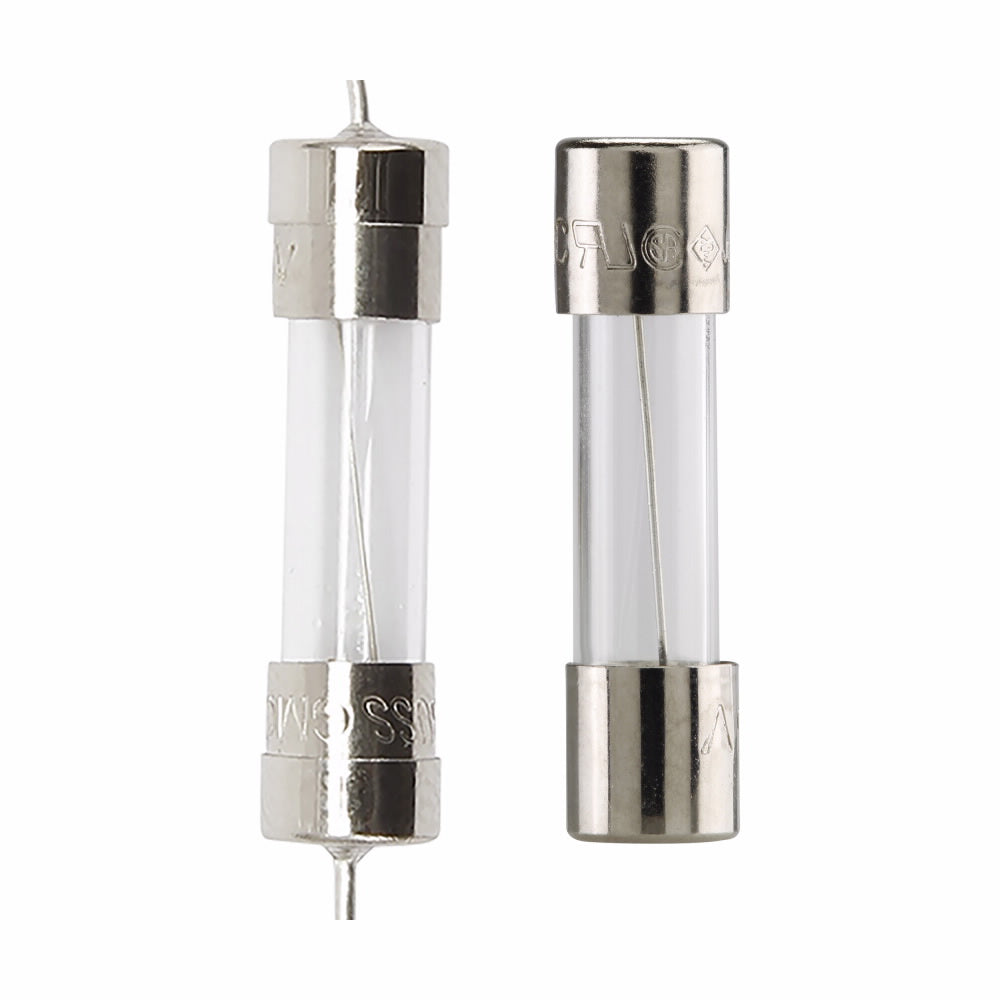

The EATON BUSSMANN GMC-10-R is a medium time-delay fuse that offers effective overcurrent protection for electronic circuits. This product is part of the GMC series and features a cylindrical glass tube body complemented with nickel-plated brass end caps. Designed for holder mounting, the GMC-10-R is a non-indicating fuse with ferrule terminals. It reliably interrupts currents of up to 200A at a voltage rating of 125VAC, making it a suitable choice for Bussmann series fuse holders, blocks, or clips.

• Medium time-delay fuse for reliable overcurrent protection.
• Cylindrical glass body with durable nickel-plated brass end caps.
• Rated for 10A amperage and 125VAC voltage.

Product Highlights

This fuse ensures enhanced protection in various electrical applications, providing vital circuit interruption when needed.

Product Information

Standard Information

• Brand: Eaton Bussmann series
• Series: GMC

Technical Specifications

• Type: Low Breaking Medium
• Indicating/Non-Indicating: Non-Indicating
• Rejection/Non-Rejection: Non-Rejection
• Amperage Rating: 10 A
• Voltage Rating: 125 VAC
• Interrupt Rating: 200 A
• Response Time: 60 min, 2 min
• Terminal Type: Ferrule
• Mounting Type: Holder
• Body Type: Cylindrical
• Element: Single
• Material: Glass (Body); Brass (End Cap)
• Body Size: 5.2 mm Dia x 20 mm L
• Fuse Size: 5 x 20 mm
• Acting: Medium Time Delay
