Product Description

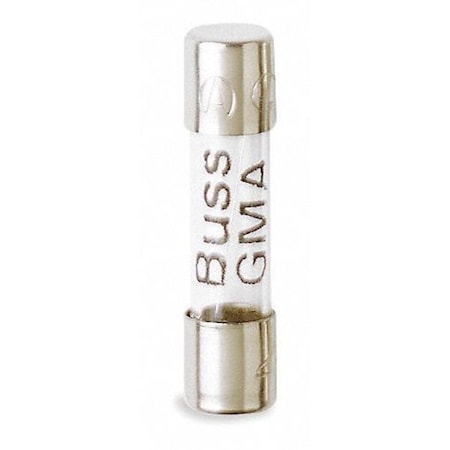

The Eaton Bussmann GMA-4-R is a miniature fast-acting glass fuse rated 4 A at 125 V AC with a 20 mm x 5 mm cylindrical single-element body and visual indication. It has a 10 kA interrupt rating at 125 V AC and a nonrejection style compatible with HTB fuse blocks. The fuse meets CE, UL, CSA, and PSE standards and is RoHS compliant, supplied in packs of five.

• Fast-acting glass fuse, 4 A current rating at 125 V AC with single-element construction and visual indication
• 10 kA interrupt rating at 125 V AC; nonrejection style compatible with HTB fuse blocks
• Approvals: CE, UL Guide JDYX (File E19180), CSA Class 1422-01 (File 53787), PSE; RoHS 2011/65/EU compliant; pack quantity: 5

Product Highlights

4 A fast-acting glass fuse, 20mm x 5mm, 10 kA interrupt rating, CE/UL/CSA/PSE certified, RoHS compliant.

Product Information

Standard Information

• Brand: EATON BUSSMANN
• Manufacturer Part Number: GMA-4-R
• Country of Origin: China

Technical Specifications

• Brand: Eaton Bussmann
• MPN: GMA-4-R
• Series: GMA
• Item: Miniature fuse
• Fuse Type: Glass
• Element: Single
• Speed: Fast acting
• Current Rating: 4 A
• AC Voltage Rating: 125 V AC
• DC Voltage Rating: Not rated
• Fuse Size: 20 mm x 5 mm
• Length: 20 mm
• Diameter: 5 mm
• Body Style: Cylindrical
• Visual Indication: Glass body indicating
• Interrupt Rating: 10 kA at 125 V AC
• Rejection Style: Nonrejection
• Compatible Fuse Block Series: HTB
• Standards/Certifications: CE; UL Guide JDYX (File E19180); CSA Class 1422-01 (File 53787); PSE
• RoHS Compliance: RoHS 2011/65/EU
• Pack Quantity: 5
• Weight: 0.002 lb
• Country of Origin: China
• Equivalent Series: Littelfuse 235; Mersen GGM
