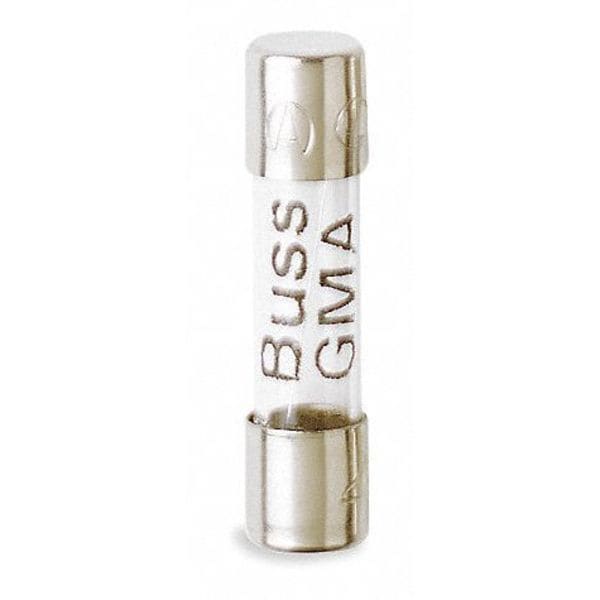

Eaton Bussmann gma-1.6-r Glass Fuse 1.6A 250V 5-pack

Product Description

The EATON BUSSMANN gma-1.6-r is a fast-acting, single-element glass fuse rated at 1.6 amps and 250 volts AC. Part of the GMA Series, this cylindrical fuse measures 5mm in diameter and 20mm in length, conforming to the standard 5x20mm form factor widely used in electronic equipment, control panels, and instrumentation. The fuse features a non-rejection body style and is sold in a 5-pack. It is specified for applications requiring a fast-acting response to overcurrent events, providing reliable short-circuit protection in low-current circuits.

This fuse is suited for residential and light commercial electronic equipment, instrumentation panels, and control circuits where a 5x20mm glass fuse is the specified protection device. It is compatible with the HTB series fuse block for secure, code-compliant mounting. Electricians and electronics technicians specify this series for PCB-mounted fuseholders, inline fuse clips, and panelboard applications where compact, fast-acting overcurrent protection is required.

Key Features

• Fast-acting response for protection of sensitive electronic components
• Single-element design in a non-rejection cylindrical body
• Interrupt rating of 100A at 250V AC and 10kA at 125V AC
• Glass body construction for quick visual inspection of blown fuse condition
• Compatible with HTB series fuse blocks
• Sold in a 5-pack for service and replacement convenience

Compatibility

Cross-references to equivalent series including Littelfuse 235, Mersen GGM, and Bussmann GMA. Compatible fuse block series: HTB.

Installation Notes

Installation should be performed by a qualified electrician or electronics technician. De-energize and lock out the circuit before replacing any fuse. Verify the replacement fuse rating matches the original specification before installation. Consult applicable NEC guidelines and equipment manufacturer documentation for proper fuse sizing and fuseholder mounting requirements.

Technical Specifications

• Current Rating: 1.6A
• Voltage Rating: 250V AC
• Interrupt Rating: 100A at 250V AC; 10kA at 125V AC
• Fuse Series: GMA
• Fuse Type: Fast-Acting, Single Element
• Body Style: Cylindrical, Non-Rejection
• Body Material: Glass
• Diameter: 0.197 inches (5mm)
• Length: 0.787 inches (20mm)
• Pack Quantity: 5
• Certifications: CE, CSA Class 1422-01 (File 53787), UL (File E19180, Guide JDYX), PSE
• Country of Origin: China

Standard Information

• Brand: EATON BUSSMANN
• Manufacturer Part Number: gma-1.6-r
