Eaton Bussmann FRS-R-9 Fuse Dly Time 9A 600 VAC/300 VDC RK5 Cyl

Product Description

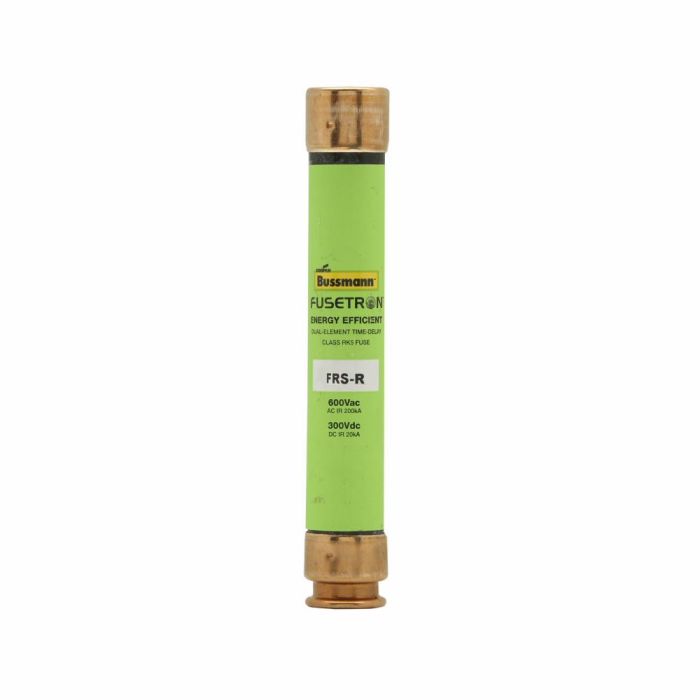

The EATON BUSSMANN FRS-R-9 is a current limiting renewable time delay fuse. Rated at 9 A and 600 VAC/300 VDC, it features a 20/200 kA interrupt rating and a cylindrical body. This RK5 class fuse is designed for use in fuse blocks with rejection style and offers a dual element for time delay.

• Current Limiting
• Renewable
• Time Delay

Product Highlights

The FRS-R-9 fuse provides time delay, dual-element, and current limiting protection. It is suitable for motor overload, ground fault, and short circuit protection.

Product Information

Standard Information

• Brand: EATON BUSSMANN
• Manufacturer Part Number: FRS-R-9
• Country of Origin: Mexico

Technical Specifications

• Amperage: 9 A
• Voltage: 600 VAC/300 VDC
• Interrupt Rating: 20/200 kA
• Class: RK5
• Body Style: Cylindrical
• Amps: 9A
• Length: 5"
• Series: FRS-R
• Element: Dual
• Diameter: 13/16"
• Fuse Amps: 9A
• Standards: CE, CSA Certification Class 1422-01, UL 248-12 Guide JDDZ
• Fuse Speed: Time Delay
• Body Material: Fiberglass
• Connection Type: Ferrule End x Ferrule End
• Fuse Holder Code: P
• AC Voltage Rating: 600V AC
• DC Voltage Rating: 300V DC
• Equivalent Series: ECSR, FLSR, FRS-R, TRS-R
• Visual Indication: Nonindicating
• Fuse Voltage Rating: 600VAC/300VDC
• Fits Fuse Block Style: Rejection
• Functionally Equal To: Littelfuse FLSR, Mersen/Ferraz Shawmut TRS-R
• Fuse Interrupt Rating: 200kA at 600VAC, 20kA at 300VDC
• Rejection / Nonrejection: Rejection
• Indicating / Nonindicating: Nonindicating
• Equivalent Brand and Series: Bussmann FRS-R, Edison ECSR, Littelfuse FLSR, Mersen TRS-R
• Compatible Fuse Block Series: 1BR, R600
• Product Name: Eaton Bussmann series FRS-R fuse
• Catalog Number: FRS-R-9
• UPC: 051712508278
• Product Length/Depth: 5 in
• Product Height: 0.81 in
• Product Width: 0.81 in
• Compliances: CE Marked
• Product Type: Fuse
• Amperage Rating: 9 A
• Response time: 10 sec at 500%
• Voltage rating: 600 Vac, 300 Vdc
• Number of elements: Dual
• Packaging type: Standard
• Connection: Ferrule end x ferrule end
• Fuse indicator: Non-indicating
• Manufacturer: EATON
• Type: Current Limiting Renewable
• Response Time: 10 s at 500%
• Terminal Type: Ferrule
• Mounting Type: Holder
• Material: Fiberglass
• Body Size: 0.81 in Dia x 5 in L
• Current Type: AC
• Fuse Classification: Current-Limiting
• Protection Device: Dual Function
• Orientation: Horizontal/Vertical
• Operation Method: On/Off
• Fuse Body Type: Cartridge
• Fuse Type: D-Type Cartridge
• Number in Pack: 1
• Features: Thermal Overload Protection
• Protection Properties: Short Circuit Protection
• Mounting Style: Clip-On
• Number of Phases: 1
• Electrical Connection: Clamp Terminal
• Model: FRS-R-9
• Number of Poles: 1
• Number of Ways: 1
