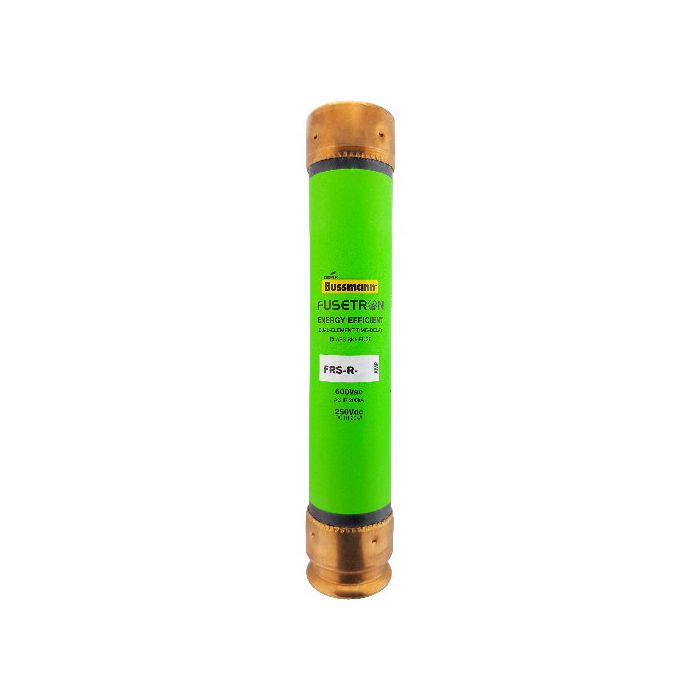

EATON BUSSMANN FRS-R-50 Fuse 50A Class RK5

Product Description

The EATON BUSSMANN FRS-R-50 is a Class RK5 fuse suitable for circuit protection. This fuse uses a dual-element, time-delay design that allows it to handle temporary overloads without circuit interruption. With a strong interrupting capacity of 200,000 amps at 600 volts AC and 20,000 amps at 300 volts DC, it ensures reliability in critical applications. It is certified with UL and CSA standards, making it compliant for various electrical systems.

• Amperage: 50A
• UL Listed and CSA Certified
• Time delay feature for temporary overloads

Product Highlights

Engineered for robust circuit protection and reliability in demanding environments.

Product Information

Standard Information

• Manufacturer: Bussmann
• Part Number: FRS-R-50

Technical Specifications

• Amperage: 50
• Voltage: 600 Volts AC
• Fuse Class: RK5
• Element: Dual
• Time Delay: Yes
• Dimensions: 1.06 inches x 5.5 inches
• Interrupting Rating: 200 kAIC @ 600V
• Interrupting Rating DC: 20 kAIC @ 300 Vdc
