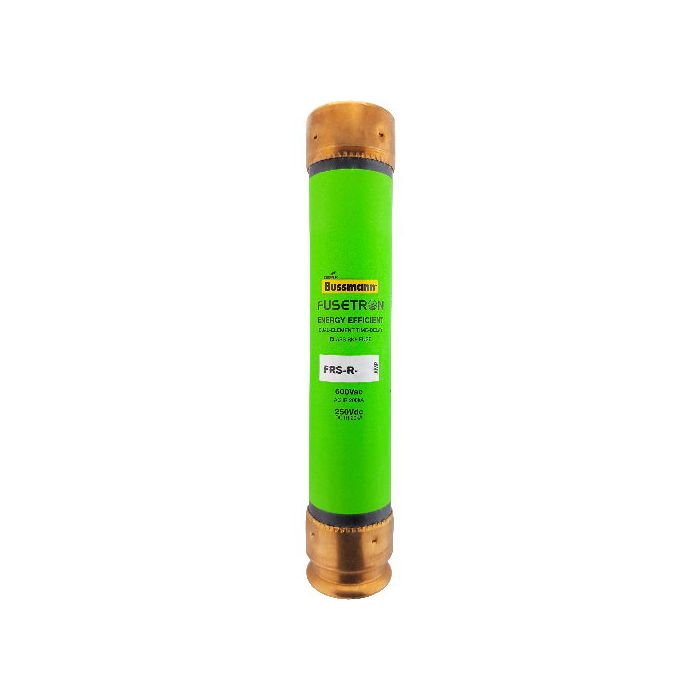

EATON BUSSMANN FRS-R-40 Fuse 40A 600V AC RK5

Product Description

The EATON BUSSMANN FRS-R-40 is a fuse rated for 40 Amps and 600 Volts AC. This UL Class RK5 fuse features dual elements and time-delay characteristics, making it suitable for various electrical applications. It measures one point zero six inches by five point five inches.

• Amperage: 40A
• Voltage Rating: 600V AC
• Interrupting Rating: 200,000 AIC RMS

Product Highlights

This fuse is designed to protect circuits from overloads and short circuits while providing reliable performance in critical environments.

Product Information

Standard Information

• Amperage: 40
• Voltage: 600 Volts AC

Technical Specifications

• Class: RK5
• Element: Dual Element
• Time Delay: Yes
• Physical Size: 1.06 x 5.5 inches
• Interrupting Rating: 200,000 AIC RMS
• Interrupting Rating DC: 20 kAIC at 300 Vdc
• Current-limiting: Yes
• UL Listing: UL Listed, Class RK5, Guide JDDZ, File E4273
• CSA Certification: CSA Certified, Class 1422-01, File 53787
