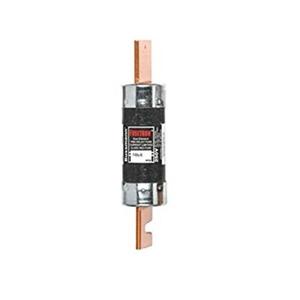

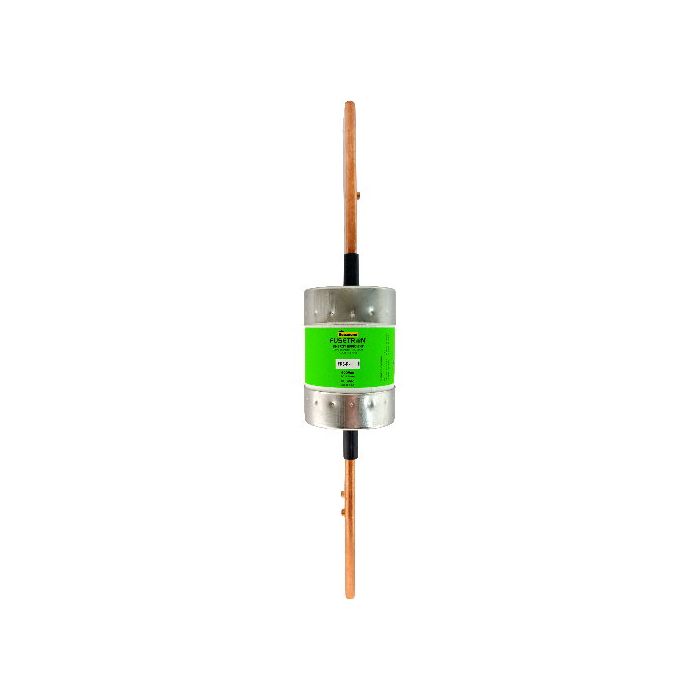

EATON BUSSMANN FRS-R-350 Fuse 350A Class RK5 Time Delay

Product Description

The EATON BUSSMANN FRS-R-350 is a fuse designed for overcurrent protection in various electrical applications. This fuse features a class RK5 rating and is ideal for motor overload and short circuit protection. It is a dual-element, current-limiting fuse that ensures safety during temporary overloads, thanks to its time-delay function.

• Amperage rating of three hundred fifty amps
• Resistant to short circuits with an interrupting rating of two hundred kA at six hundred VAC
• UL Listed and CSA certified for reliable performance

Product Highlights

Engineered to protect electrical systems from overloads and faults, this fuse supports safe operation under surge conditions.

Product Information

Standard Information

• Brand: EATON BUSSMANN
• MPN: FRS-R-350

Technical Specifications

• Amperage Rating: 350 A
• Voltage Rating: 600 VAC / 300 VDC
• Class: RK5
• Element: Dual
• Time Delay: Yes
• Interrupting Rating: 200 kA
• Mounting Type: Holder
• Body Type: Cartridge
• Body Size: 2.34 inches in diameter x 11.63 inches long
• Terminal Type: Knife Blade
• Series: FRS-R
• Response Time: 10 seconds
• Material: Fiberglass
• Indicating/Non-Indicating: Non-Indicating
• Rejection/Non-Rejection: Rejection
• Current-limiting: Yes
• Approvals: CE, UL, CSA
• Shape: Cartridge Fuses
• Item Weight: 3.67 lbs
