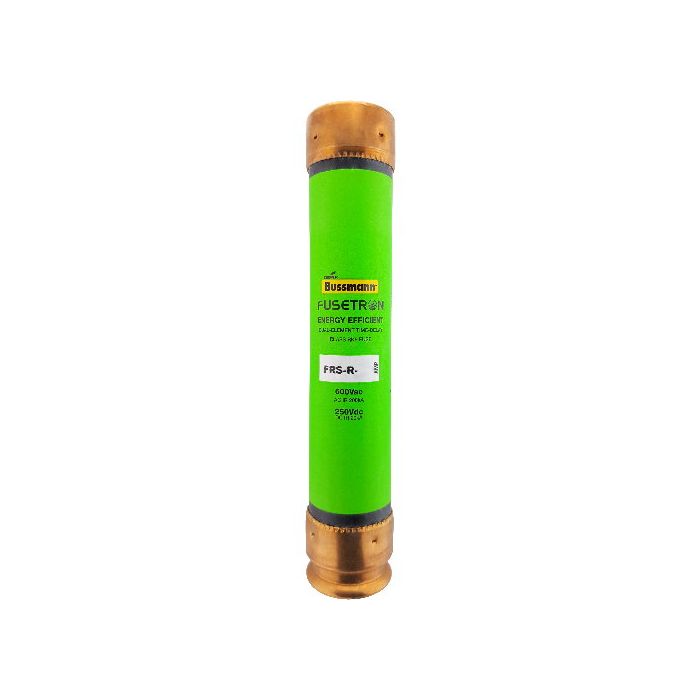

EATON BUSSMANN FRS-R-35 Fuse, Class RK5, Time Delay, 35A, 600V

Product Description

The Eaton Bussmann FRS-R-35 is a time-delay fuse designed for reliable circuit protection. With a current rating of thirty-five amps and a voltage rating of six hundred volts AC, this Class RK5 fuse ensures safety in electrical systems. It features a dual-element design that limits current and improves operational efficiency.

• Current-limiting fuse suitable for diverse applications
• Time delay of ten seconds at five hundred percent rated load
• UL Listed and CSA Certified for safety compliance

Product Highlights

Ideal for use in industrial and commercial environments where overcurrent protection is essential.

Product Information

Standard Information

• Brand: Eaton Bussmann
• MPN: FRS-R-35

Technical Specifications

• Amperage: 35 Amps
• Voltage: 600 Volts AC / 300 Volts DC
• UL Class: RK5
• Element: Dual Element
• Time Delay: 10 seconds at 500% rated load
• Interrupting Rating: 200,000 AIC RMS symmetrical / 20,000 AIC DC
• Terminal Type: Ferrule
• Dimensions: 1.06 inches x 5.5 inches
