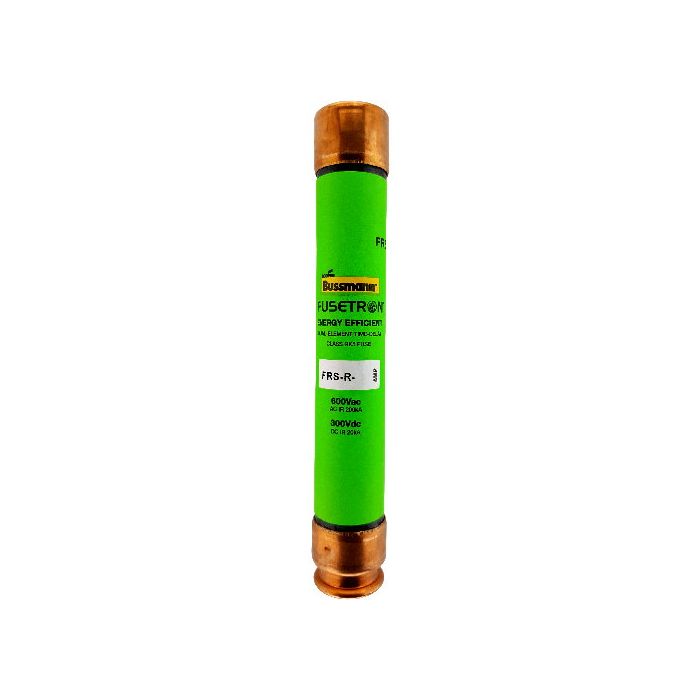

EATON BUSSMANN FRS-R-20 Fuse 20A 600V AC RK5

Product Description

The EATON BUSSMANN FRS-R-20 is a fuse designed for circuit protection. It has a current rating of twenty amperes and a voltage rating of six hundred volts alternating current. This fuse features a dual-element design with time-delay functionality. Its physical dimensions are zero point eight one inches by five inches.

• Current Limiting Capabilities
• Interrupting Rating of 200,000 AIC RMS
• UL Listed and CSA Certified

Product Highlights

This fuse is suitable for applications requiring reliable protection against overcurrent. Its time-delay properties help manage inrush currents effectively.

Product Information

Standard Information

• Amperage: 20 A
• Voltage Rating: 600 V AC

Technical Specifications

• Fuse Class: RK5
• Element: Dual Element
• Time Delay: Yes
• Body Size: 0.81 x 5 inches
• Interrupting Rating AC: 200,000 AIC RMS
• Interrupting Rating DC: 20 kAIC at 300 V DC
• Standards: UL Listed, Class RK5, Guide JDDZ, File E4273
• Certifications: CSA Certified, Class 1422-01, File 53787
