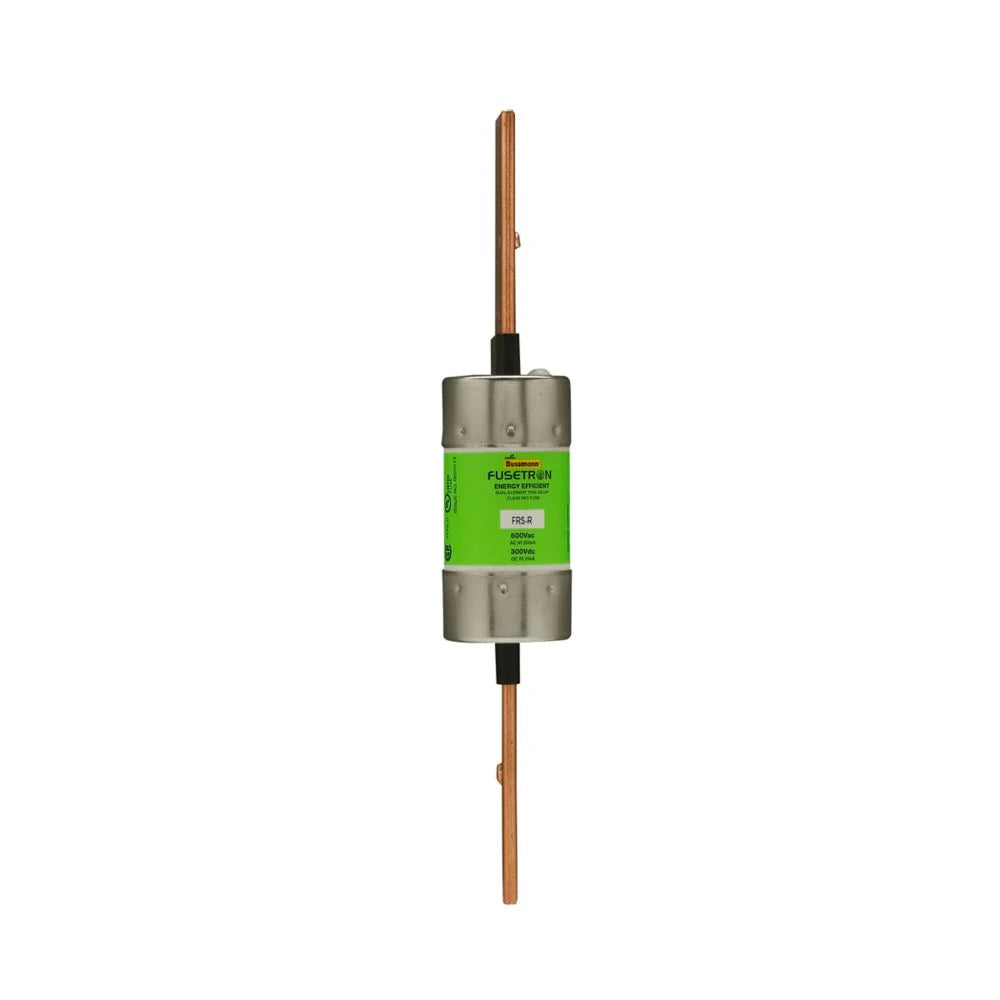

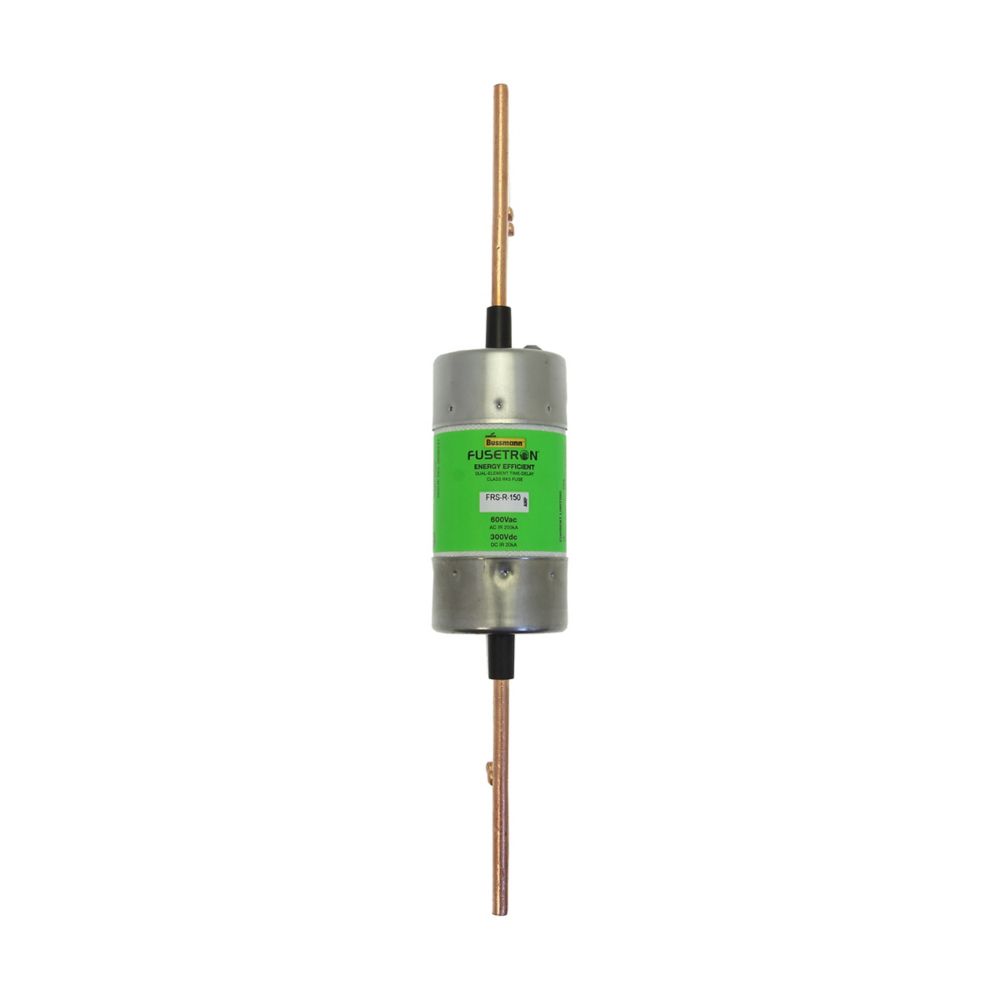

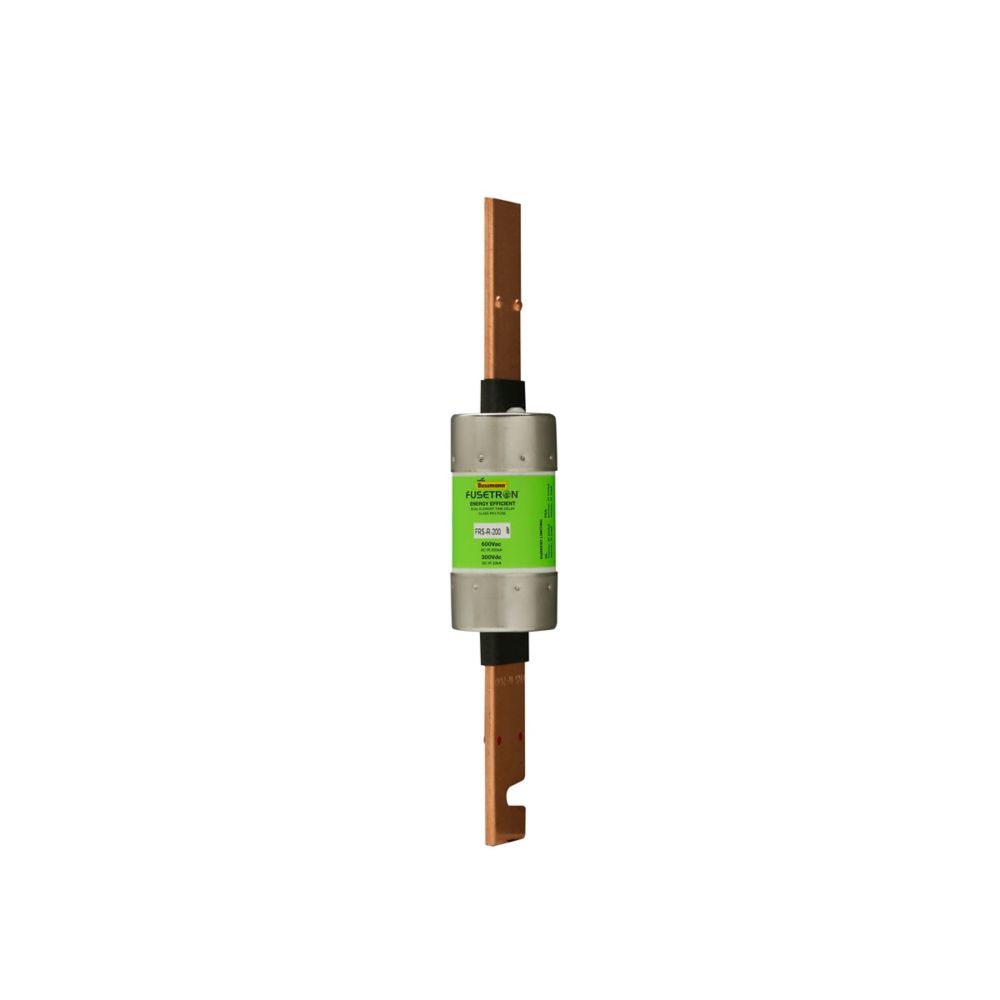

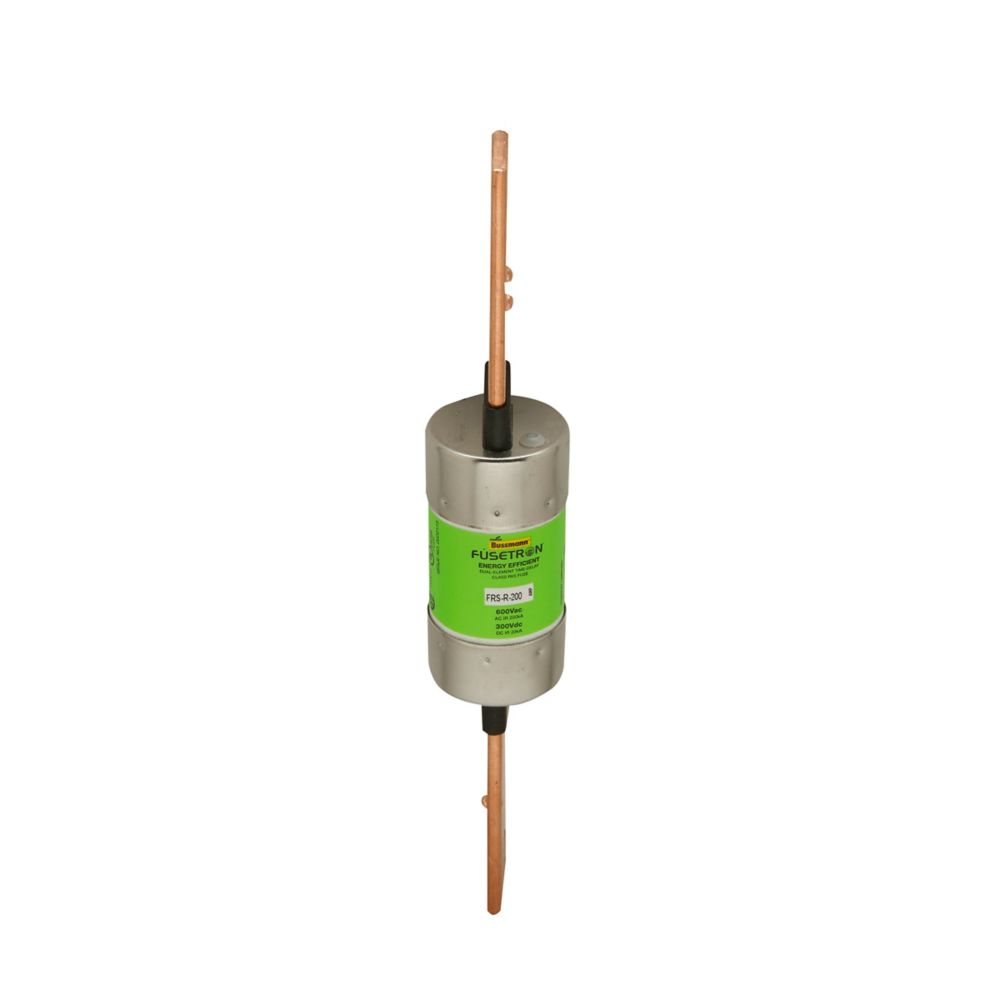

EATON BUSSMANN FRS-R-150 Class RK5 Time-Delay Fuse

Product Description

The EATON BUSSMANN FRS-R-150 is a Class RK5, time-delay, dual-element, current limiting fuse designed for effective circuit protection. This fuse has a dual-element construction that allows for enhanced safety and performance.

• Rated current capacity of one hundred fifty amperes.
• Interrupting rating of two hundred thousand amperes at six hundred volts AC and twenty thousand amperes at three hundred volts DC.
• Time-delay feature that provides a minimum of ten seconds at five hundred percent of the rated load.

Product Highlights

This time-delay fuse is ideal for protecting electrical circuits in various applications, offering reliable performance for industrial settings.

Product Information

Standard Information

• Brand: EATON BUSSMANN
• MPN: FRS-R-150

Technical Specifications

• Type: Class RK5
• Current Rating: 150 Ampere
• Voltage Rating: 600 Vac / 300 Vdc
• Interrupting Rating: 200000 Ampere (symmetrical), 20000 Ampere (DC)
• Length: 9.63 inches
• Diameter: 1.84 inches
• Approval: UL 248-12, CSA, CE
• Terminal Type: Blade
• Additional Information: Current limiting
• Time Delay: 10 seconds time delay (at 500 percent rated load)
• Element: Dual element
• Family: Fusetron
• Dimensions (HxWxD): 5 x 0.81 x 0.81 inches
