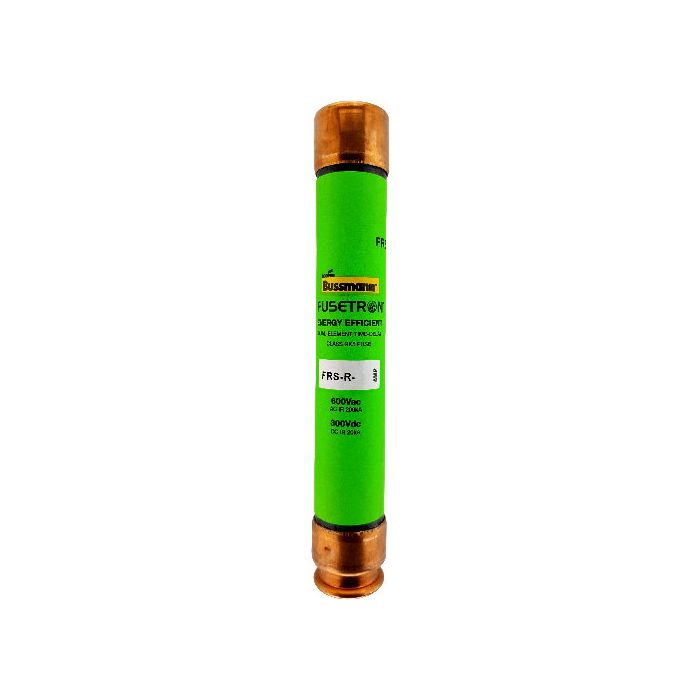

Eaton Bussmann FRS-R-10 Fuse, 10A, 600V, RK5

Product Description

The Eaton Bussmann FRS-R-10 is a fuse designed for high voltage applications. This device operates at six hundred volts AC and can handle a current of ten amps. It features a dual-element, time-delay design which helps to manage current surges effectively.

• Amperage: 10A
• Voltage Rating: 600V AC
• Interrupting Rating: 200kAIC RMS

Product Highlights

The FRS-R-10 provides reliable protection for electrical circuits. With a current-limiting capability, it minimizes damage during fault conditions.

Product Information

Standard Information

• Brand: Eaton Bussmann
• MPN: FRS-R-10

Technical Specifications

• Amperage: 10 A
• Voltage: 600 V AC
• Fuse Class: RK5
• Element: Dual
• Time Delay: Yes
• Body Size: 0.81 inches x 5 inches
• Interrupting Rating: 200 kAIC RMS
• Interrupting Rating @ Voltage: 20 kAIC @ 300 Vdc
• Listing: UL Listed, Class RK5, Guide JDDZ, File E4273
• Certification: CSA Certified, Class 1422-01, File 53787
