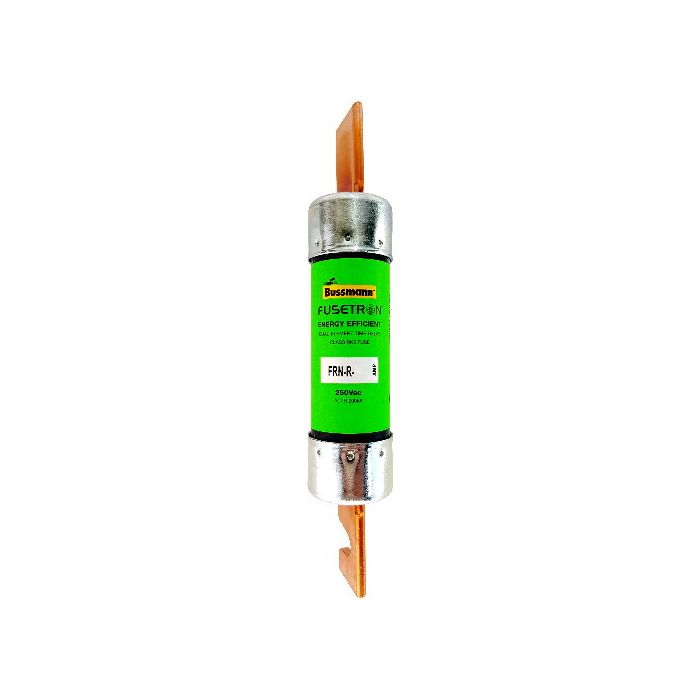

Eaton Bussmann FRN-R-80 Fuse Class RK5 80A Time Delay

Product Description

The Eaton Bussmann FRN-R-80 is a Class RK5 fuse designed for effective overload protection. It operates at an amperage of eighty and features a time delay essential for handling temporary motor overloads and surge currents. The fuse showcases a robust fiberglass construction and is fitted with blade terminals for easy installation. This fuse limits current to safeguard your circuits against defined fault conditions.

• Class RK5 with time delay functionality.
• Current limiting to protect against overloads.
• Suitable for use in circuits with temporary overloads.

Product Highlights

Ideal for HVAC systems, electrical panels, and various industrial applications, this fuse ensures reliable performance under surge conditions.

Product Information

Standard Information

• Brand: Eaton Bussmann
• MPN: FRN-R-80

Technical Specifications

• Amperage Rating: 80 A
• Voltage Rating: 250 VAC / 125 VDC
• Class: RK5
• Type: Current Limiting
• Series: FRN-R
• Element: Dual
• Time Delay: Yes
• Interrupting Rating: 200 kA at 250 VAC, 20 kA at 125 VDC
• Body Type: Cartridge
• Terminal Type: Blade
• Material: Fiberglass
• Body Size: 1.06 inches diameter x 5.88 inches length
• Response Time: 10 seconds at 500%
• Indicating/Non-Indicating: Non-Indicating
• UL Listed: Class RK-5, Guide JDDZ, File E4273
• CSA Certified: C22.2 No. 248.12, Class 1422-01, File 53787
