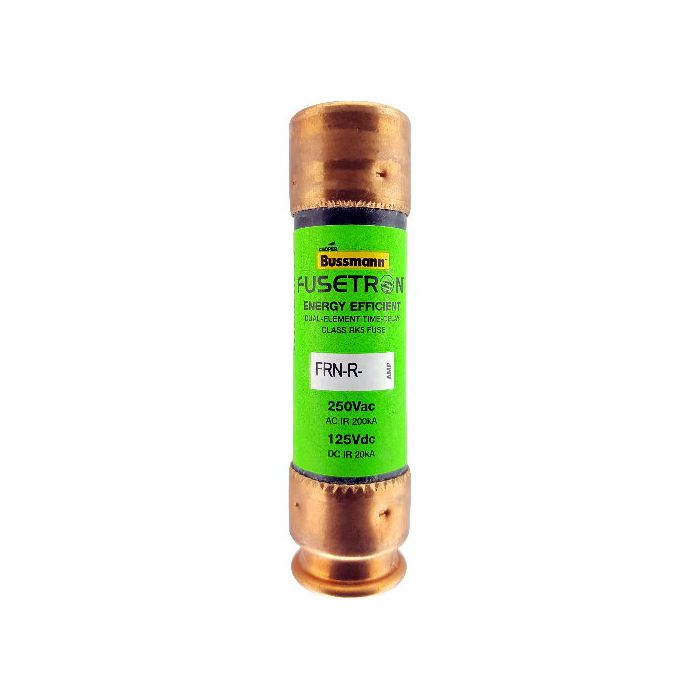

EATON BUSSMANN FRN-R-45 Fuse

Product Description

The Eaton Bussmann FRN-R-45 is a Class RK5 fuse, designed for overcurrent protection in both AC and DC circuits. It features a dual-element, time-delay design suitable for various applications. With an AC voltage rating of two hundred fifty volts and a DC voltage rating of one hundred twenty-five volts, this fuse serves a critical role in electrical systems.

• Amperage: 45A
• Voltage Rating: 250VAC / 125VDC
• Interrupting Rating: 200,000 AIC at 250 VAC and 20,000 at 125 VDC

Product Highlights

The FRN-R-45 fuse is UL Listed and CSA Certified, ensuring safety and reliability in electrical installations. It provides essential protection against overcurrent, helping to prevent damage to circuits.

Product Information

Standard Information

• Brand: Eaton Bussmann
• MPN: FRN-R-45

Technical Specifications

• Amperage: 45 A
• Voltage Rating: 250 Volts AC
• Class: RK5
• Element: Dual Element
• Time Delay: Time Delay
• Dimensions: 0.91 x 3 inches
• AC Voltage Rating: 250
• Interrupting Rating: 20,000 @ 125 VDC
• DC Voltage Rating: 125
• UL Listed: Class RK-5, Guide JDDZ, File E4273
• CSA Certified: C22.2 No. 248.12, Class 1422-01, File 53787
