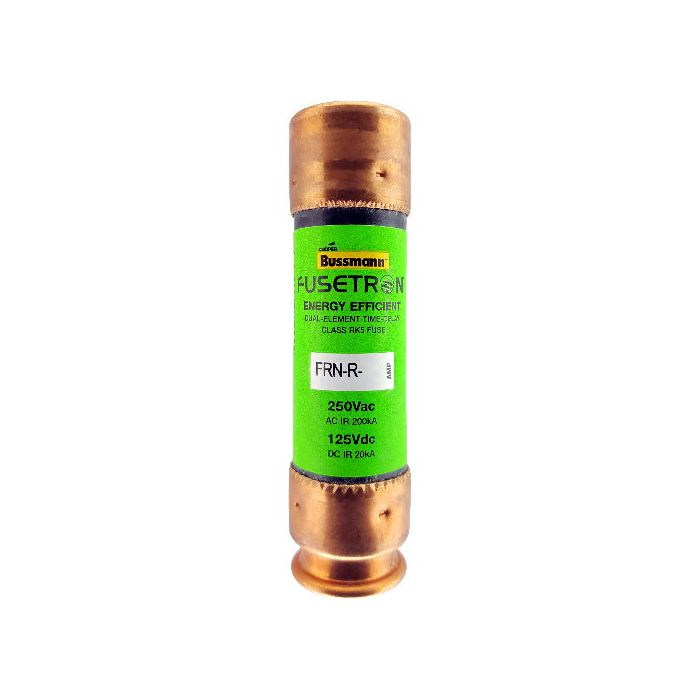

EATON BUSSMANN FRN-R-35 Fuse 35A 250V

Product Description

The EATON BUSSMANN FRN-R-35 is a Class RK5, time-delay fuse designed for overload and short-circuit protection in both AC and DC circuits. Its dual-element construction ensures reliable performance under varying conditions. This fuse features a non-indicating design and a rejection feature for secure mounting in fuse holders.

• Amperage: 35A
• Voltage Rating: 250VAC/125VDC
• Interrupting Rating: 200kA at 250VAC / 20kA at 125VDC

Product Highlights

This fuse is ideal for protecting electrical circuits from excessive current and can be used in a variety of applications.

Product Information

Standard Information

• Brand: EATON BUSSMANN
• MPN: FRN-R-35

Technical Specifications

• Amperage Rating: 35A
• Voltage Rating: 250VAC/125VDC
• Class: RK5
• Element: Dual
• Time Delay: Yes
• Interrupting Rating: 200/20kA
• Body Type: Cylindrical
• Body Material: Fiberglass
• Mounting Type: Holder
• Terminal Type: Ferrule
• Indicating/Non-Indicating: Non-Indicating
• Rejection/Non-Rejection: Rejection
• Response Time: 10s
• UL Listed: Class RK-5, Guide JDDZ, File E4273
• CSA Certified: C22.2 No. 248.12, Class 1422-01, File 53787
• Body Size: 0.81 inches Diameter x 3 inches Length
