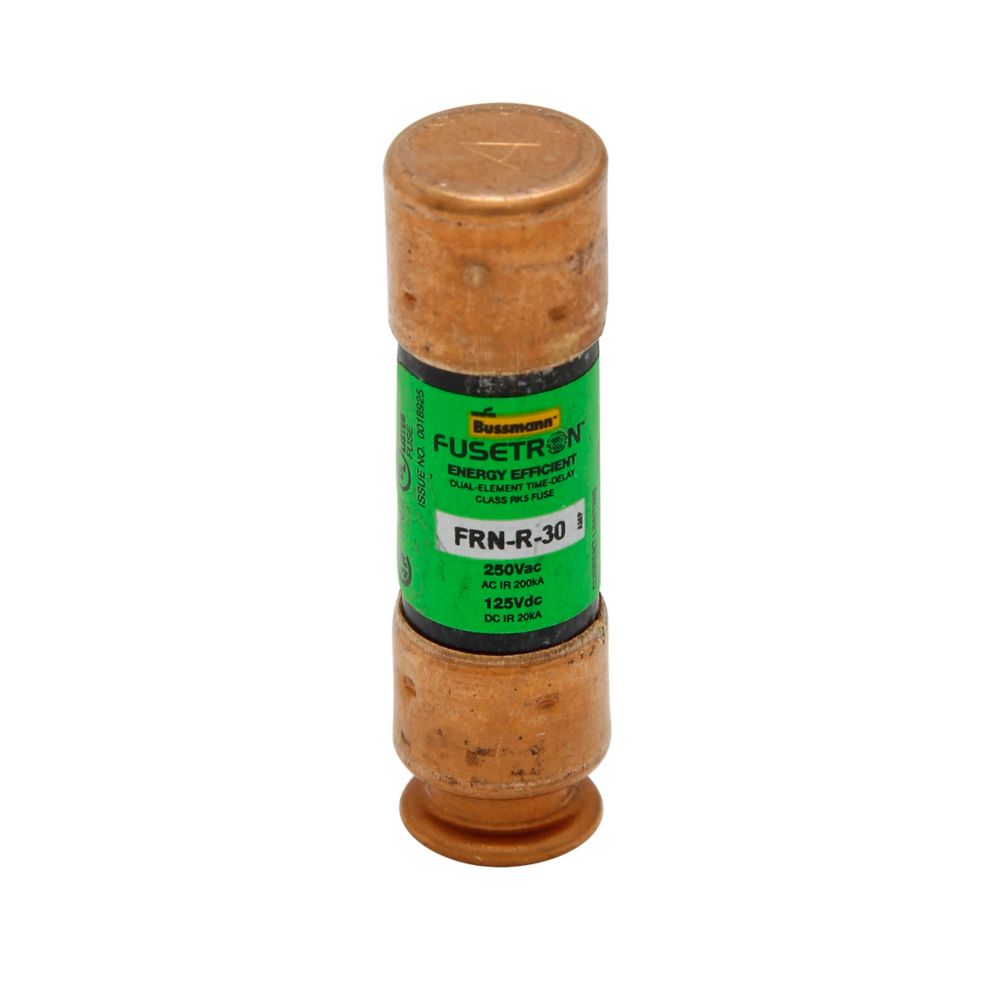

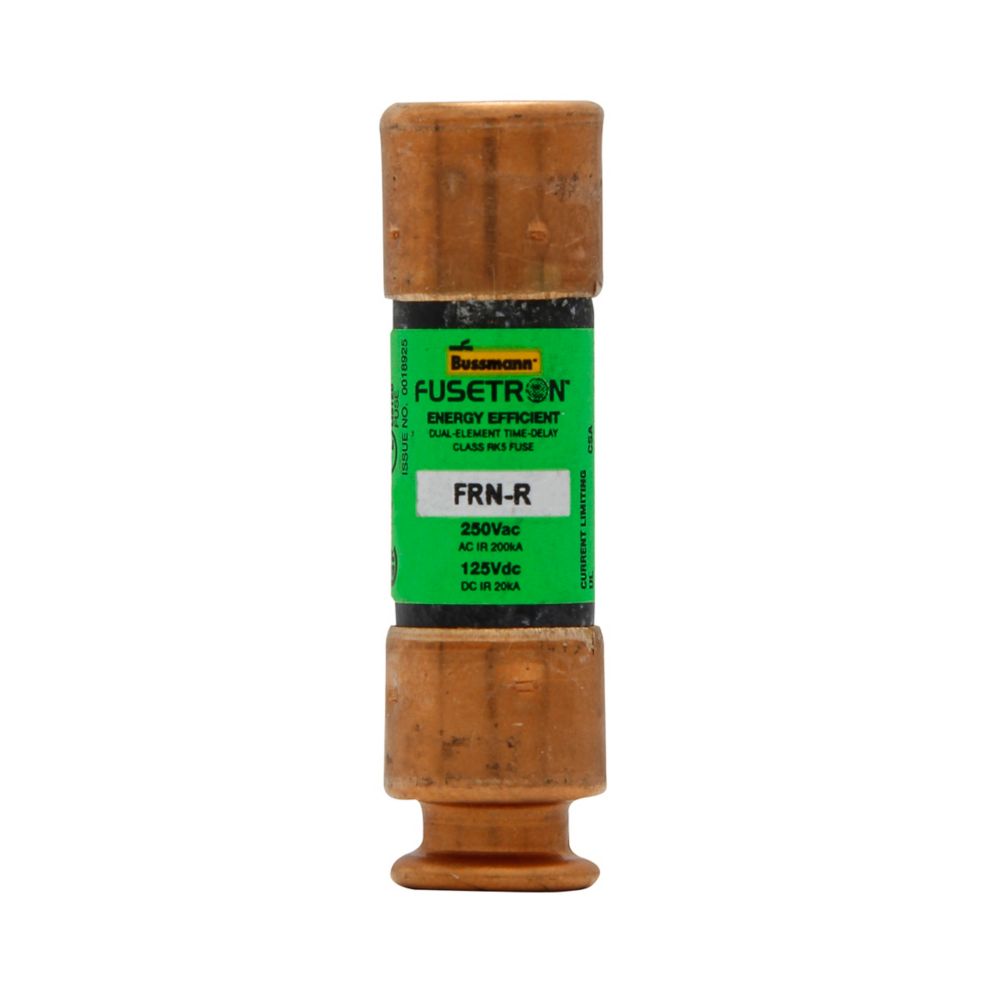

EATON BUSSMANN FRN-R-30 Class RK5 Fuse

Product Description

The EATON BUSSMANN FRN-R-30 is a Class RK5, time-delay dual-element fuse designed for advanced overcurrent protection. This fuse limits current effectively and has an interrupting rating of 200 kA at 250 Vac and 20 kA at 125 Vdc. Its time delay is a minimum of 10 seconds at 500% of the rated current, ensuring reliable performance in critical situations.

• Class RK5, time-delay fuse
• Interrupting rating: 200 kA at 250 Vac
• Provides a time delay of 10 seconds at 500% rated current

Product Highlights

This fuse is suitable for various applications requiring robust protection against overcurrent events.

Product Information

Standard Information

• Manufacturer: Bussmann
• Part Number: FRN-R-30

Technical Specifications

• Current Rating: 30 AMPERE
• Voltage Rating: 250 VAC / 125 VDC
• Fuse Class: RK5
• Interrupting Rating: 200000 AMPERE (symmetrical), 20000 AMPERE (DC)
• Characteristic: 10 SEC time delay (at 500 percent rated load), dual element
• Terminal Type: Ferrule
• Approval: UL 248-12, CSA, CE
• Diameter: 0.56 inches
• Length: 2 inches
• Additional Information: Current limiting
