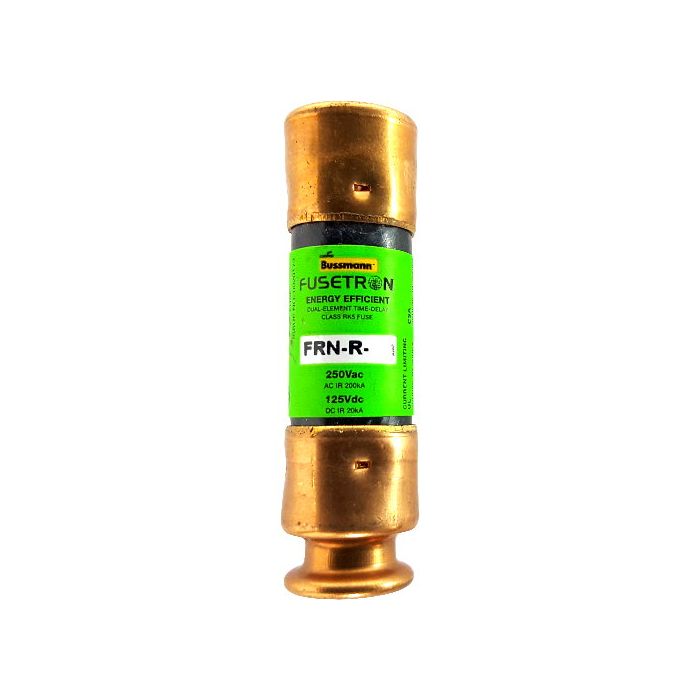

EATON BUSSMANN FRN-R-20 Fuse 20A 250V Class RK5

Product Description

The Eaton Bussmann FRN-R-20 is a reliable fuse designed for both AC and DC voltage applications. It features dual-element construction that allows for time delay, enabling it to handle temporary overloads without disrupting the circuit. This Class RK5 fuse is essential for protecting sensitive electrical equipment.

• Current limiting for enhanced protection.
• Rated for 20A and 250V AC or 125V DC.
• UL Listed and CSA Certified for safety compliance.

Product Highlights

The Eaton Bussmann FRN-R-20 is built for durability and performance in electrical systems.

Product Information

Standard Information

• Brand: Eaton Bussmann
• MPN: FRN-R-20

Technical Specifications

• Current Rating: 20A
• Voltage Rating: 250V AC / 125V DC
• Fuse Class: RK5
• Element: Dual
• Time Delay: Yes
• Interrupting Rating AC: 200,000 AIC at 250V AC
• Interrupting Rating DC: 20,000 at 125V DC
• Certifications: UL Listed, CSA Certified
• Application: Combination starters, motor control centers, machinery disconnects
• Response Time: Eight seconds at five hundred percent
• Shape: Rectangular
