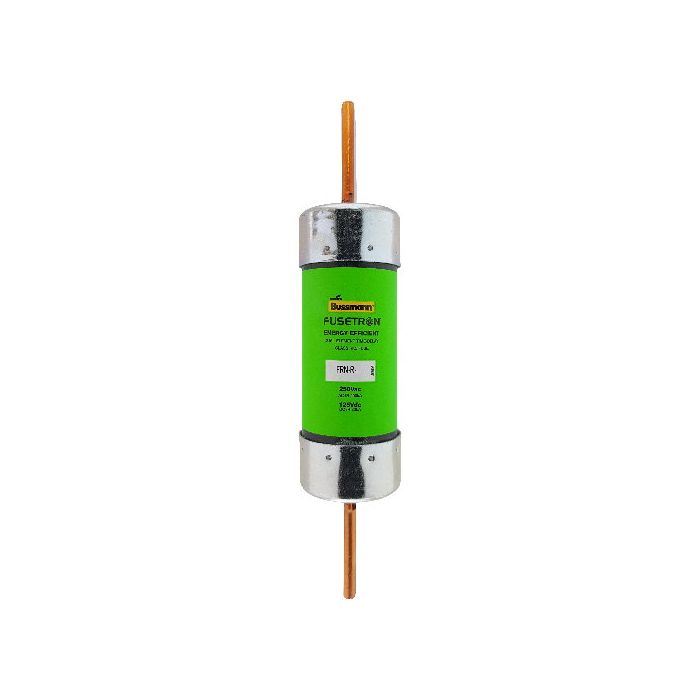

EATON BUSSMANN FRN-R-150 Class RK5 Fuse

Product Description

The EATON BUSSMANN FRN-R-150 is a Class RK5 fuse used for circuit protection. This fuse is a dual-element and time-delay component with a current rating of one hundred fifty amps and a voltage rating of two hundred fifty VAC. It is UL Listed and CSA Certified for performance in various applications. It also has an interrupting rating of two hundred thousand AIC at two hundred fifty VAC and twenty thousand at one hundred twenty-five VDC.

• Current rating of 150 Amps.
• Voltage rating of 250 Volts AC and 125 Volts DC.
• Time-delay functionality provided.

Product Highlights

This fuse ensures reliable circuit protection and is suitable for various industrial applications.

Product Information

Standard Information

• Fuse Class: RK5
• Element: Dual

Technical Specifications

• Current Rating: 150 A
• Voltage Rating: 250 VAC
• DC Voltage Rating: 125 VDC
• Time Delay: Yes
• Size: 1.56 x 7.13 inches
• Interrupting Rating @ 250 VAC: 200,000 AIC
• Interrupting Rating @ 125 VDC: 20,000 A
• UL Listed: Class RK-5, Guide JDDZ, File E4273
• CSA Certified: C22.2 No. 248.12, Class 1422-01, File 53787
