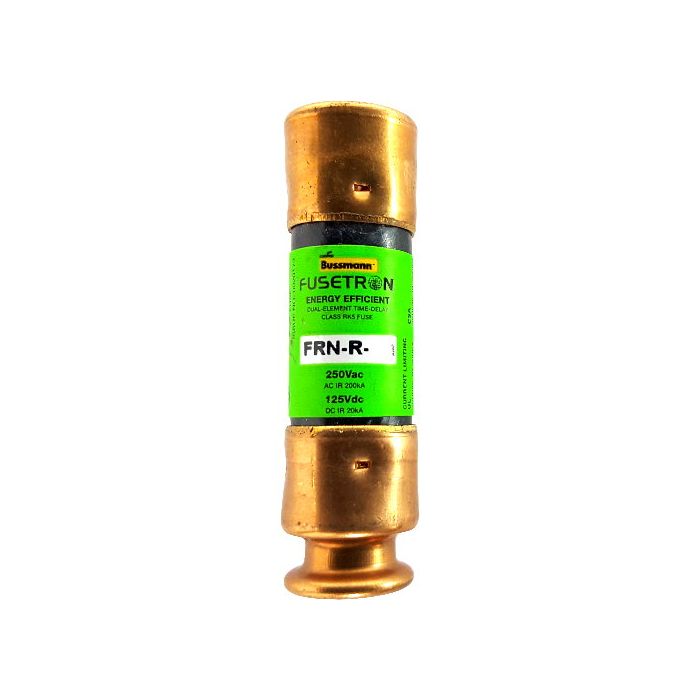

EATON BUSSMANN FRN-R-15 Fuse 15A 250V Class RK5

Product Description

The EATON BUSSMANN FRN-R-15 is a fuse rated for 15 amperes and designed for 250 volts in AC systems. This Class RK5 fuse features a dual-element design with time-delay functionality, providing reliable overload and short-circuit protection in electrical circuits. It is suitable for a variety of applications where safety and reliability are necessary.

• Amperage: 15A
• Voltage rating: 250V AC, 125V DC
• Interrupting rating: 200,000 AIC at 250 VAC

Product Highlights

Use this fuse in residential and commercial electrical systems for effective protection against overloads and short circuits.

Product Information

Standard Information

• Brand: EATON BUSSMANN
• MPN: FRN-R-15

Technical Specifications

• Amps: 15
• AC Voltage Rating: 250
• UL Class: RK5
• Element: Dual
• Time Delay: Yes
• Physical Size: 0.56 x 2 inches
• Interrupting Rating (VAC): 200,000 AIC @ 250 VAC
• DC Voltage Rating: 125
• Interrupting Rating (VDC): 20,000 @ 125 VDC
• UL Listed: Yes, Class RK-5
• CSA Certified: Yes
